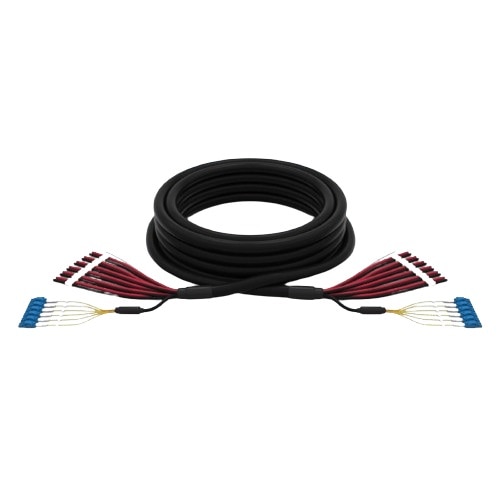

ViaPhoton Outdoor Hybrid Fiber Trunk, 24 Fibers, Singlemode, 12x 10AWG, LCULCU, End 1 32" breakout, End 2 24" breakout
US$2,280.24 to US$6,155.58Select options
- SKU: OHFT-24SM1210-LCULCU-232224
- Manufacturer: ViaPhoton
- Data Sheet: Download
Product Information
ViaPhoton OHFT-24SM1210-LCULCU-232224
Outdoor Hybrid Fiber Trunk, 24 Fibers, Singlemode, 12x 10AWG, LCULCU, End 1 32" breakout, End 2 24" breakout
Specifications
Specifications OHFT-24SM1210-LCULCU-232224
| Dimension | 36" x 31" x 41" |
| Configuration | |
| Fiber Type | single-mode (G.657.A2) |
| Total Quantity | 24 |
| End 1 Connector | LC duplex uniboot / UPC |
| End 2 Connector | LC duplex uniboot / UPC |
| End 1 Breakout OD | 2 mm (0.08 in) |
| End 1 Breakout Length | 813 mm (32 in) |
| End 2 Breakout OD | 2 mm (0.08 in) |
| End 2 Breakout Length | 610 mm (24 in) |
| Optical Loss, | 0.5 dB @ 1310 nm |
| Cable (dB/km), max | 0.5 dB @ 1550 nm |
| Insertion Loss, | ≤ 0.10 (typical) |
| LC/UPC Connector (dB) 1310/1550nm | 0.30 (max) |
| Return Loss, LC/UPC Connector (dB) | 50 dB (typical) |
| Performance | |
| Number of DC Conductors | 12 / red, black |
| Conductor Type | 10 AWG |
| Ground Wire | 10 AWG |
| Dimensions | |
| Diameter Over Jacket | 25.4 mm (1.0 in) |
| Bend Radius (OD x 10) | 254.5 mm (10 in) |
| Cable Weight | 1.12 kg/m (0.75 lbs/ft) |
| Cable Shield | copper |
| Cable Jacket | PVC, black |
| UV Resistance | yes |
| Flame Performance | TC-OF / THHN / THWN-2 |
| Environmental | |
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
| Storage Temperature | -40°C to +80°C (-40°F to +176°F) |
| Installation Temperature | -10°C to +65°C (14°F to +149°F) |
