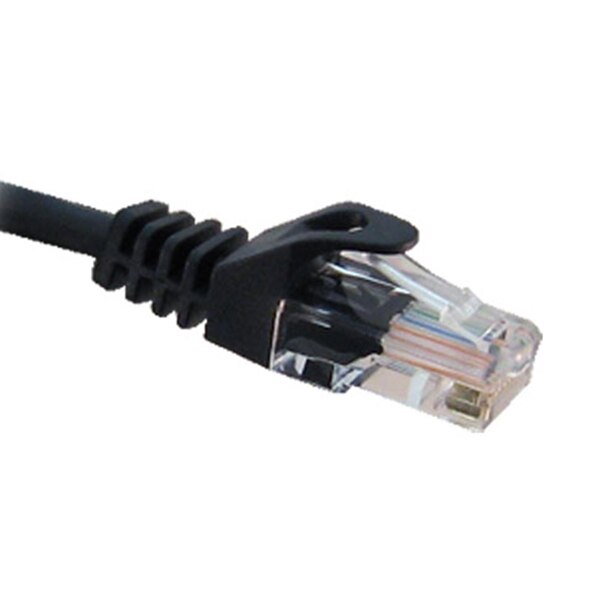

Primus Cable Cat 5e 1 Foot Ethernet Patch Cable, Molded Snagless Boot, (Black)

(0)No Reviews yet
  • SKU: CAT5E-1BLK
  • Manufacturer: Primus Cable
  • Data Sheet: Download

Product Information

Cat 5e 1 Foot Ethernet Patch Cable, Molded Snagless Boot, (Black)

This CAT 5E Patch Cable is the perfect fit for indoor applications. This cable is made with 8 stranded copper conductors (4-Pairs) with a durable jacket in multiple colors. The ends are made with a molded snag-less boot design and terminated with high-quality RJ45 connectors featuring 50 Micron gold-plated contacts. Our Category 5E Patch Cables are designed for indoor LAN applications, making it the ideal solution for indoor installation that require the cable to be installed in walls or any other non-plenum areas. This cable is also tested to speeds of 350MHz.

Applications

  • 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
  • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
  • 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
  • T1 Voice

Cable Features

  • Speeds up to 350MHz
  • Meets or Exceeds CAT5E T568C.2 Standards
  • Molded Strain-Relief Boot Design
  • Available in Multiple Colors
  • Available in Multiple Lengths
  • PoE and PoE+ Ready
  • Backwards Compatible to Category 5e, 5

Compliance

  • ANSI/TIA-568-C.2 Category 5E
  • PVC Jacket
  • CMX Rated
  • RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC

Electrical Test

  • 100% open short & miss wire test
  • Insulator Resistance: DC300V 10 Mohm min.
  • Connector Resistance: 2 ohm max.

Specifications

Technical Specification:

  • Test: 100% open short & miss wire test
  • Insulation Resistance: DC 300V 3MΩ
  • Contactor Resistance: 3Ω
  • Cable: CAT5E 7/0 19*4P
  • Jacket: PVC
  • PVC: 75A PVC UL 80°C
  • OD: 5.4 ± 0.2mm
  • 8P8C Plug: RJ45 8P8C Plug, CAT5E, Gold Plated Pin, Circle Type

Physical Characteristics:

Conductor Size24AWG
Conductor MaterialStranded Bare Copper
Number of Conductors8 Conductors
Number of Pairs4 Pairs
Outer Jacket MaterialPVC (Complies RoHS)
Contact MaterialCopper
Contact PlatingGold Plated
