9Dot Dual-Radio, Dual-Band 802.11AC (2x2) Indoor AP
- SKU: NCORE-BASE
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information
9Dot NCORE-BASE
Dual-Radio, Dual-Band 802.11AC (2x2) Indoor AP

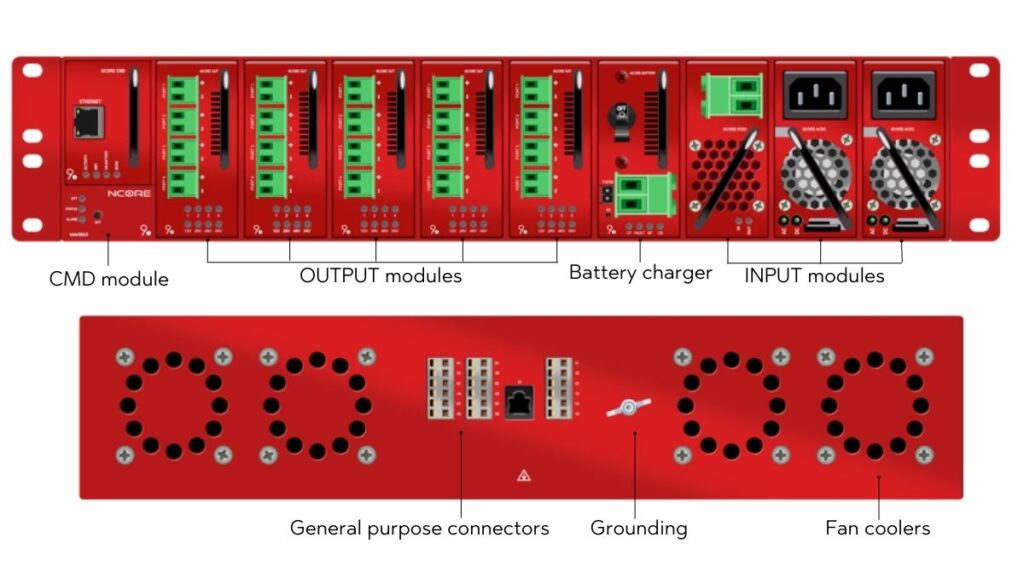

9dot Presents NCore: a new energy station of the Active Power Stations family, is a completely modular 2U and at the same time compact solution for standard Rack 19 ″.
The device simultaneously operates in Reactive and Proactive modes, ensuring efficiency, protection and reliability.
Active Power Station
The system simultaneously operates in Reactive and Proactive modes ensuring efficiency, protection and reliability.
Instant online
External battery that is not always in online mode has the capacity of super-fast switch on, at the same time providing auto charge/discharge thus maximizing battery life.
Ideal Current Flow
Voltage drop is minimized by the use of extremely low resistance MOSFETs and Ideal Diodes.
Dynamic Charge
The system uses the software selected charge current or switches to a lower current in case devices connected to the NCore need more power.
Priority Loads
Every port has its own priority index, if necessary the system switches off ports with low priority ensuring power on Always-ON devices port. Even the battery has its own priority…
Variable output voltage
Adjustable (ADJ) Output modules have output voltage 29V, 48V or 54V selected via web interface. Regular modules with12V and 24V Output modules are also available.
Reactive mode
Load disconnection maximizing global reliability.
Proactive mode
Load disconnection maximizing autonomy for Always-ON ports.
Battery life simulation
It is possible to schedule periodic complete external battery charge /discharge cycles in order to calculate precisely the remaining battery life, autonomy and battery efficiency.
Specifications
Specifications NCORE-BASE
Ports | 20 Output |
Typ Load | 2400 Watt |
Charger | 10 Ampere |
Selectable | OUT Voltage |
System | 2 Priority |
