Ubiquiti airFiber NxN Scalable MIMO Multiplexer 4x4 MIMO
Ubiquiti Networks AF-MPx4
airFiber NxN Scalable MIMO Multiplexer 4x4 MIMO
Introducing the airFiber NxN, a thoughtfully engineered MIMO multiplexer that increases the amazing throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas.

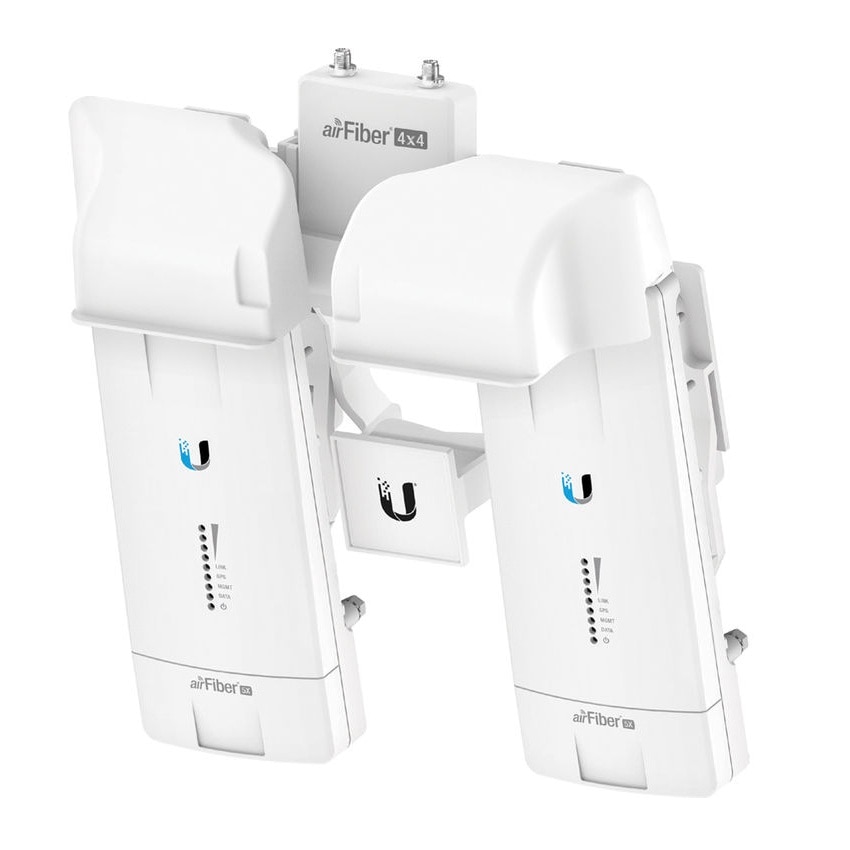

The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber 5X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit throughput.

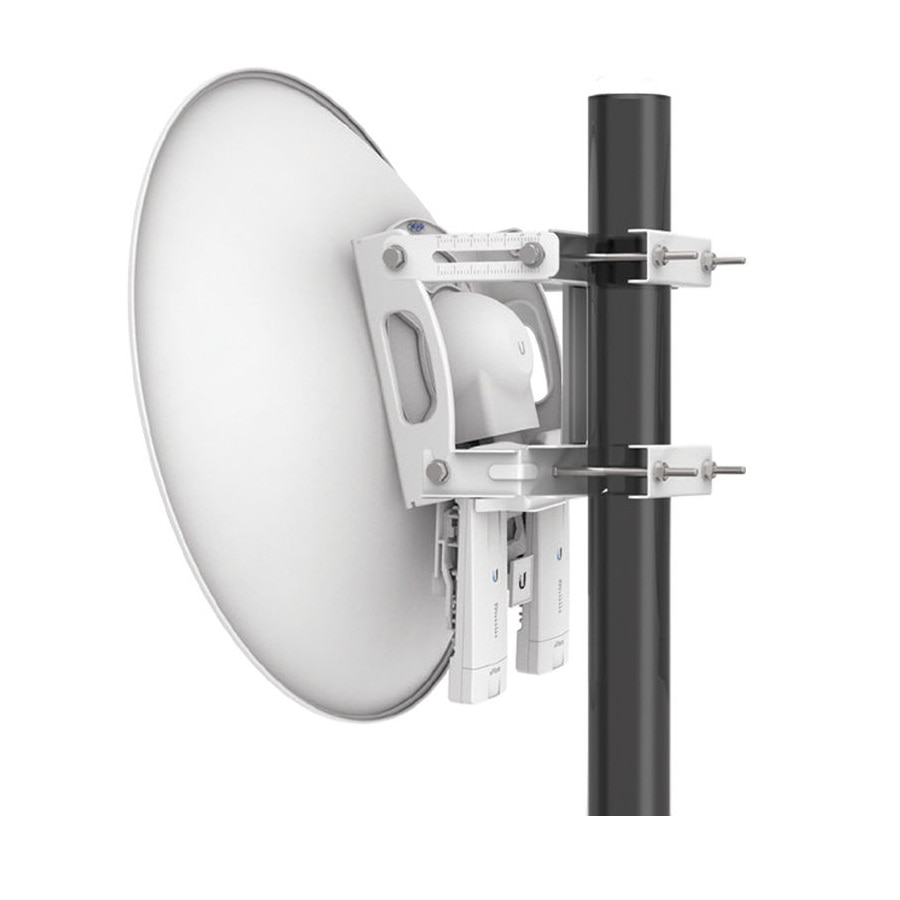

Upgrading a 5 GHz airMAX® or airFiber link is fast and easy. Simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables.

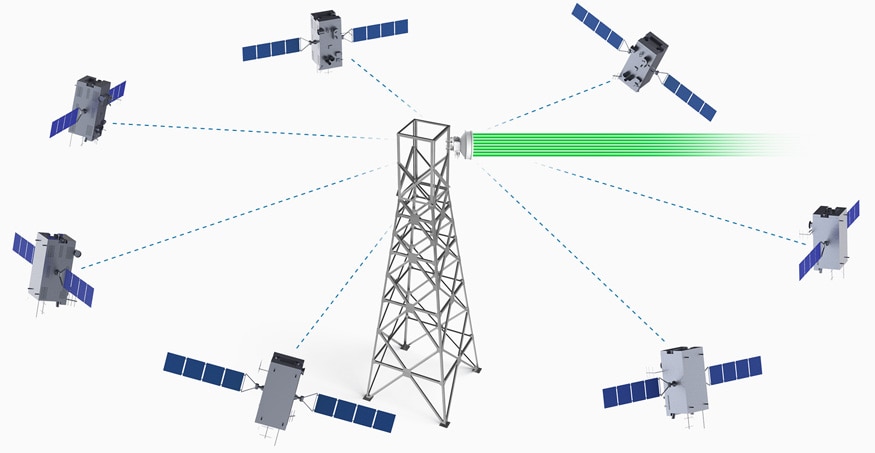

Precise GPS Synchronization
Using a common GPS timing reference, the airFiber X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.

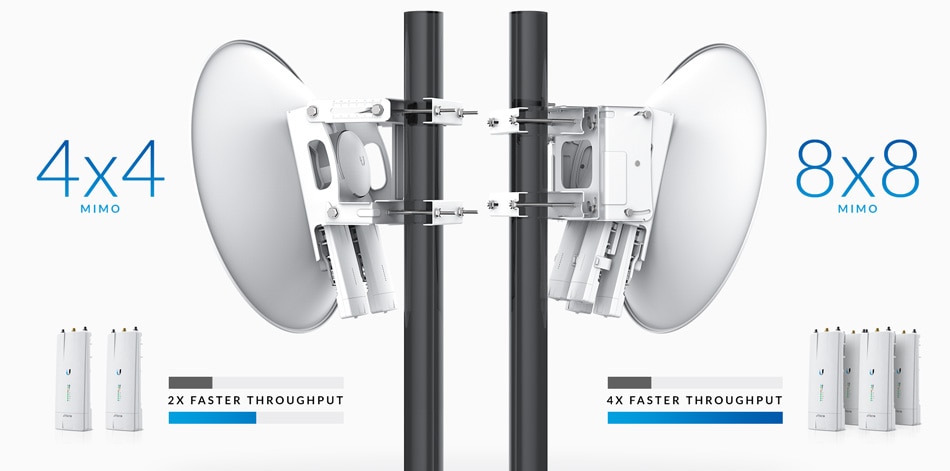

4x4 MIMO Backhaul Technology
Quickly mount multiple airFiber X radios on existing airFiber dish antennas for Plug and Play installation. You can use radio channels of different sizes – even adjacent channels with no guard band – and place them anywhere within the radio band.
Reduced Tower Costs
Multiple airFiber 5X radios mounted on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimizing tower costs. For instance, the AF-8x8 consolidates four airFiber 5X dish antennas into one dish, or replaces up to 8+ non-airFiber link.

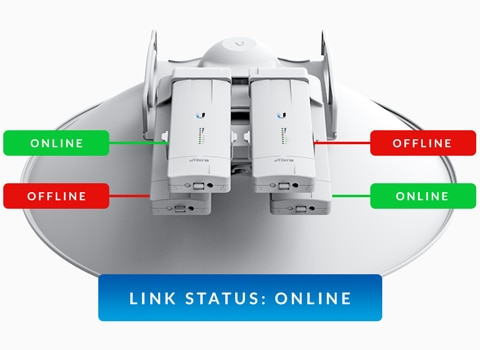

Multiple airFiber X radios with multiple carriers on multiple frequency bands provide the ultimate noise immunity and link redundancy performance.

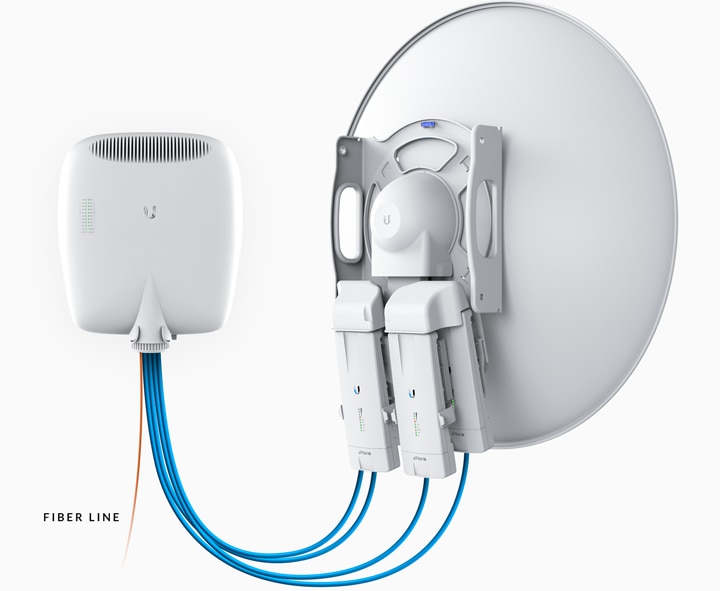

Paired with the EdgePoint for Superior Performance
The EdgePoint provides link aggregation and powerful configuration features, including radio-link load balancing and advanced reliability for optical fiber deployments. The tower-mounted EdgePoint also simplifies the deployment by providing power to the airFiber 5X radios, so there is no need for individual PoE adapters and additional cabling.
|Redundant link||Up to 1|
|Aggregate throughput||1+ Gbps|
|Dimensions||197.5 x 240.0 x 103.2 mm (7.78 x 9.48 x 4.06")|
|Weight||0.4 kg (0.8 lb)|
|RF Connectors||(2) RP-SMA Weatherproof (CH0, CH1) ; (4) RP-SMA Weatherproof (A0, A1, B0, B1)|
|Cable Loss||4.1 dB|
|Supported airFiber X Radio||AF-5X|
|Multiplex MIMO||2 x (2x2)|
|Mounting||airFiber X/Rocket Mount Compatible|
