ALGcom 4.9-6.425 GHz Connect Radios with N5-5X Twist-on Interface to connectorized antennas
US$59.00
- SKU: ADAPT-MIM5X-SMAFR
- Manufacturer: ALGcom
- Data Sheet: Download
Product Information

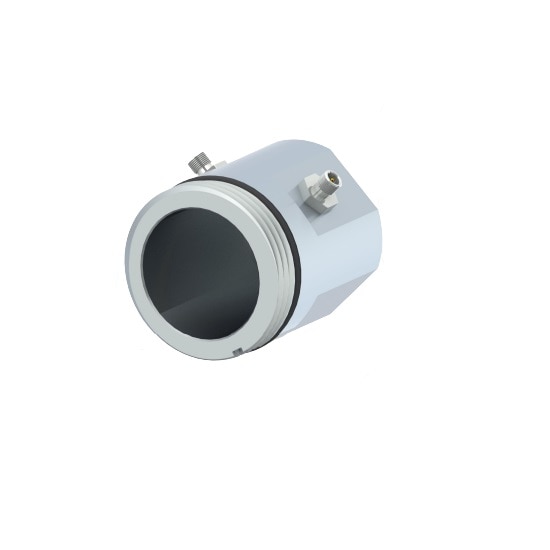

ALGcom ADAPT-MIM5X-SMAFR
4.9-6.425 GHz Connect Radios with N5-5X Twist-on Interface to connectorized radios
Specifications
Specifications ADAPT-MIM5X-SMAFR
| Frequency range | 4.9-6.425 GHz |
| VSWR | <1.6:1 (max) |
| Port-to-Port Isolation | <15dB |
| Transmission Loss | 0.5 dB |
| Thread | Male (Mounts on the Radio) |
| Connector | SMA Female reverse |
| Package | 100mmx100mmx100mm - 0,3 kg 3.93"x3.93"x3.93" - 0.66 lbs |
