ALGcom DC UPS 48V 5A

(0)No Reviews yet
8 in stock
College Station
8 In stock

Product Information

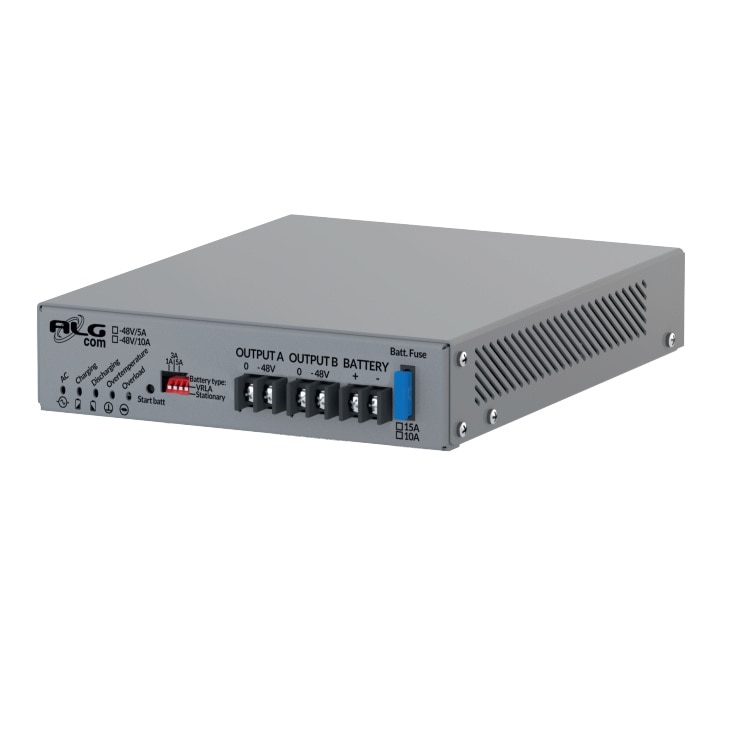

ALGcom FN-4800-05-ST

DC UPS 48V 5A 5Ah Maximum for Battery Charger

ALGcom DC UPS line is designed to protect your equipment against surges and faults, ensuring excellent performance and preventing your equipment from potential problems in the field

COMPACT AND EASY TO INSTALL

The ALGcom DC UPS Line was thought to meet 1U Design standards. Taking up little space, with possibility of installation in vertical and horizontal, the ALGcom DC UPS is performance and efficiency guarantee in telecom.

BATTERIES CHARGER

Designed to work with lead acid batteries, the ALGcom Nobreak Sources feature a 3-stage charger, described below. An intelligent algorithm that runs on the source microprocessor controls the charger.

Stage 01-Bulk: Operates with constant current that can be programmed in 1A, 2A or 3A, allowing gradual and controlled charging of the batteries. When they reach full charge, the charger goes to the next stage.

Stage 02-Absorption: At this stage,the charger applies a constant voltage in order to equalize the voltage of each cell of the battery. In this way, the effect of premature sulfating of the plates is minimized, promoting an increase in the battery charge capacity and, consequently, its lifespan. Once the equalization occurs, the charger switches to the next stage.

Stage 03-Float: This is the final stage of the battery charging process, where a constant fluctuating voltage is applied in order to cancel the self-discharge effect, allowing the battery to remain in its best state of charge for a long period.

Specifications

Specifications FN-4800-05-ST

Frequency50/60GHz
Rated Voltage Range48V
V Ac/Dc Upss Efficiency>92%
Power Factor>0.95
Total Harmonic Distortion Current (Thdi)<10%
Electric Shock ProtectionClass I
Output Power270W/5A
Operating Temperature-10°C to 50°C
Forced Ventilation2 Internal Fan
Weight4.28 lbs
Dimension1.77" H x 7.32" W x 9.06" D
