ALGcom 4.9 - 5.9 GHz 30.1dBi 0.6 m | 2ft Dish Antennas
- SKU: PA-5800-29-06-DP
- Manufacturer: ALGcom
- Data Sheet: Download
Product Information
ALGcom PA-5800-29-06-DP

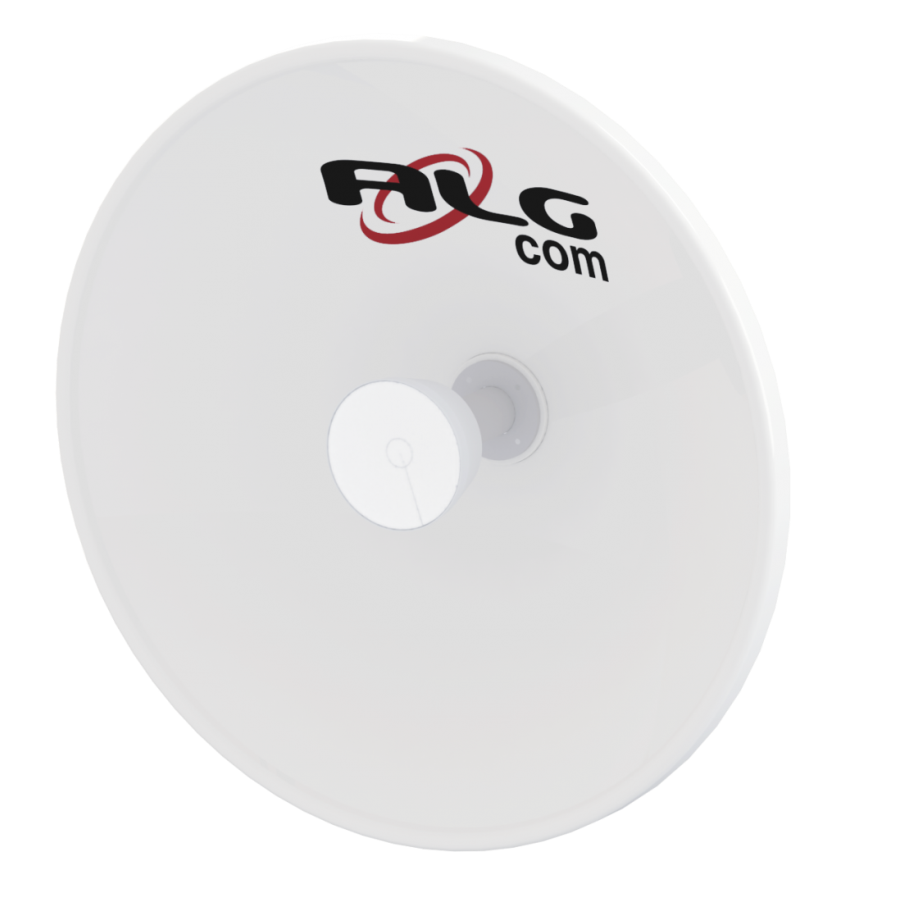

4.9 - 5.9 GHz 30.1dBi 0.6 m | 2ft Dish Antennas
ALGcom Dish Atennas were designed with latest generation technology to ensure the best unlicensed frequency links.

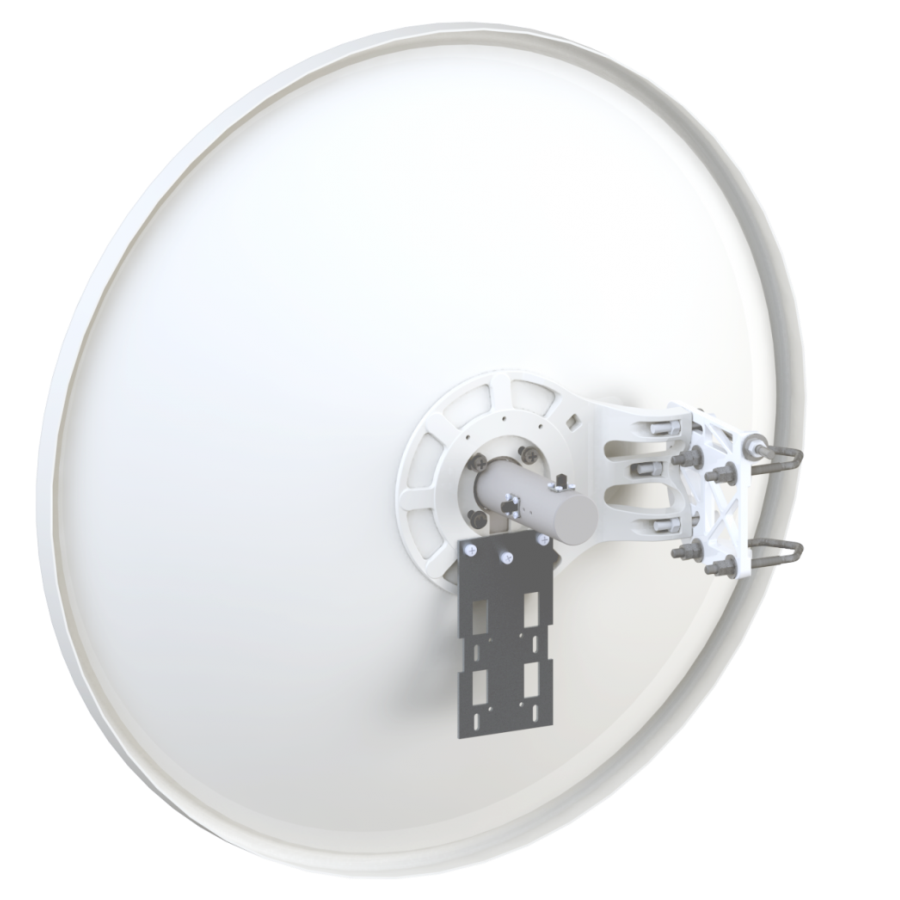

They are used on point-to-point wireless links and have standard fitting for coupling the ALGcom Armored Boxes, in addition to having a support that allows for the easy link alignment.
EXCELLENT BANDWIDTH
ALGcom Dish Antennas has an excellent Bandwidth (4.9 - 5.875 GHz) giving more Flexibility in the radio configuration to point-to-point links.
Features:
- 100% Aluminum Structure.
- VSWR and isolation 100% verified. Technical report is included.
- Projects are designed with computational tools that allows ALGcom to optimize the radiation efficiency and evaluate the mechanical structure.
- All models approved by Anatel 3 years warranty
Specifications
Specifications PA-5800-29-06-DP
| Weight | 9.04 lbs |
| Dimension | 10.51" H x 27.36" W x 7.72" D |
| LINK | Point to Point |
| FREQUENCY | 4.9 - 5.875 GHz |
| PTP DISTANCE | Up to 30 km |
| DIAMETER | 0.6 m | 2ft |
| GAIN | 30.1 dBI |
| FRONT RELATION | 48 dB |
| POWER HALF ANGLE | 6.2° |
| Cross Isolation Polarization | >20db |
| POLARIZATION | Dual (V & H) |
| CONNECTION | SMA reverse female |
| WARRANTY | 3 Years |
