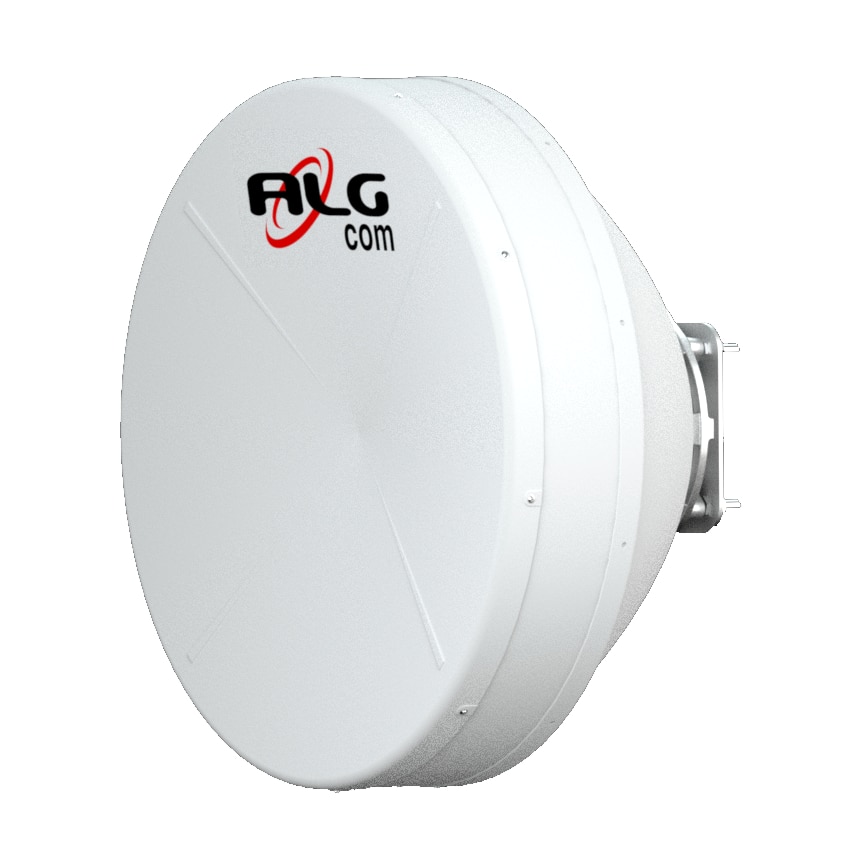

ALGcom PS-10900-34-06-DP-UHP UBNT 11FX
- SKU: PS-10900-34-06-DP UBNT 11FX
- Manufacturer: ALGcom
- Data Sheet: Download
Product Information
ALGcom PS-10900-34-06-DP-UHP UBNT 11FX
Microwave antennas were designed to ensure the best performance in data transmission.They are used for Point-to-Point links on licensed frequencies and have direct coupling or through wave guide.
Excellent Shielding
ALG com Microwave Antennas have excellent noise immunity thanks to their side shielding. Check below the radiation diagrams of each of the models.
ALG com Microwave Antennas are designed using electromagnetic simulation and structural calculation softwares, providing the best structural performance, reducing the weight and improving the product life span. In all ALGcom products are used sophisticated calculation methods and state of the art tools. The values identified as wind forces are the result of several fluid dynamics simulations made with numerical analysis software and aerodynamic property calculations. The patterns determine resistance and wind forces coefficients that act on the antenna, leading a load to the mounting pipe. This load can be divided in an axial force, a lateral force and a torsion moment. Aspects like the shape of antenna, radome, and reflectors are taken into account too
Features:
- Licensed frequency 11 GHz
- Performance irradiation with excellent noise immunity
- Robust mounting hardware and easy link alignment
Specifications
Specifications PS-10900-34-06-DP-UHP UBNT 11FX
| Cross Polarization Insulation | > 35 dB |
| Diameter | 0.6 m | 2ft |
| Polarization | Simple (V and H) and Double (V and H) |
| Gain | 34.9 dBi |
| Connection | Customizable |
| Power Half Angle | 3 degree |
| Weight | 12.2 kg, 26.89 lb |
| Frequency | 10 GHz |
| Front-To-Back Ratio | >55 dB |
| Link | Point-to-Point |
| Operating Frequency | 10 - 11.7 GHz |
| Warranty | 3 YEARS |
