  • APC Smart-UPS 1000VA Rack Mount, LCD 120V with SmartConnect Port

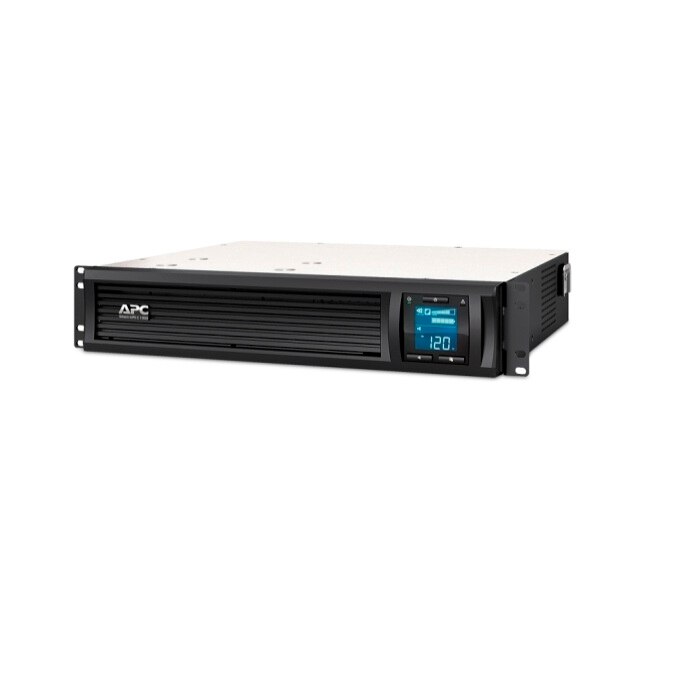

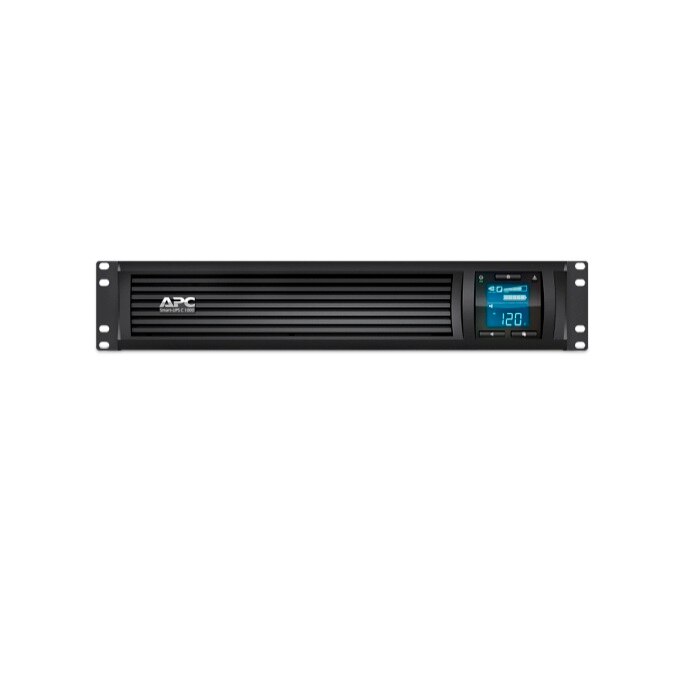

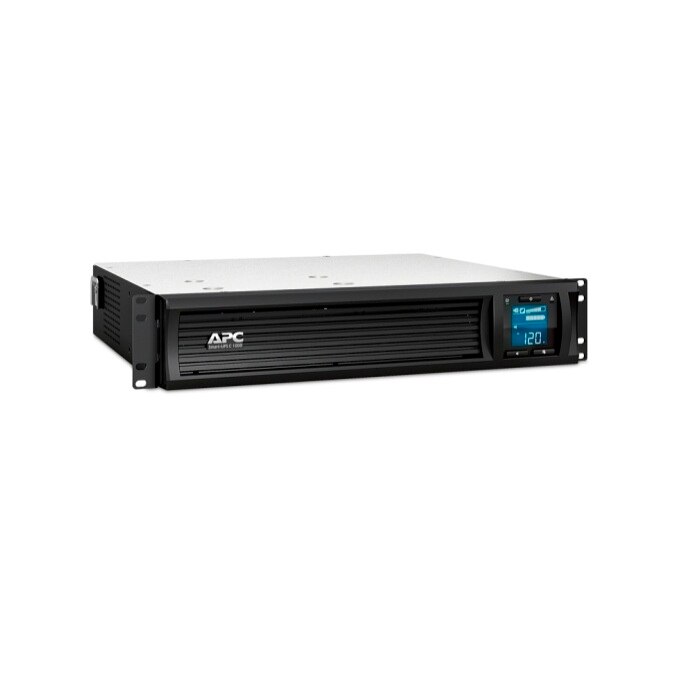

APC Smart-UPS 1000VA Rack Mount, LCD 120V with SmartConnect Port

  • SKU: SMC1000-2UC
  • Manufacturer: APC
  • Data Sheet: Download
  • Availability: 4 In Stock    (updated live)
US$‎519.00

Specifications SMC1000-2UC

Output
Output power capacity 600 Watts / 1.0kVA
Max Configurable Power (Watts) 600 Watts / 1.0kVA
Nominal Output Voltage 120V
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 110, 125
Topology Line interactive
Waveform type Sine wave

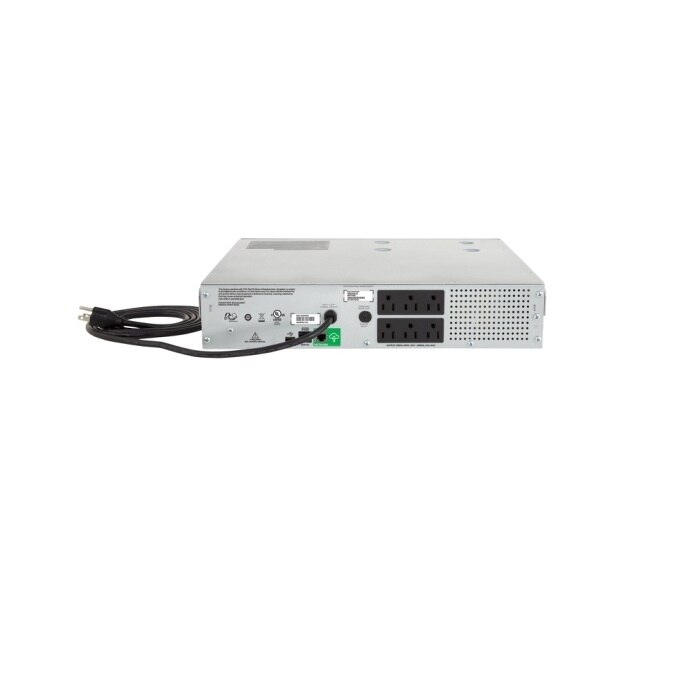

Output Connections (6) NEMA 5-15R
Transfer Time 6 ms typical : 10 ms maximum
Input
Nominal Input Voltage 120V
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input Connections NEMA 5-15P
Cord Length 8ft (2.4meters)
Input voltage range for main operations 85 - 136 Adjustable, 93 - 130V
Number of Power Cords 1
Other Input Voltages 110, 125
Batteries & Runtime
Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery APCRBC124
Expected Battery Life (years) 4 - 6
RBC Quantity 1
Battery Charge Power (Watts) 72 Watts
Battery Volt-Amp-Hour Capacity 216
Communications & Management
Interface Port(s) RJ-45 Serial, USB
Control panel Multifunction LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating 680Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Size3.39" L x 17.1" W x 18.78" H
Rack Height 2U
Net Weight 58.42 lbs.
Color Black
Units per Pallet 16.0
Environmental
Operating Temperature 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 10000ft (0 - 3048meters)
Storage Temperature -15 - 45 °C
Storage Elevation 0 - 50000ft (0 - 15240meters)
Audible noise at 1 meter from surface of unit41.0dBA
Online thermal dissipation 175.0BTU/hr
Conformance
Approvals CSA C22.2 No 107.1, CULus, ENERGY STAR V2.0 (USA), FCC part 15 class A, ICES-003, UL 1778
Equipment protection policy Lifetime : $150000
Standard warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant

APC SMC1000-2UC

Smart-UPS 1000VA Rack Mount, LCD 120V with SmartConnect Port

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.


  • Cold-start capable Provides temporary battery power when the utility power is out.
  • Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency Reduces utility costs, generates less heat.
  • LCD Status Display Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
  • Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • SmartConnect Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Adaptability

  • Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Availability

  • Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.v
  • Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Disconnected battery notification Warns when a battery is not available to provide backup power.

Manageability

  • USB connectivity Provides management of the UPS via a USB port (not available on all models).
  • Serial connectivity Provides management of the UPS via a serial port.
  • Network manageable Provides remote power management of the UPS over the network.
  • LED status indicators Quickly understand unit and power status with visual indicators.
  • Audible alarms Provides notification of changing utility power and UPS conditions.

Marketing features

Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Save time with easy and convenient remote accessibility Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Avoids costly power problems by keeping your IT equipment and data safe and available Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Smarter productivity with ability to tailor to your specific application needs Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Safety

  • Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Serviceability

  • Serviceability Predictive failure notification. Provides early-warning fault analysis ensuring proactive component replacement.
  • Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Resettable circuit breakers Enables a quick recovery from overload events.
