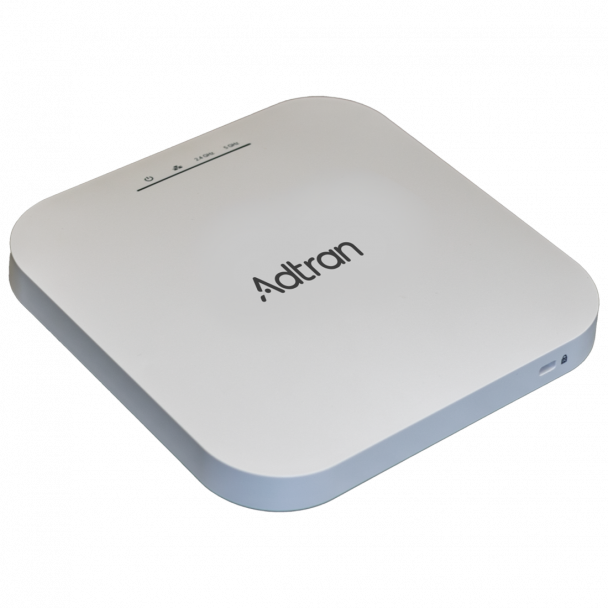

Adtran Bluesocket 6020 Dual Band Wi-Fi 6 Indoor Access Point
- SKU: 1700971F1
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
Adtran 1700971F1 ENTERPRISE WLAN
Bluesocket 6020 Dual Band Wi-Fi 6 Indoor Access Point
The Adtran Bluesocket 6020 indoor AP offers enterprise-grade performance and reliable coverage in high-density wireless environments such as indoor arenas, conference centers, libraries, and other high-traffic areas. It supports two transmit and two receive streams providing data rates up to 1.78 Gbps per AP. In addition, the Bluesocket 6020 includes four Multi-User MIMO (MU-MIMO) internal antennas with up to 5dBi peak gain and is fully functional when powered by an 802.3af PoE solution. Note: an on-premises or an Elite Cloud license is required.
Features:
- Enterprise-class Wi-Fi 6 (802.11ax) Indoor Access Point
- Full 2x2:2 SU & MU-MIMO Performance, Offering Aggregated Data Rates Up to 1.7 Gbps Per Radio
- Bi-Directional OFDMA Uses Air Resource for Access Points and Client Device Efficiency
- BSS Coloring Technology to Uniquely Distinguish Traffic for Higher Efficiency in Dense Deployments
- Built-in Powerful Qualcomm Quad-core CPU for Driving and Boosting Performance Effectively
- Fully Functional With 802.3af Power over Ethernet
- “Zero-touch” Deployments Automatically Discover vWLAN, and Download Firmware and Configurations
- Dynamic RF for Automatic Channel, TX Power, and Neighbor Discovery
- Provides Class of Service Levels for Prioritizing Multi-users and Multiservices
- Stateful Firewall at the Edge and WPA3 Encryption for Added Security
- Fully Compliant with Wi-Fi 6 Standards and Backwards Compatible With wave2/ac/a/b/g/n Client Devices
Specifications
Specifications 1700971F1
| Interfaces | ● 1 – 10/100/1000Mbps Base-T RJ-45 |
| Access Point Type | ● Indoor, Dual Radios Concurrent ● SU-MIMO z Two (2) 2.4GHz Spatial Stream and Two (2) 5GHz Spatial Streams Totaling 1.7 Gbps ● MU-MIMO ● MU-MIMO Allows Multiple Spatial Streams to be Allocated to Different Clients Simultaneously on Both Download and Upload Sides |
| Radio Frequency | ● 2.4GHz: 2400MHz ~ 2472MHz ● 5GHz: z 5150MHz ~ 5250MHz z 5250MHz ~ 5350MHz z 5470MHz ~ 5725MHz z 5725MHz ~ 5850MHz |
| Transmit Power (Maximum Value) | ● 2.4GHz: 22dBm ● 5GHz: 22dBm |
| Antenna | ● Internal Antenna (Peak Gain) ● Wi-Fi 2.4GHz and 5GHz : 3 dBi |
| Status LEDs | ● Power ● LAN ● 2.4GHz Radio ● 5GHz Radio |
| Security | ● WPA3 Open/OWE (Opportunistic Wireless Encryption) ● WPA/WPA2/WPA3-Personal ● WPA/WPA2/WPA3-Enterprise (802.1X) ● 802.1X Port-Based Authentication ● Open System (WEP-64/128) ● Shared System (WEP-64/128) ● EAP-TTLS ● WMM (802.11e) |
| Power | ● 802.3af Compliant ● Power Over Ethernet ● External 12V DC 1.5A ● Power Adapter Max ● Power: 11.9 Watts |
| Chassis | ● Plastic Enclosure ● Dimensions: 6.3 in. x 6.3 in. x 1.3 in. (16 cm x 16 cm x 33.2 cm) (H x W x D) ● Weight: <1 lbs. (.38 Kg) |
| Mounting | ● Wall/Ceiling Mount With Included Accessories ● Pole Mount With Included Accessories 9/16” and 15/16” T-Rail ● Junction Box Mounting Kit Sold Separately |
| Environmental | ● Operating Temperature: 32° to 104°F (0° to 40°C) ● Storage Temperature: -40° to 176°F (-40°C to 80°C) ● Relative Humidity: Up to 90% |
| Agency Approvals | ● Electrical/Safety Compliance z UL 1950 |
| Radio Approvals | FCC Part 15 B FCC Part 15.247 FCC Part E 15.407 FCC Part 15.107 FCC Part 15.109 |
| Warranty | ● Limited Lifetime Warranty |
