  • Adtran 10G Combo PON OLT Access Module Bundle with D2 Optics

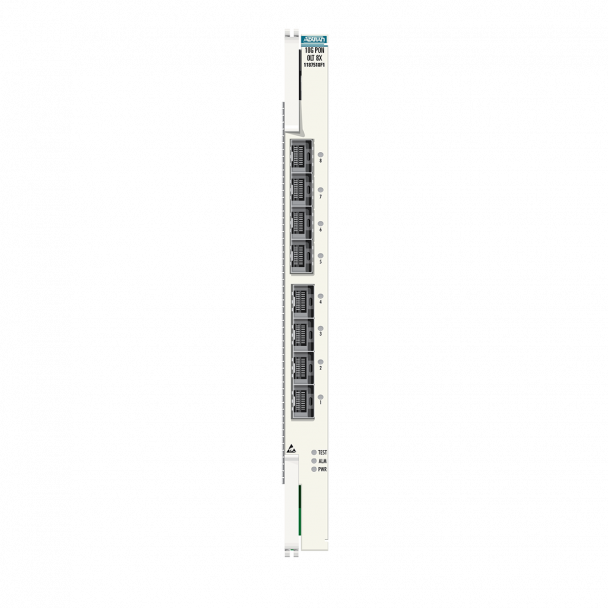

Adtran 10G Combo PON OLT Access Module Bundle with D2 Optics

(0)No Reviews yet
  • SKU: 4187518F32
  • Manufacturer: Adtran
  • Data Sheet: Download

Out of Stock

Ships direct from manufacturer

Product Information

Adtran 4187518F32 TA 5000

Total Access 5000 8-Port 10G Combo PON OLT Bundle with D2 Optics

The Adtran 10G Combo PON OLT module supports a flexible optics approach that allows for each of the eight ports to independently utilize multiple types of transceivers. This allows service providers the flexibility to determine the right technology (GPON or XGS-PON) for residential FTTH while also providing capacity for high-bandwidth business and mobile backhaul services. The module is compatible with the Total Access 5000 Series.



  • Extends FTTH Reach Up to 60 km Simplifying Broadband Expansion to Rural and Remote Locations
  • Extends Gigabit Service Coverage Area by 20% Increasing Revenue Potential
  • Supports Multi-gigabit Residential, Business and Mobile Backhaul Services
  • Simplifies Migration to XGS-PON with Zero Operational Impact, Additional Space, or Customer Disruption


Specifications 4187518F32

8 (16)* 10G Combo PON Ports Capable of Supporting: faces● GPON: B+, C+, C++, and D Class SFP Optics
● XGS-PON: N1 and N2 Class SFP+ Optics
● Combo PON: D1 and D2 Class SFP+ Optics
● *Supports Separate or Simultaneous GPON and XGS-PON Delivery Per Interface
ITU-T Compliant GPON and XGS-PON ODN Range Configuration Support (Optical Budget Dependent)● Standard: 20 km
● Extended: 37.5 km
● Maximum: 60 km
CapacitiesCapable of Up to 128 ONTs Per Combo PON Interface
Total Access 5000 23-inch Chassis21 Access Modules; Up to 21,000 Subscribers Per Chassis (Utilizing 1:128 split)
Total Access 5006+ ChassisSix Access Modules; Up to 6,000 Subscribers Per Chassis (Utilizing 1:128 split)
Total Access 5004 Global ChassisFour Access Modules; Up to 4,000 Subscribers Per Chassis (Utilizing 1:128 split)
Total Access 5004 Micro Cabinet2 Access Modules; Up to 2,000 Subscribers Per Chassis (Utilizing 1:128 split)
Management● Mosaic Software Suite
● Advanced Operational Environment (AOE)
● Remote Management Through SNMP, CLI, and Web-Service APIs (HTTPS)
● Ethernet Interface on SCM for Web and Telnet/SSH Access (In-Band or Out-of-Band)
● Craft and Ethernet Interfaces on SCM
● OMCI to ONTs
PhysicalDimensions: 9.5 in. x 0.75 in. x 9.0 in. (241 mm x 19 mm x 228 mm) (H x W x D)
Environmental● Operating Temperature: -40° F to 158° F (-40° C to +65° C) (With High-Flow Fan)
● Storage Temperature: -40° F to 185° F (-40° C to +85° C)
● Relative Humidity: Up to 95%, at 122° F (50° C), Non-Condensing
Regulatory Standards● Applicable UL/CUL Standards
● Applicable EN/IEC/AS/NZS Standards
● FCC Part 15 Class A
● CE Mark (Meets Applicable Safety, EMC, Energy Efficiency Directives)
● NEBS Level 3
