Adtran TA5000 Chassis Bundle Nx40GE/100GE (ANSI)
- SKU: 41875K20011F1HF
$42,600.00 $44,167.04
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
Adtran 41875K20011F1HF

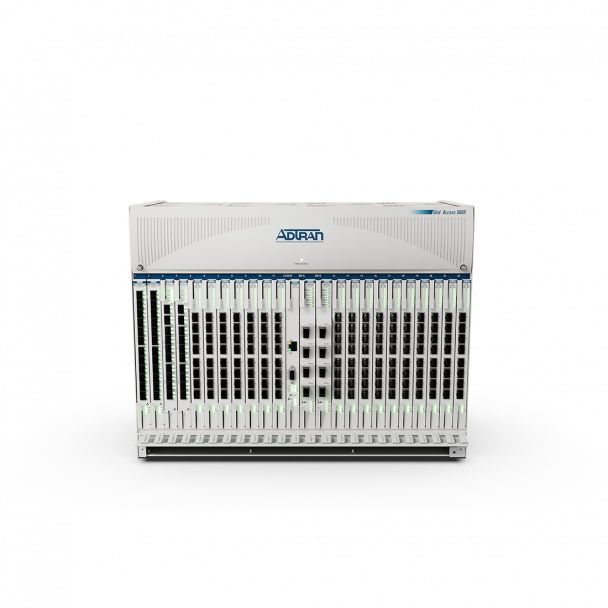

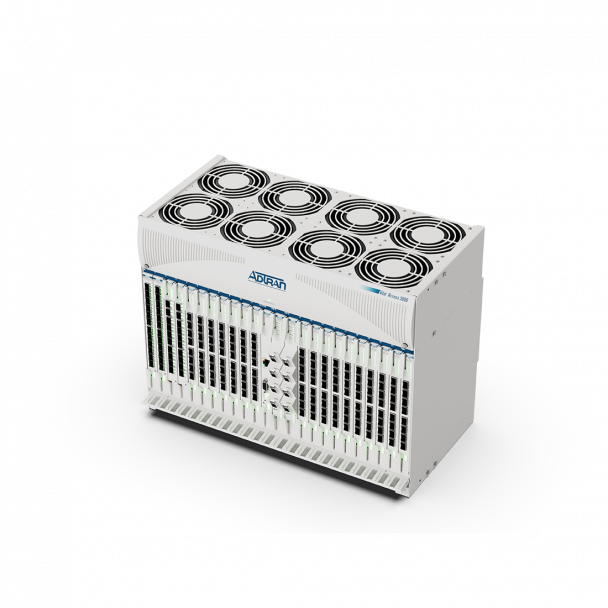

TA5000 Chassis Bundle Nx40GE/100GE (ANSI) Fiber Access, Aggregation, and Transport Platform
The Adtran Total Access 5000 is a carrier-class 10G Fiber Access and Aggregation platform. The chassis supports up to 21 temperature-hardened access module slots, with integrated Nx40/100GE support to each slot providing a comprehensive solution to launch and expand full-fiber networks.
Features:
- Non-blocking, Multi-Terabit Switching
- Environmentally Hardened For Cabinet Deployments
- Multiservice Support: GPON, XGS-PON, Combo PON, Active Ethernet, Carrier Ethernet, Triple-Play Services
- Scales Up to 21,000 Subscribers Per Chassis
Specifications
Specifications 41875K20011F1HF
| Interfaces | |
| Uplink (Switch Module dependent) | |
| SM40 | 4x1/2.5/10GE |
| SM200 | 2x100GE, 2x40GE (breakout mode enabled) |
| Management (System Controller Module) | ◆ Craft Serial Port: DB-9 Connector With RS-232 Interfaces ◆ Ethernet Port: 10/100Base-T |
| Craft Serial Port | DB-9 Connector With RS-232 Interfaces |
| Ethernet Port | 10/100Base-T |
| Applications and Services | ■ 10G FTTH for Gigabit and Multigigabit Broadband ■ Optical Networking Edge (ONE) for Premium (SLA) 10G Services, Aggregation, and Transport ■ Carrier Ethernet Services Over Any Medium |
| Physical | |
| Dimensions | 15.75 in. x 21.5 in. x 12.0 in. (400 mm x 546 mm x 305 mm) (H x W x D) |
| Weight | 9.5 kg 20.94 lb |
| Nine Rack-mountable Units | (9RU) |
| Management | ■ Mosaic Cloud Platform ■ Mosaic One ■ Advanced Operational Environment (AOE) ■ Remote Management Through SNMP, CLI, and WebService APIs (HTTPS) ■ Ethernet Interface on SCM for Web and Telnet/SSH Access (in-band or out-of-band) ■ Craft and Ethernet Interfaces on SCM |
| Environmental | |
| Operating Temperature | -40° F to +149° F (-40° C to +65° C) |
| Storage Temperature | 40° F to +185° F (-40° C to +85° C-) |
| Relative Humidity | Up to 95%, Non-condensing |
| Electrical | |
| Nominal Powering Voltage | -48 VDC |
| Power Terminal | Redundant A and B Power Feeds |
| Regulatory Standards | ■ EN 60950-1 ■ AS/NZ 60950 ■ IEC 60950-1 ■ EN 300 386 ■ RoHS |
