Airspan AirHarmony 4000 Band 40/41
Product Information
Airspan HAR40-CN-U41-B06DP

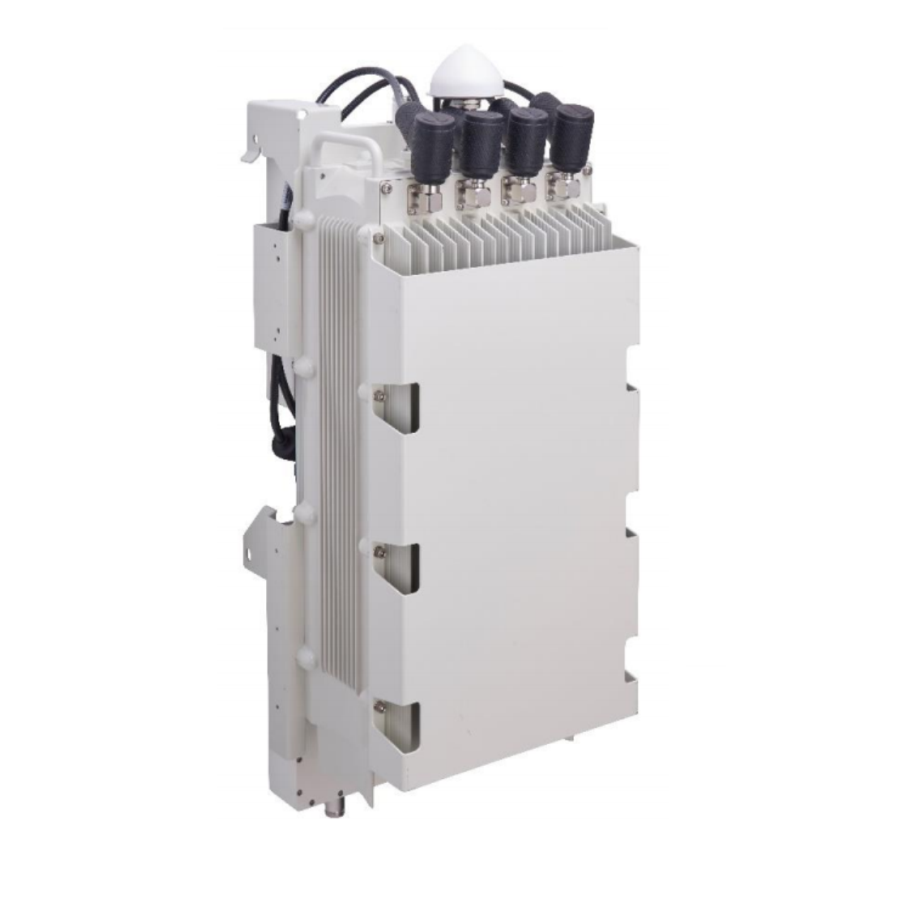

Airspan AirHarmony 4000 2.496 - 2.69 GHz (B41, B38), Connectorized, 2x Fiber + 2x Copper, PoE, DC
The Airspan AirHarmony 4000 outdoor 4G LTE-A base station with integrated wireless backhaul option is a mini-macro carrier class LTE-A small cell eNodeB that supports 3GPP’s latest LTE-A releases eNodeB specifications (software upgrade). It provides high-speed data, mobility, Voice over LTE, and broadcast/ multicast services in order to meet the demands of the LTE-A fixed and mobile carriers.
As operators struggle to cope with growing customer demand for higher throughput, they are discovering that layering base stations into a macro cell coverage area enables a significant increase in network capacity by filling in coverage gaps and addressing actual traffic distribution where demand is highest. The Airspan AirHarmony 4000 is ideal for these networks, delivering high data rates and significant cell size where needed most.
The Airspan AirHarmony 4000 Mini-Macro Cells can be installed on traditional tower sites or on existing street furniture (lamp posts of utility poles) which are either OPEX free or have nominal ongoing expenses, thus avoiding the recurring costs associated with a traditional Macro site acquisition. The unit can be painted to blend with the environment and fit the pole color.
Features:
- Inter-RAT Mobility
- RAN Sharing
- Automatic Neighbor Relation (ANR)
- eICIC, ABS and CRE
- Embedded SON
- LTE + WiFi link aggregation (LWA)
Advanced Antenna Techniques
- 2 x 2 MIMO: SM and TxD
- 4 x 2 MIMO: 4Rx2Tx by AirHarmony 4400
- SU-MIMO
- MU-MIMO
Specifications
Specifications HAR40-CN-U41-B06DP
| PHYSICAL | |
| Antenna Configurations | SBA – Dynamic antenna beam External antenna Dual X-Polar External antenna Quad X-Polar for AirHarmony 4400 |
| Data Interface | 2x Fiber Optic (via SFP) and 2x Copper |
| Weight | 19 kg / 42 lb |
| Power Consumption | 265 Watts |
| Operating Temperature Range | -40°C to +55°C / -40°F to +130°F |
| IP Rating | IP66 |
| RADIO INTERFACE | |
| Version | Release 10 Feature Sets (SW upgradeable for 3GPP R11, R12 and beyond) |
| Operational Frequency Bands: Band 40 (2.3-2.4 GHz) | Band 41 (2.6GHz) Band 42 (3.5GHz) Band 3 (1.8GHz) Band 28 (700MHz) Band 26 (800MHz) |
| Duplex | TDD, FDD Channel BW: Up to 2x 20 MHz with CA |
| Max Transmit Power | +43 dBm per Tx channel |
| MCS Support | Up to 64-QAM |
| Synchronization | GNSSS (GPS) & IEEE1588 PTPv2 |
| Downlink Freq. (MHz) | 2496-2690 |
| Uplink Freq.(MHz) | 2496-2690 |
| Dup. Mode | TDD |
| Max Channel BW (MHz) | 20 |
| Dual Carrier2 | Yes |
| Tx / Rx Conf. | 2x2 |
| Tx Power (dBm) | 43* |
| Power Source | DC |
| Filters / Duplexers Variant | Internal Filters |
