Alpha Wireless 2300-2700MHz 4 Port, 65 degree 17.0 dBi Panel Antennas
US$785.00
- SKU: AW3165-M-F
- Manufacturer: Alpha Wireless
- Data Sheet: Download
Product Information
Alpha Wireless AW-3165

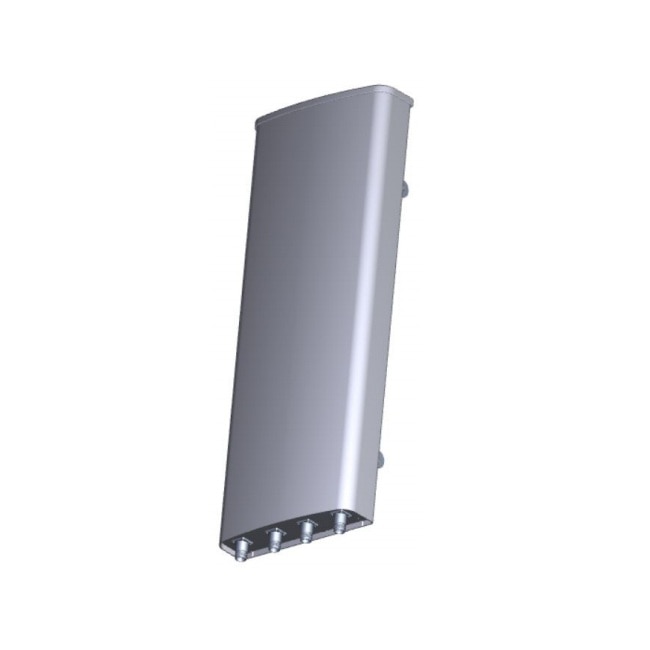

2300-2700MHz 4 Port, 65 degree 17.0 dBi Panel Antennas
This solution was developed for 1xed wireless applications requiring variable electrical tilt.
Alpha Wireless panel antennas provide wireless network operators the highest performance and quality. Panel antennas are generally used in sectorized applications. These antennas are designed for optimal radiation patterns improving overall network performance. A horizontally spaced array provides enhance MIMO performance with full 4x4 operation or receive diversity RF functions.
Features:
- Wide-band antenna for 3GPP bands 38, 40 & 41
- 4x4 MIMO for maximum throughput
- Enhanced tilt range of 0 to 10 degrees
- Manufactured in Ireland
Specifications
Specifications AW-3165
| Electrical | |
| Frequency Range | 2300 - 2700MHz |
| Polarisation | +/- 45⁰ Slant Linear |
| Gain | 17.0 dBi |
| Azimuth Beamwidth | 65⁰ |
| Azimuth Beam Squint | < 3⁰ |
| Elevation Beamwidth | 7⁰ |
| Electrical Downtilt | T0⁰ or T10⁰ |
| Electrical Downtilt Deviation | < 1⁰ |
| Impedance | 50 Ohms |
| VSWR | < 1.5 |
| Return Loss | > 14dB |
| Isolation | > 25dB |
| Front to Back Ratio: Total Power +/-30° | > 30dB |
| Upper Sidelobe Suppression, Peak to 20º | > 17dB |
| Cross-Polar Discrimination | > 16dB |
| Maximum Effective Power Per Port | 150 W |
| Mechanical | |
| Dimensions (LxØ) | 41.3" x 11" x 3.3" - (LxWxH) |
| Packing Size (LxWxD) | mm (in) 1320 (52) x 240 (9.4) x 178 (7) |
| Net Weight (antenna) | 9 kg (lb) (19.8) |
| Net Weight (mount) | 1.5 kg (lb) (3.4) |
| Weight | 10.5 kg, 23.1 lbs |
| Connector Type (Female) | 4.3-10 |
| Connector Quantity | 4 |
| Connector Position | Bottom |
| Windload Frontal (at Rated Wind Speed: 150km/h) | N (Ibf) 320 (72) |
| Windload Lateral (at Rated Wind Speed: 150km/h) | N (Ibf) 120 (27) |
| Survival Wind Speed | km/h (mph) 200 (125) |
| Radome Material | UV-Stabilised PVC |
| Radome Colour | RAL 7035 |
| Product Compliance Environmental | RoHS |
| Lightning Protection | DC Grounded |
| Cold Temperature Survival | ºC (ºF) -40 (-40) |
| Hot Temperature Survival | ºC (ºF) 70 (158 |
