Alpha Wireless 5700 – 6875 MHz, 65 degree panel antenna, 18dBi, Fixed, 25” (630mm) x 13” (322mm)
- SKU: AW3802-T2-H-6G
Product Information

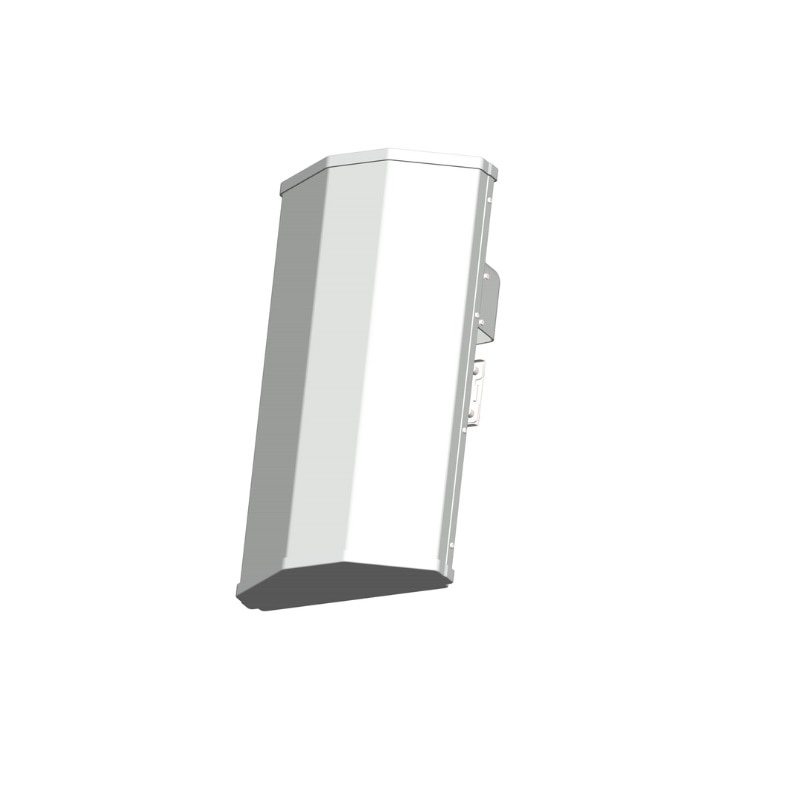

Alpha Wireless AW3802-T2-H-6G
5700 – 6875 MHz, 65 degree dual beam panel antenna, 18dBi, Fixed, 25” (630mm) x 13” (322mm)
The AW3802-T2-H-6G is an eight-port panel antenna that has been developed for six-sector site applications across the U-NII 3, 4, 5, 6, and 7 (5700 – 6875 MHz) radio bands. Each AW3802-T2-H-6G houses two four port sectors with 60° Azimuth separation. When combined with two other AW3802-T2-H-6G panels positioned at 120° Azimuth separation, this results in 360° Azimuth coverage with sectors positioned at every 60°.
Combining two form factor reduces antenna count on the tower which saves in tower rental cost. The antenna comes with radio mounting and protective cover for two 4 port radios and one GPS antennas. The sector has four ports with vertical and horizontal polarization and is compatible with 4×4 multi-user MIMO (MU-MIMO) for maximum throughput. The antenna has been optimized for three channel frequency reuse with three AW3802 (Six x 60° sectors) panels on one tower.
The AW3802-T2-H-6G panel antenna’s 25” height and 12” width provides a compact solution that occupies minimal tower space. Its adjustable and rugged mounting brackets allow smooth adjustment of the elevation downtilt from 0° to 10°.
Features:
- Covers U-NII 5, 6, 7 Bands between 5.700 – 6.875GHz
- Two 4 port sectors orientated at 60° Azimuth separation
- Mounting points on back of antenna for two ePMP Cambium Radios.
- Mounting can accommodate either two ePMP 3000 or two ePMP 4000 Cambium Radios
- Horizontal and Vertical antenna polarisation for use with the PMP3000 or ePMP 4000.
- Reverse Polarity SMA Port Connectors.
- Compact form factor at 25″ height and 12″ width that occupies minimal tower space
- Optimized for MU-MIMO and maximum throughput
- Mounting bracket with variable elevation tilt (included) and external GPS antenna fixture
- Allows rapid replacement of radio after antenna has been mounted to pole.
Specifications
Specifications
Frequency Range | 5700 - 5925MHz |
Polarisation | H & VDegree |
Gain | 16.8±0.5dBi |
17.3dBi | |
Azimuth Beamwidth | 65°Degree |
Azimuth Beam Squint | 3°Degree< |
Elevation Beamwidth | 6.0°Degree |
Electrical Downtilt | T2°Degree |
Electrical Downtilt Deviation | 1°Degree< |
Impedance | 50Ohms |
VSWR | 1.5< |
Return Loss | 14dB> |
Isolation | 25dB> |
Front to Back Ratio: Total Power +/-30° | 27dB> |
Upper Sidelobe Suppression, Peak to 20º | 14dB> |
Cross-Polar Discrimination | 16dB> |
Maximum Effective Power Per Port | 50W |
Dimensions | 630 (24.8) x 322 (12.7) x 115 (4.5) - (LxWxD)mm (in) |
Packing Size (LxWxD) | 765 (30.1) x 375 (14.7) x 250 (9.8 ) -(LxWxH)mm (in) |
Net Weight (antenna) | 8 (17.6)kg (lb) |
Net Weight (mount) | 3.1 (6.8)kg (lb) |
Shipping Weight | 12.1 (26.5)kg (lb) |
Connector Type (Female) | RP-SMA |
Connector Quantity | 8 |
Connector Position | Rear |
Windload Frontal (at Rated Wind Speed: 150km/h) | 210 (47)N (Ibf) |
Windload Lateral (at Rated Wind Speed: 150km/h) | 75 (17)N (Ibf) |
Survival Wind Speed | 200 (125)km/h (mph) |
Radome Material | ASA capped ABS- |
Radome Colour | 7035 ( light grey )RAL |
Product Compliance Environmental | RoHS |
Lightning Protection | DC Grounded |
Cold Temperature Survival | -40 (-40)ºC (ºF) |
Hot Temperature Survival | 70 (158)ºC (ºF) |
