Antel Antenna 2.3-2.7Ghz Dual Pol Sector MIMO Antenna

(0) No Reviews yet
  • SKU: ATA-ST27DS65-17-4C
  • Manufacturer: Antel Antenna
  • Data Sheet: Download
  • Availability: 12 In Stock
  • (updated live)

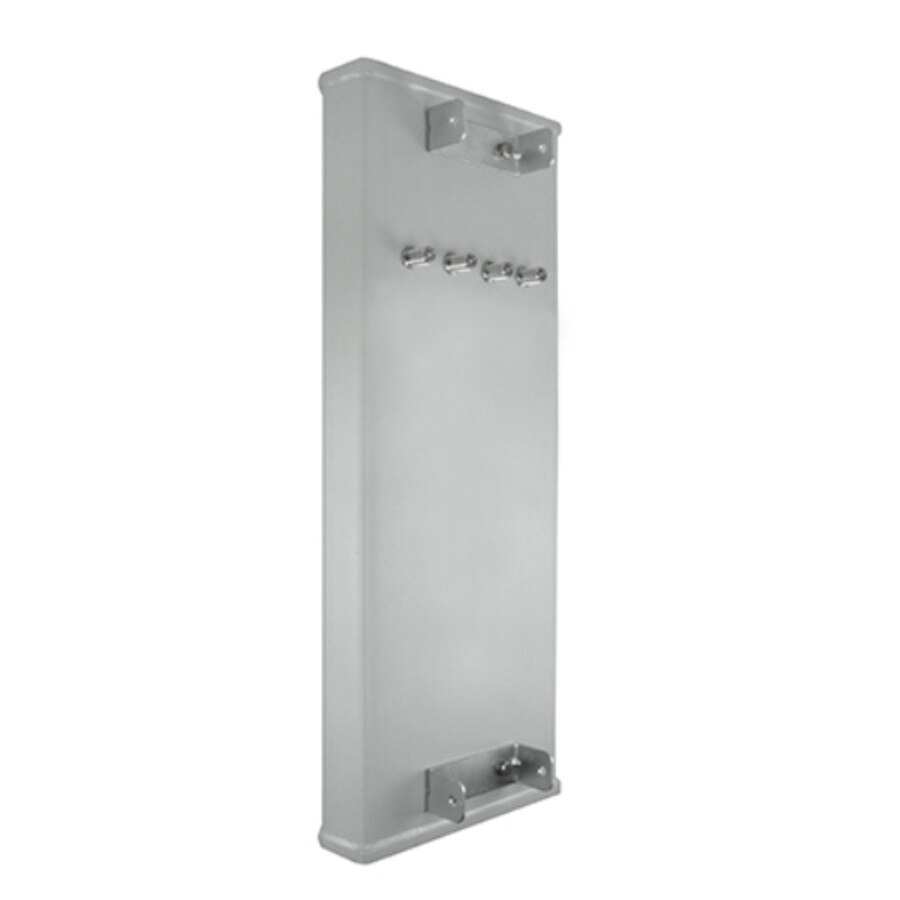

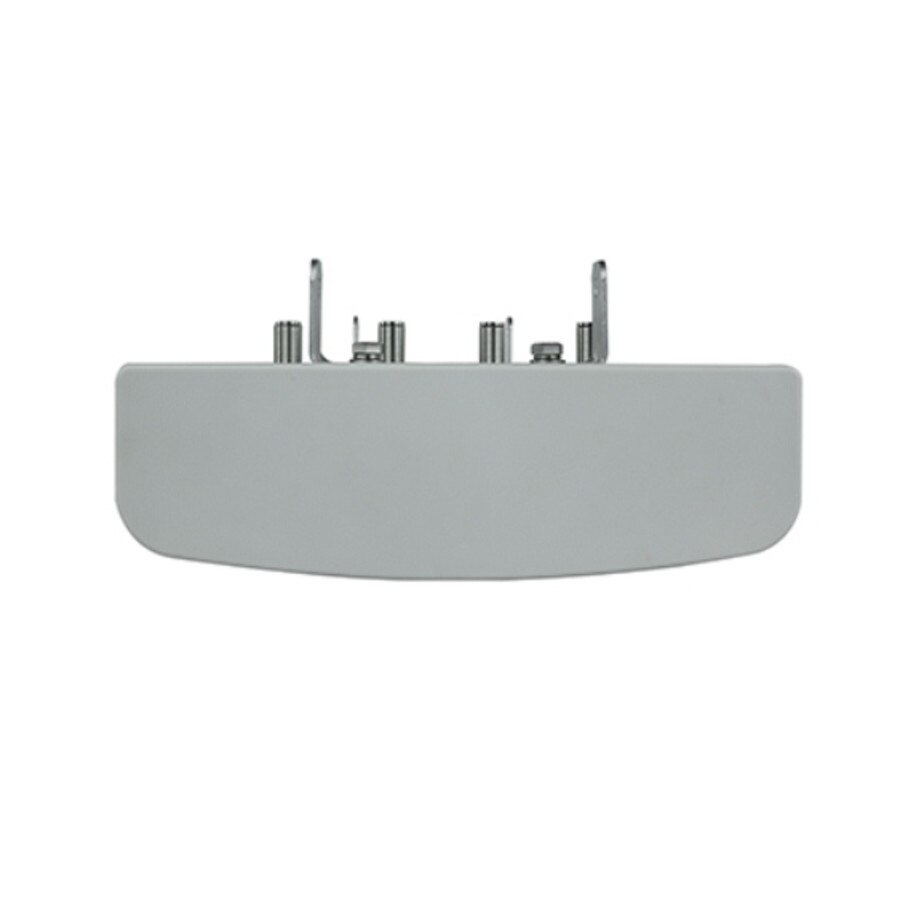

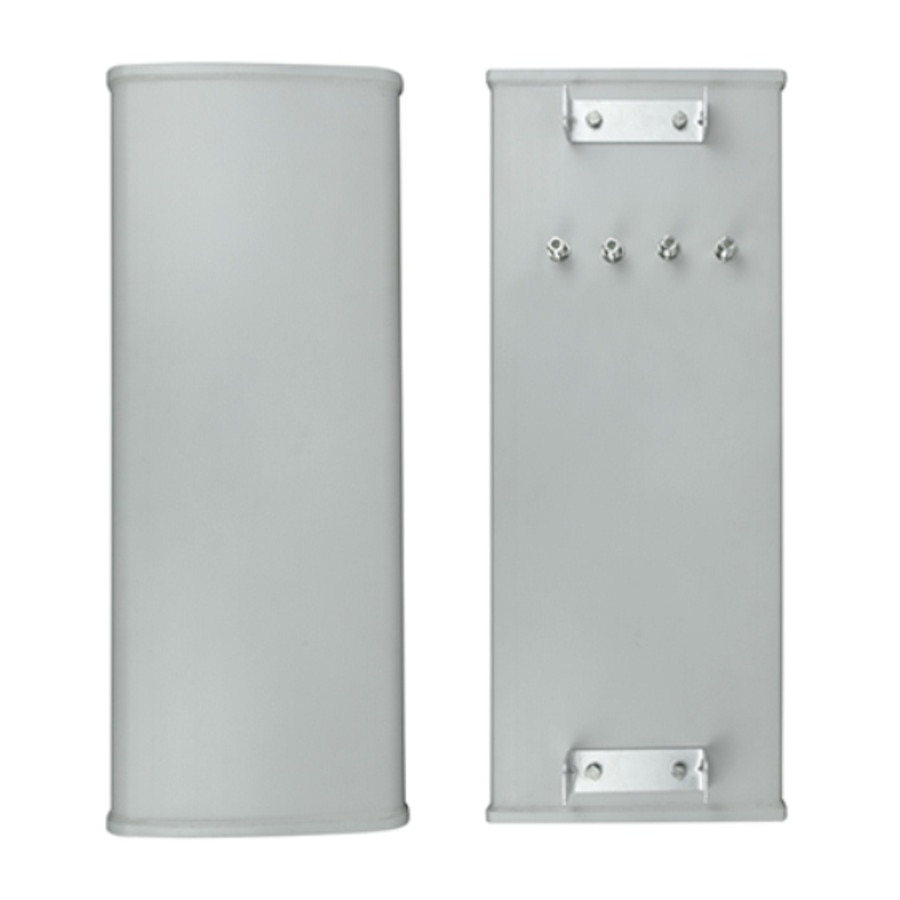

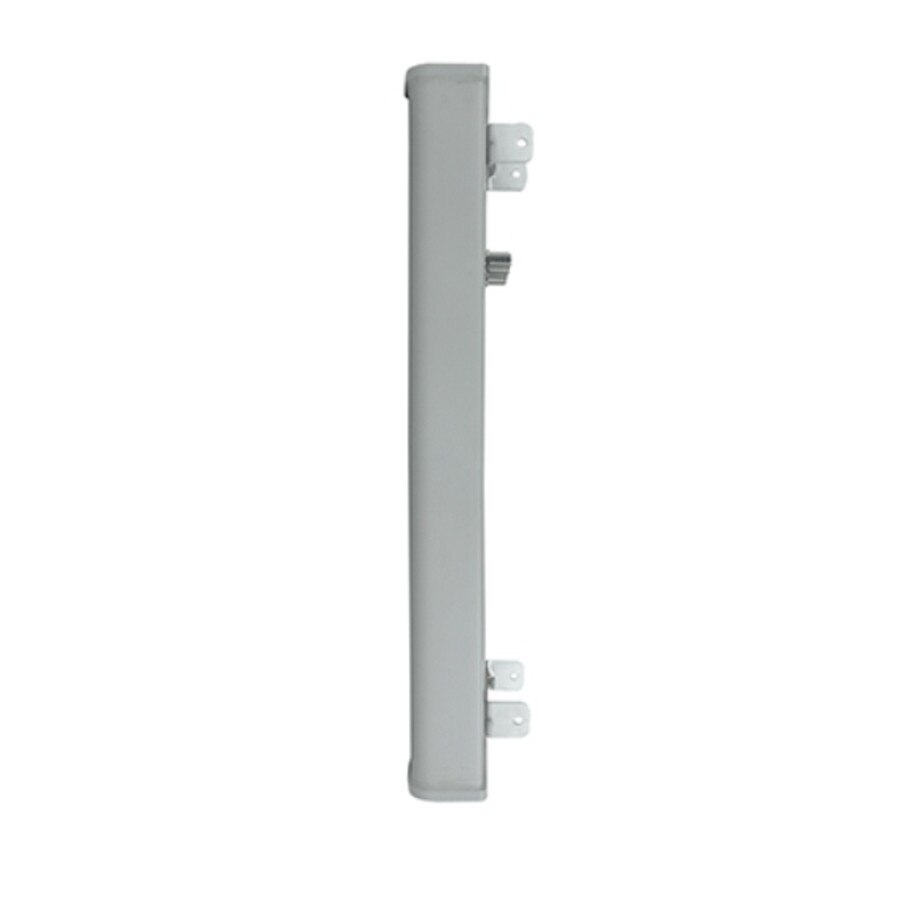

Antel Antenna ATA-ST27DS65-17-4C

Antel Antenna 2300-2700MHz, 17dBi, 65 degree, ±45° Dual Pol, Sector MIMO Antenna (4 Connectors)


Specifications

Electrical Specifications
Frequency 2300-2700MHz
Polarization ±45 ° dual pol
Gain 17±0.5dBi
VSWR ≤1.5:1
Horizontal beam-width 65°
Vertical beam-width
Front-to-back ratio ≥30dB
Isolation ≥30dB
Input Impedance 50 Ω
Max power 100 W
Lightning protection DC Ground

Mechanical Specifications
Connector Type 4*N Female
Dimensions - L x W x H 890*280*80mm (35*11*3.1inch)
Radiating Element Material Aluminum
Reflector Material Aluminum
Weight 5.5kgs
Radome material PVC
Radome Color Grey
Mounting Pole Φ30 mm to Φ55mm
Operating temperature -40 ºC to 60 ºC
Wind velocity 200 km/h (survival)
