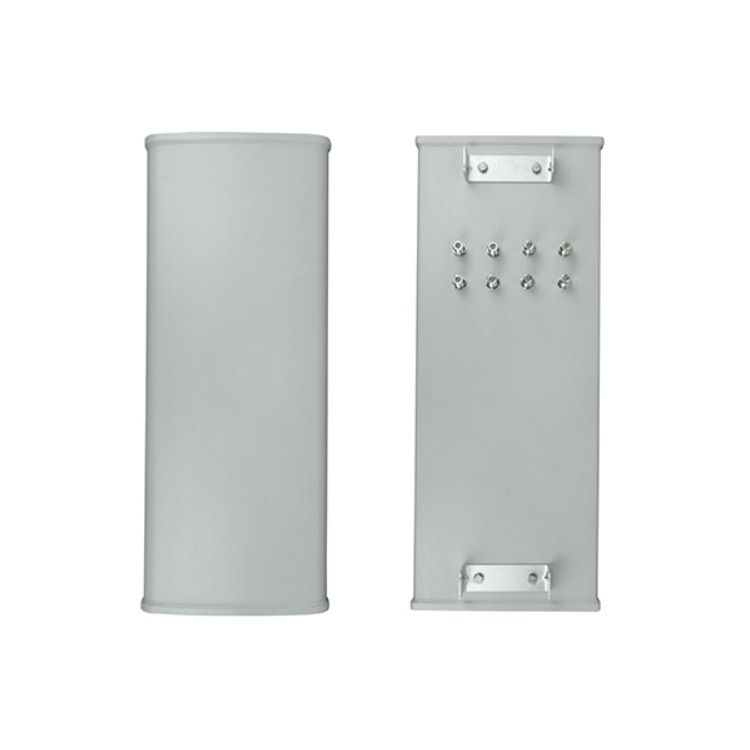

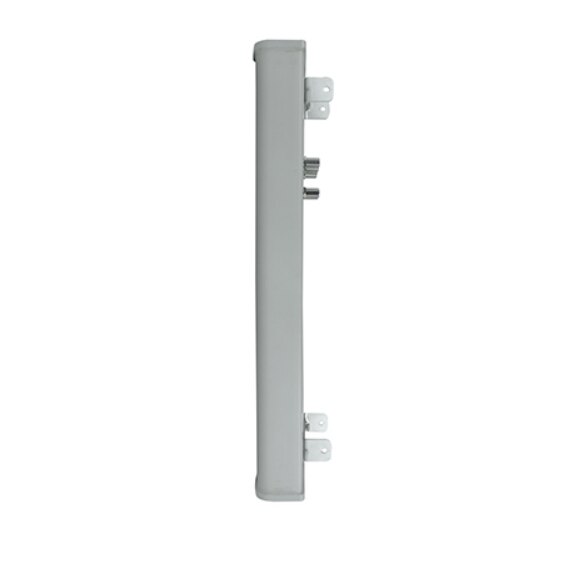

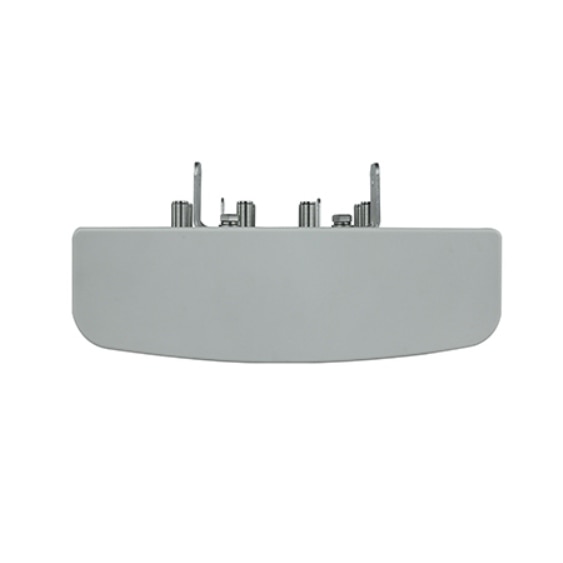

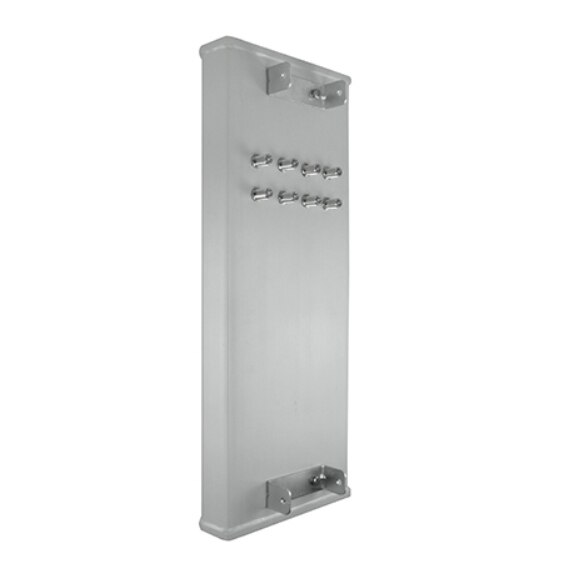

Antel Antenna 5GHz Dual Pol Sector Mimo Antenna 18 dBi Gain
- SKU: ATA-ST50HV65-18-8C
$165.24 $475.00
- Manufacturer: Antel Antenna
Product Information
Antel Antenna ATA-ST50HV65-18-8C
5GHz Dual Pol Sector Mimo Antenna 18 dBi Gain
5 GHz Dual Pol Sector MIMO Antenna, with 8 N-female jack. Frequency band is 4900-5900 MHz, with a High gain of 18 dBi. Dual polarization Vertical and Horizontal.
Specifications
Specifications ATA-ST50HV65-18-8C
| Electrical | |
| Frequency | 4900-5900MHz |
| Polarization | Vertical & Horizontal |
| Gain | 18±1dBi |
| VSWR | ≤1.7:1 |
| Horizontal beam-width | 65° |
| Vertical beam-width | 7° |
| Front-to-back ratio | ≥30dB |
| Isolation | ≥30dB |
| Input Impedance | 50 Ω |
| Max power | 100 W |
| Lightning protection | DC Ground |
| Mechanical | |
| Connector Type | 8*N Female |
| Dimensions - L x W x H | 600*280*80mm (23.6*11*3.1inch) |
| Weight | 11.02 lbs |
| Radiating Element Material | Aluminum |
| Reflector Material | Aluminum |
| Weight | 5kgs |
| Radome material | UPVC |
| Radome Color | Grey |
| Mounting Pole | Φ30 mm to Φ55mm |
| Operating temperature | -40 ºC to 60 ºC |
| Wind velocity | 200 km/h (survival) |
