Arc Wireless Integrator Antenna 900MHz, 13dBi

(0)No Reviews yet
  • SKU: ARC-IA0913B02
  • Manufacturer: Arc Wireless
  • Spec Sheet: Download

Product Information

ARC Wireless ARC-IA0913B02

ARC Wireless ARC-IA0913B02 ARC Integrator Antenna 900MHz, 12.5dBi

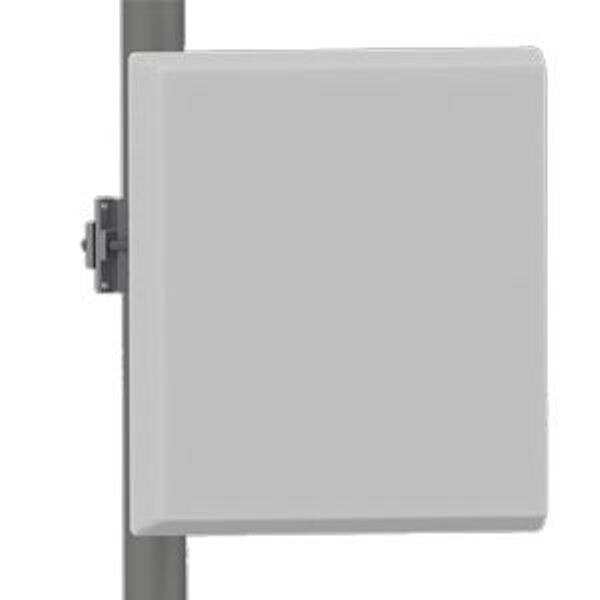

ARC IES Panel Antenna 902-928 MHz 12.5dBi. High gain, low cost circuit design. Low profile and rugged design for outdoor use.  US engineered & manufactured under strict US quality control procedures.  Fits with ARC’s IES™.



Specifications

Specifications ARC-IA0913B02

Electrical Properties

Frequency902-928 MHz
Gain12.5dBi
PolarizationSingle Linear – Vertical or Horizontal
3dB Beamwidth Vertical/ Horizontal 42 degrees/ 42 degrees
VSWR≤1.5:1 typ, ≤1.7:1 max
Front-to-Back Ratio>20 dBi
Cross Polarization>25 dBi
Power Rating 30 watts
Impedance50 ohms
Connector TypeR/A SMA Jack
Lightning ProtectionDC ground

Physical/Environmental

Length x Width x Depth15.4 x 15.4 x 1.7.in (39.1 x 39.1 x 4.3cm)
Weight2.7 lbs (1.2kg)
BackplaneAluminum
EnclosurePowder-coated die-cast aluminum, gray
RadomeUV stabilized ABS plastic, gray
Wind Survivability 125mph (201kph)
Operating Temperature-49°F to 149°F (-45°C to 65°C)

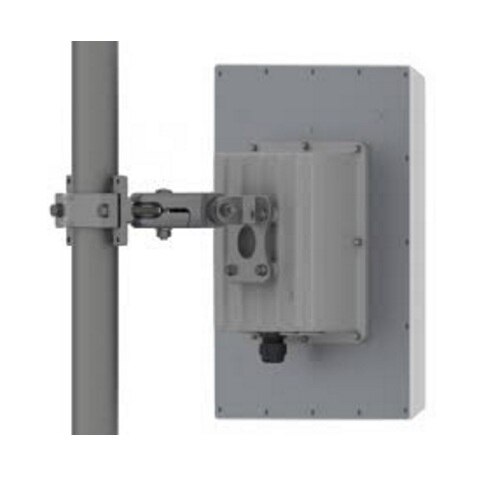

Pole Mount Diameter0.75in to 3.0in (1.9cm to 7.6cm)
