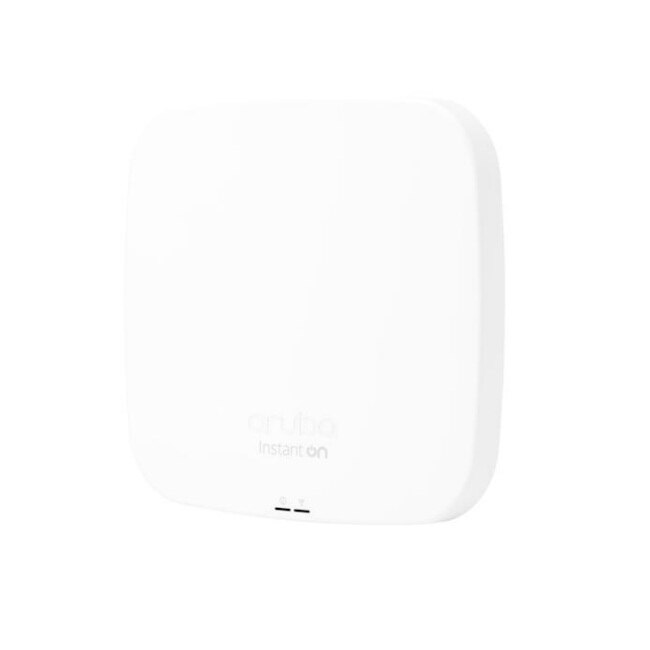

Aruba Instant On AP15 (US) 4x4 11ac Wave2 Indoor Access Point
- SKU: R2X05A
- Manufacturer: Aruba Instant On
- Data Sheet: Download
Product Information
Aruba Instant On R2X05A
Aruba Instant On AP15 (US) 4x4 11ac Wave2 Indoor Access Point, Comparable to Ubiquiti UAP-AC-HD
Aruba Instant On AP15 Indoor Access Points deliver affordable, premium-grade Wave 2 802.11ac Wi-Fi for medium-density small business environments requiring high performance and bandwidth. Business-grade capabilities are designed to meet the mobile, IoT, and security needs of tech-start-ups and retail stores at an attractive price point. The compact form factor delivers reliable and affordable multi-user capabilities and an aggregate peak data rate of 2 Gbps to support high-definition video streaming and cloud application requirements. These Aruba Instant On AP15 Indoor Access Points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications. The Aruba Instant On AP15 Indoor APs are designed for small business deployments demanding high-traffic, high-performance network environments like tech-startups and co-working spaces.
Features:
- Fast Connectivity with 802.11ac Wave 2 Access Points that is
- Simple to Deploy
- Aruba Instant On AP15 Indoor Access Points include an easy to use web
- GUI and templates so access points are up and running in minutes.
- 802.11ac Wave 2 features include 4x4:4SS
- Dual-band wireless (2.4GHz and 5GHz) for combined speeds of up to
- 2Gbps support high-bandwidth activities such as video, voice, and
- conferencing solutions.
- Aruba Instant On AP15 Indoor Access Points allow for any change to the
- primary AP configuration to be automatically pushed to every AP in the
- same cluster.
- A secondary AP automatically takes over if the primary AP experiences an
- outage for always-on Wi-Fi.
Specifications
Specifications R2X05A
Weight | 1.5 lb |
Dimension (L x W x H) | 1.6 x 7.2 x 7.2 in |
Optical Drive Type | None |
Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, Wi-Fi CERTIFIED |
Connectivity Technology | Wireless |
Data Link Protocols | Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Features | 4T4R MIMO technology, Bluetooth (BLE) clients support, Manageable, Reset button, Security lock slot (cable lock sold separately), Wall mountable |
Form Factor | Wall / ceiling mountable |
Network Band | 2.4 GHz, 5 GHz |
Power Over Ethernet (PoE) | PoE |
Product Type | Wireless access point |
Status Indicators | Status |
Wireless LAN | 802.11a/b/g/n/ac, Bluetooth |
Interface Provided | 1 x 1000Base-T (PoE) - RJ-45 |
Operating System | InstantOS |
Antenna Form Factor | Internal |
Antenna Gain Level | 6 DBi |
Directivity | Omni-directional |
Encryption | Opportunistic Wireless Encryption (OWE), WPA2, WPA3 |
Max Operating Temperature | 122 degree Fahrenheit |
Min Operating Temperature | 32 degree Fahrenheit |
MTBF | 105 years |
Operating Humidity | 5 - 93% (non-condensing) |
