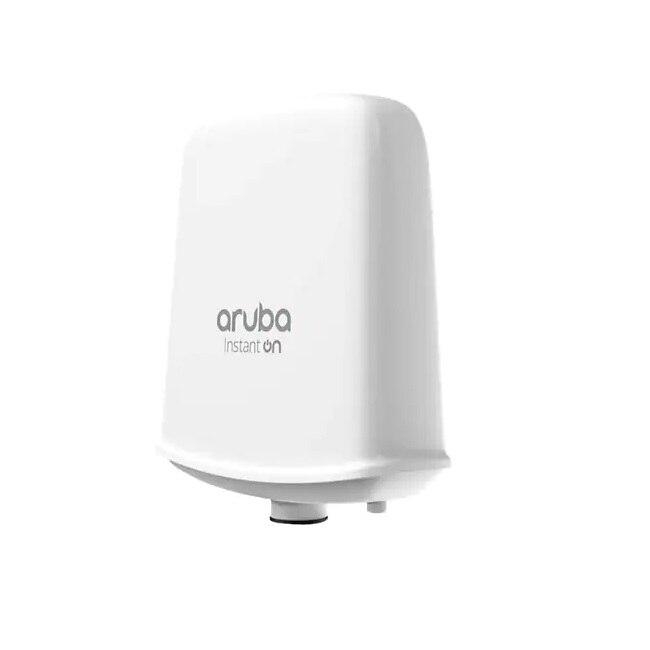

Aruba Instant On AP17 (US) 2x2 11ac Wave2 Outdoor Access Point
- SKU: R2X10A
- Manufacturer: Aruba Instant On
- Data Sheet: Download
Product Information
Aruba Instant On R2X10A
Aruba Instant On AP17 (US) 2x2 11ac Wave2 Outdoor Access Point
Aruba Instant On AP17 Outdoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for medium-density small business environments requiring high performance and bandwidth. The weather-proof Aruba Instant On AP17 Outdoor Access Points are designed to deliver high-performance network coverage to outdoor and environmentally challenging locations like smaller manufacturing units and open-air restaurants. Enjoy stronger Wi-Fi strength even in the pool and patio area of your space. The compact form factor of the Aruba Instant On AP17 Outdoor Access Points deliver reliable and affordable multi-user capabilities and an aggregate peak data rate of 2 Gbps to support high-definition video streaming and cloud application requirements. These access points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications.
Features:
- Fast Connectivity with 802.11ac Wave 2 Access Points that is Simple to Deploy
- Aruba Instant On AP17 Outdoor Access Points include an easy to use web
- GUI and templates so access points are up and running in minutes.
- 802.11ac Wave 2 features include 4x4:4SS and up to 160 MHz channel bandwidth.
- Dual-band wireless (2.4GHz and 5GHz) for combined speeds of up to 2Gbps support high-bandwidth activities such as video, voice, and
- conferencing solutions.
- Aruba Instant On AP17 Outdoor Access Points allow for any change to the primary AP configuration to be automatically pushed to every AP in the
- same cluster.
- A secondary AP automatically takes over if the primary AP experiences an outage for always-on Wi-Fi.
- Eliminates High Cost of Cabling with Full-Scale Wireless Mesh Coverage
- Aruba Instant On AP17 Outdoor Access Points feature built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
- Conveniently expands your network to hard-to-wire areas and nearly
- eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
Specifications
Specifications R2X10A
Weight | 1.4 lb |
Dimension ( H x W x D) | 7.4 x 6.1 x 2.6 in |
Optical Drive Type | None |
Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, Wi-Fi CERTIFIED |
Connectivity Technology | Wireless |
Data Link Protocols | Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Features | 2T2R MIMO technology, Bluetooth (BLE) clients support, Manageable, Pole mountable, Reset button, Wall mountable |
Form Factor | External |
Network Band | 2.4 GHz, 5 GHz |
Power Over Ethernet (PoE) | PoE |
Product Type | Wireless access point |
Status Indicators | Status |
Wireless LAN | 802.11a/b/g/n/ac, Bluetooth |
Interface Provided | 1 x 1000Base-T (PoE) - RJ-45 |
Operating System | InstantOS |
Antenna Form Factor | Internal |
Antenna Gain Level | 4.7 DBi |
Directivity | Omni-directional |
Encryption | Opportunistic Wireless Encryption (OWE), WPA2, WPA3 |
Max Operating Temperature | 122 degree Fahrenheit |
Min Operating Temperature | 40 degree Fahrenheit |
MTBF | 34 years |
Operating Humidity | 5 - 93% (non-condensing) |
