  • Aruba Instant On AP11D (US) 2x2 11ac Wave2 Desk/Wall Access Point

Aruba Instant On AP11D (US) 2x2 11ac Wave2 Desk/Wall Access Point

(0)No Reviews yet
US$‎139.99 US$‎189.00
  • SKU: R2X15A
  • Manufacturer: Aruba Instant On
  • Data Sheet: Download

Call for Availability

Call for Availability

Product Information

Aruba Instant On R2X15A

AP11D (US) 2x2 11ac Wave2 Desk/Wall Access Point, Comparable to Ubiquiti UAP-AC-IW

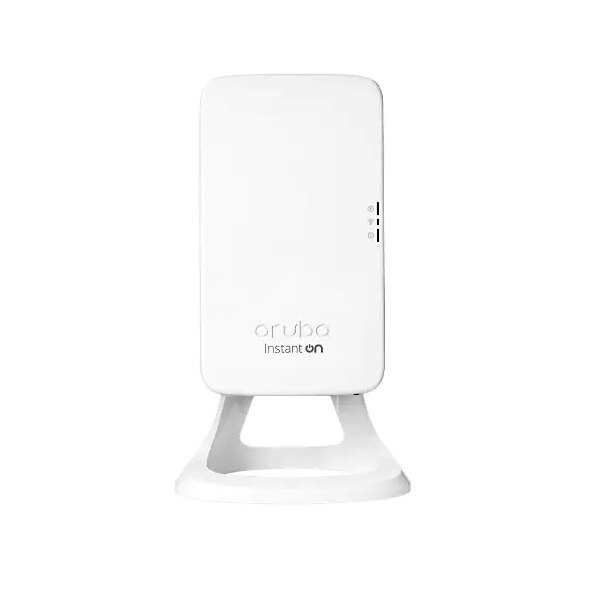

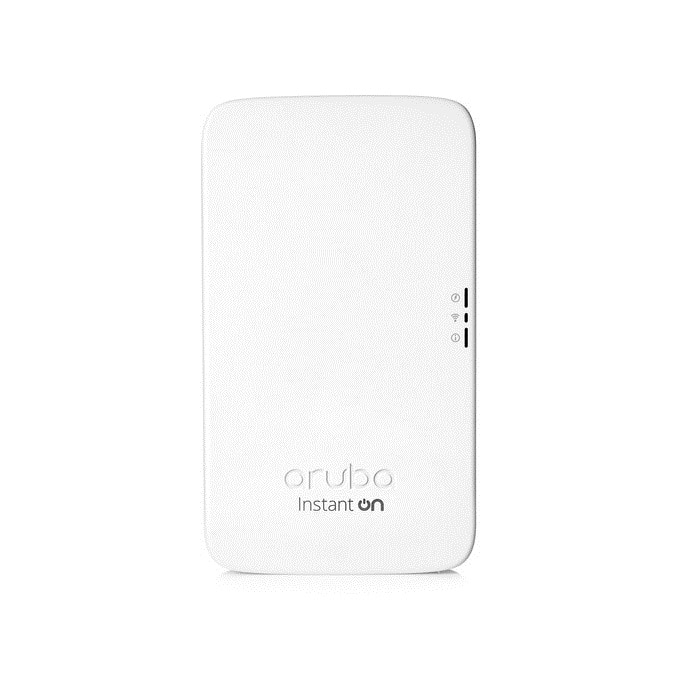

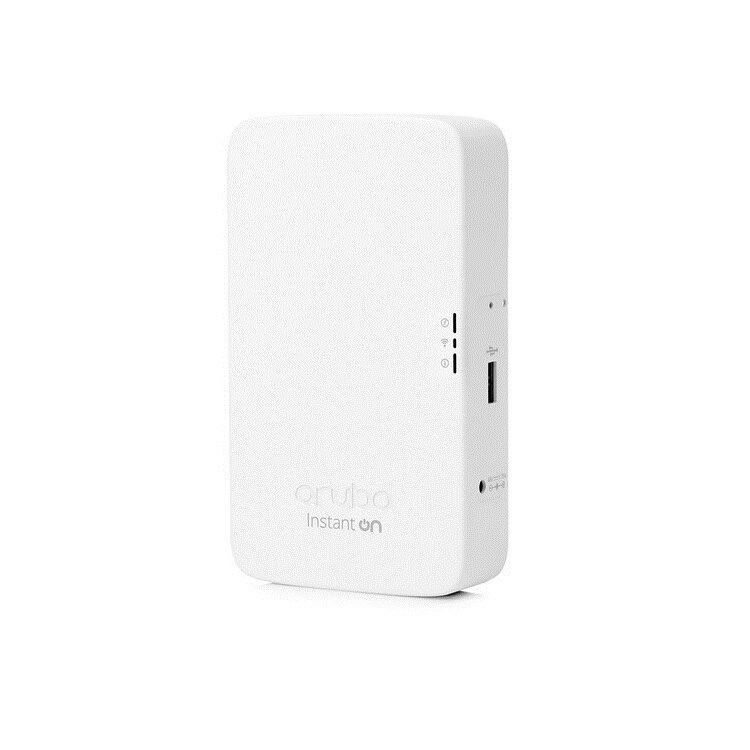

Designed for flexible and easy deployments which require an enhanced in-room Wi-Fi experience such as boutique hotels, small offices, or doctor's offices, the aruba Instant On AP11D Desk/Wall Access Point supports Wi-Fi 5 (802.11ac) and provides up to 867 Mb/s on the 5 GHz frequency band. It also supports Wi-Fi 4 (802.11n) and provides up to 300 Mb/s on the 2.4 GHz frequency band. Equipped with down-tilt, omni-directional internal antennas, this dual-band access point features a Gigabit Ethernet port that supports PoE (Power over Ethernet), ideal for transmitting both data and power over a single cable. Smart Mesh technology makes it easy to expand the network into hard-to-wire areas.

Multi-user MIMO technology allows the ceiling-mountable access point to handle multiple simultaneous data streams. An integrated Bluetooth Low Energy radio allows for location-based and indoor wayfaring applications. With the mobile app or the cloud portal, you can easily manage your Wi-Fi as well as create separate guest and employee networks. Use the included clips to mount the access point to the ceiling rails or to a solid surface, like a wall or ceiling.



Features:

  • Wi-Fi works right out of the box
  • Easy-to-use mobile app for deployment and upkeep
  • Keep separate guest and employee Wi-Fi networks
  • WPA2/WPA3 and Enhanced Open for secure network access
  • A customizable guest access page that shows off your brand

Specifications

Specifications R2X15A

Wireless Frequency Bands2.4 GHz, 5 GHz Dual-Band
MU-MIMO Support2 x 2
WLAN ModeWi-Fi 5 (802.11ac)
Antenna Gain4.3 to 6.2 dBi
Antenna PlacementInternal
Throughput1167 Mb/s Total 2.4 GHz: 300 Mb/s 5 GHz: 867 Mb/s
Interface
Inputs/Outputs1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE
Security
Guest Network SupportYes
Wireless SecurityWPA2, WPA3
Lock SlotYes, Kensington
Environmental
Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity5 to 93%
Dimensions (W x D x H)5.91 x 3.39 x 1.57" / 150 x 86 x 40 mm
Weight11.04 oz / 313 g / 0.69 lbs
