Baicells Aurora243 Outdoor 5G NR Integrated TDD gNB – Qualcomm+NXP, N78(3300MHz-3600MHz),2T2R,2*10W, 90VAC~260VAC, External Antenna, 1*RJ45+1*OPT)
- SKU: BSC7078L243
Product Information
Baicells BSC7078L243
Aurora243 Outdoor 5G NR Integrated TDD gNB – Qualcomm+NXP, N78(3300MHz-3600MHz),2T2R,2*10W, 90VAC~260VAC, External Antenna, 1*RJ45+1*OPT)

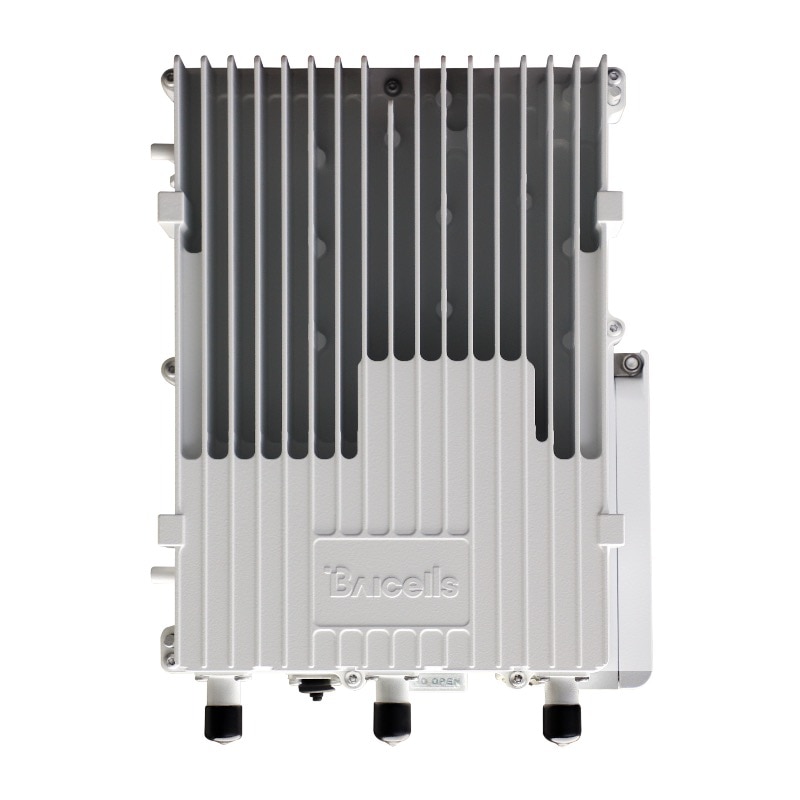

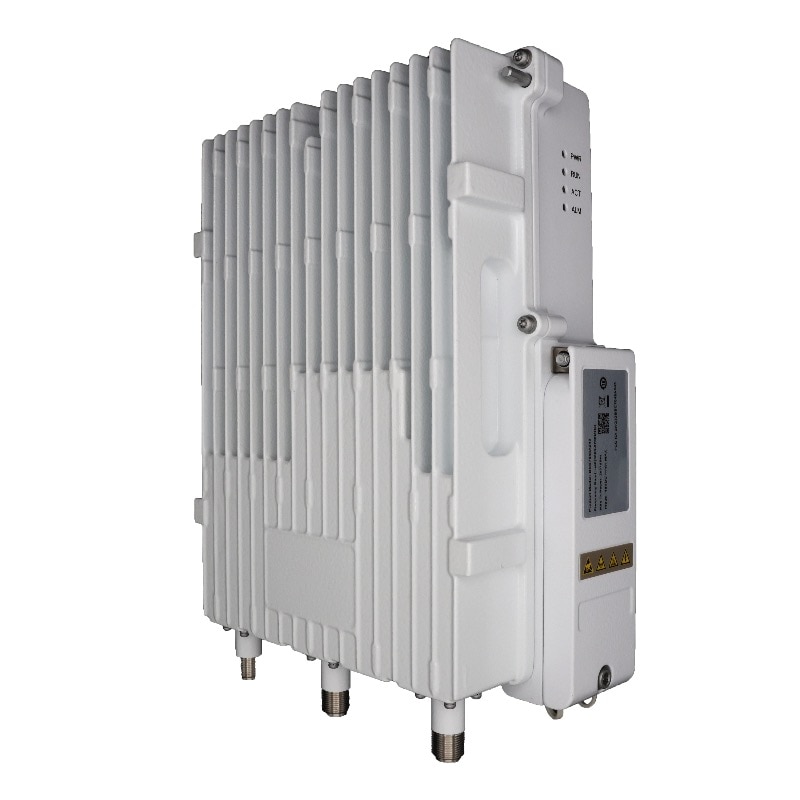

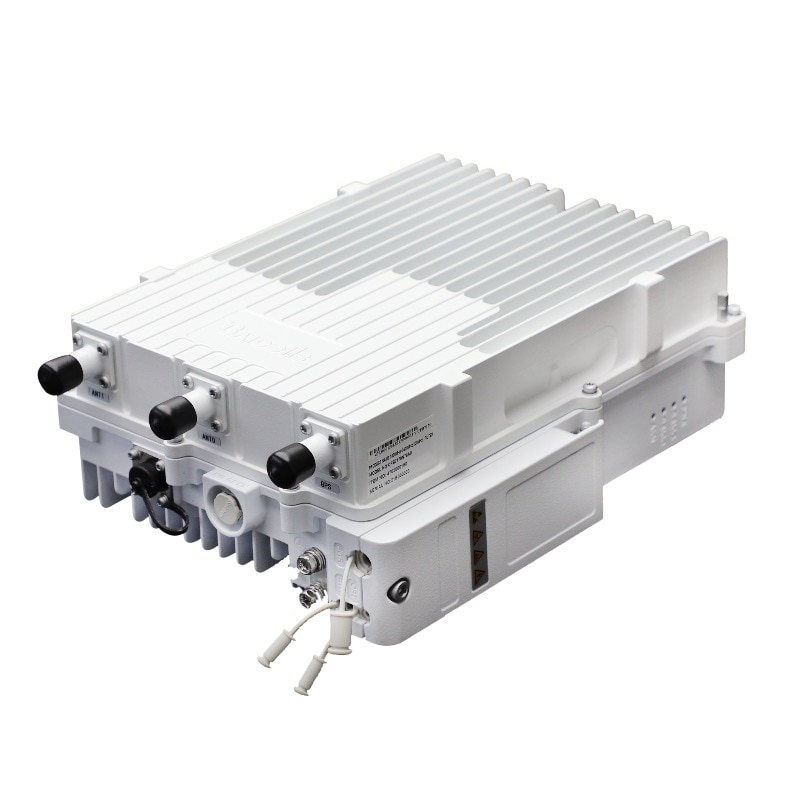

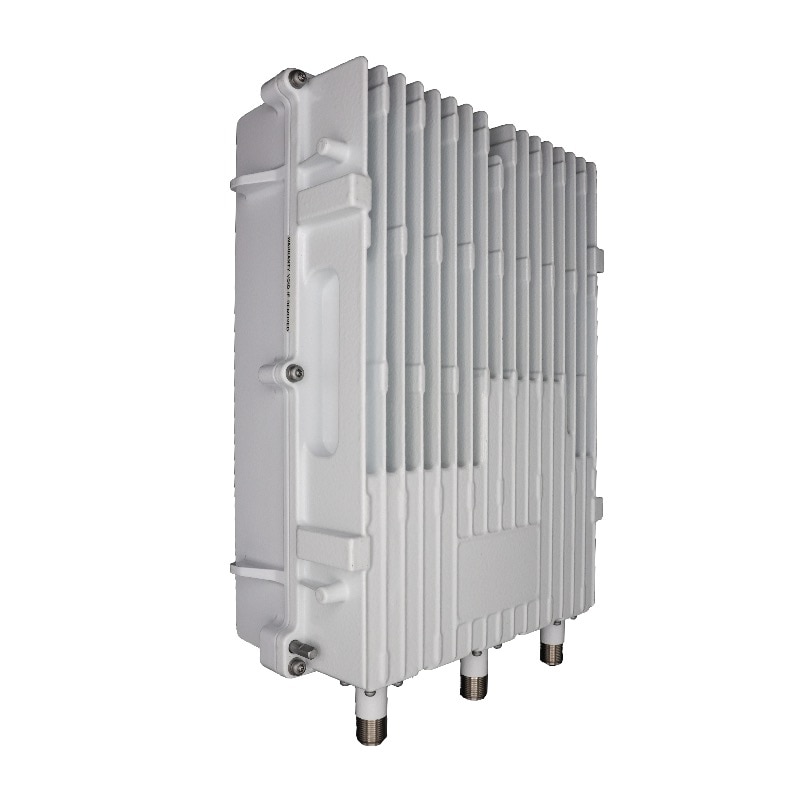

The Baicells Aurora243 is an advanced outdoor 5G Sub-6G integrated base station (gNodeB) designed and developed based on the Qualcomm 5G System on a Chip (SoC) solution. This 2x10W gNB consumes low power, has a small form factor, and is easy to maintain.
The Aurora243 enables operators to enhance coverage performance, improve network capacity, and eliminate blind spots for their 5G networks while reducing overall system power consumption.
This product has a standard one-year warranty; an extended warranty is available.
Features:
- Standard NR FR1 Bands N41/N48/N77/N78
- Complies with 3GPP Release 15 and Release 16*
- GUI-based local and remote Web management
- Supports 100 MHz bandwidth
- Peak data rate of up to DL 850 Mbps
- Peak data rate of up to UL 330 Mbps
- Supports up to 600 RRC connected users and 200 RRC active users on 100 MHz channels, or 500 RRC connected users and 100 RRC active users on 40 MHz channels
- Supports Standalone (SA) mode
- Supports F1 interface setting*
- Supports Internet Key Exchange Stream Control Transmission Protocol (IKE SCTP)
- Supports embedded 5G core network (HaloB)
- Supports integrated antenna panel kit*
- Integrated small cell form factor for quick and easy installation
- Supports flexible xHaul
- Highly secured with equipment certification against potential intrusion risk
- Supports TR-069 network management interface
- Lower power consumption, which reduces OPEX
Specifications
Specifications
| Standard | 5G NR TDD (3GPP Release 15 and Release 16* compliant) |
| TDD UL/DL Configuration | • 5 ms periodicity (μ=1): DDDDD+DDSUU • 2.5 ms dual periodicity (μ=1): DDDSU+DDSUU • 2.5 ms single periodicity (μ=1): DSUUU* (With Special Subframe Configuration: 10:2:2) |
| Frequency Band | N78 (3300 MHz–3600 MHz) / (3600 MHz–3800 MHz) |
| Channel Bandwidth | N78: 40/60/80/90/100 MHz NOTE: In HaloB scenario, 10/20/30/40 MHz are supported. Support for 50/60/70/80/90/100 MHz is planned for a future release. |
| Multiplexing | 2x2 MIMO (DL: 2L, UL: 2L) |
| Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 optical (SFP+) and 1 RJ-45 Ethernet interface (1 GE) |
| Power Supply | 90 VAC to 264 VAC, 47 Hz to 63 Hz or -40 VDC to -57 VDC, nominal -48 VDC |
| Protocols Used | IPv4/IPv6, UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPS, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, TR-069, SSH, Embedded 5GC* |
| VLAN/VxLAN* | 802.IQ/VxLAN |
| LED Indicators | 4 x status LED PWR/ACT/RUN/ALM |
| Antenna Connection | 2T2R N-Type connectors for external high-gain antenna |
| GPS Antenna | External GPS antenna, N-Type connector |
| PERFORMANCE | |
| User Capacity | Supports up to 600 RRC connected users and 200 RRC active users on 100 MHz channels or 500 RRC connected users and 100 RRC active users on 40 MHz channels. |
| Maximum Deployment Range | 1.5 km |
| Latency | Round-Trip Delay (RTD) less than 10 milliseconds |
| Receive Sensitivity | -95 dBm (per channel) |
| Modulation | UL: MCS0 (QPSK) to MCS28 (256 QAM) DL: MCS0 (QPSK) to MCS27 (256 QAM) |
| Transmit Power Range | 0 to 40 dBm per channel (combined +43 dBm, configurable) (1 dB interval) |
| Quality of Service | Complies with 3GPP standard 5G QoS Identifier (5QI) |
| ARQ/HARQ | Supported |
| Synchronization | GPS |
| Voice | VoNR/EPS-FB |
| SON | Self-Organizing Network • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| Traffic Offload | Local breakout |
| Maintenance | • Local/Remote Web maintenance • Online status management • Performance statistics • Fault management • Local/Remote software upgrade • Logging • Connectivity diagnosis • Auto startup |
| LINK BUDGET | |
| VSWR | <= 1.5 |
| EIRP | Antenna gain = G EIRP = (43+G) dBm |
| Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 38.213 compliant)* |
| Surge Suppression | Network interface: 1 KV Power Interface: • Differential mode: 2 KA • Common mode: 4 KA |
| Lightning Protection | Power Interface: • Differential mode: ±10 KA • Common mode: ±20 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -22°F to 131°F / -30°C to 55°C |
| Storage Temperature | -40°F to 149°F / -40°C to 65°C |
| Humidity | 2% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Maximum 150 W |
| Weight | With bracket: 16.5 lb/7.5 kg Without bracket: 15.9 lb/7.2 kg |
| Dimensions (HxWxD) | 13.1 x 9.4 x 4.3 inches 333 X 240 X 109 millimeters |
| Installation | Pole or wall mount |
| Peak Data Rate | ||
| 100 MHz | DL (Mbps) 256 QAM | UL (Mbps) 256 QAM |
| 7D2U | 850 | 230 |
| 5D3U | 720 | 330 |
| 1D3U* | 380 | 660 |
| 40 MHz | DL (Mbps) 256 QAM | UL (Mbps) 256 QAM |
| 7D2U | 325 | 88 |
| 5D3U | 279 | 132 |
