Product Information

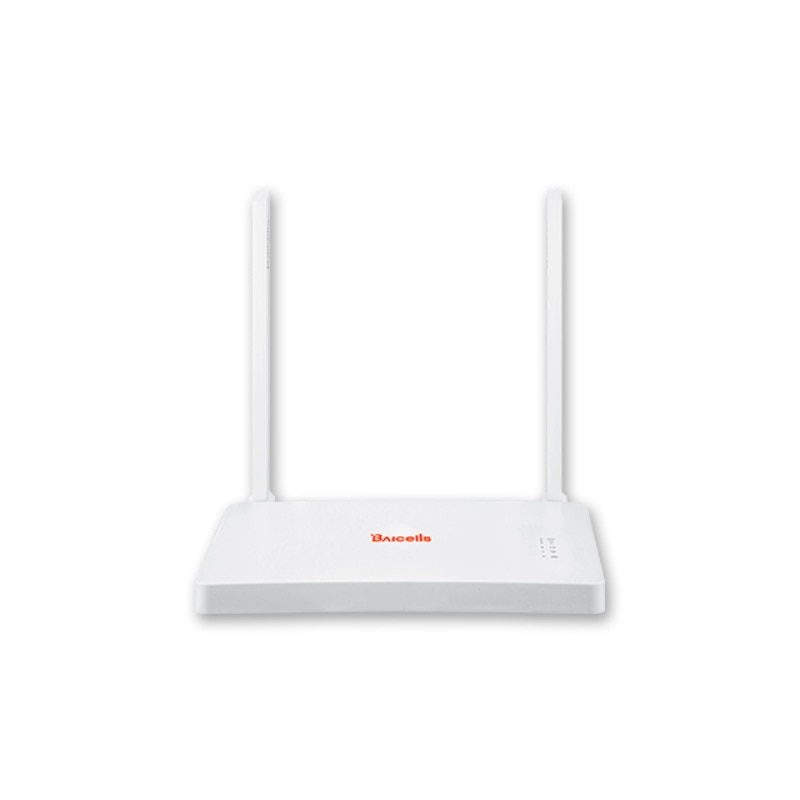

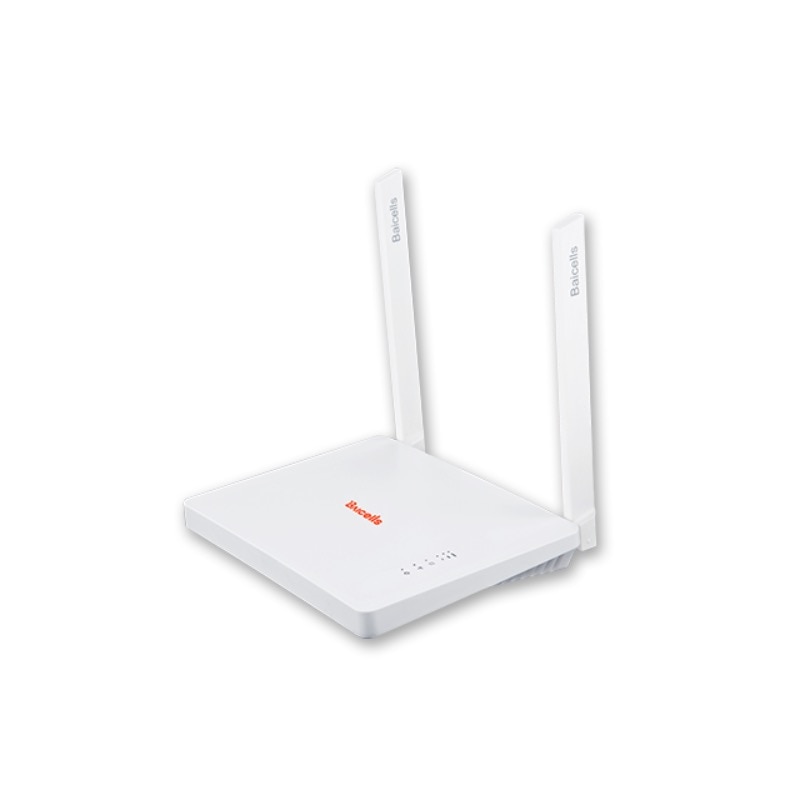

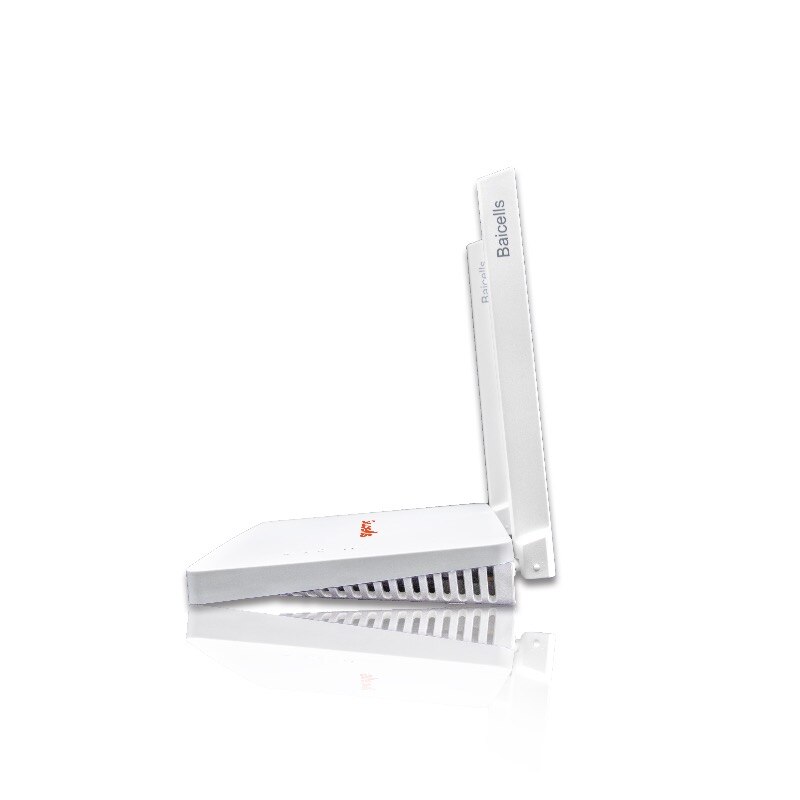

Baicells SNAP PoE Router
IEEE 802.11b/g/n/ac WIFI, 2.4GHz, 5G dual-bands with POE output, US plug
Make working and studying from home a SNAP. Baicells SNAP PoE Router combines reliable connectivity with ease of installation. Connect your customers quickly with an integrated PoE that can provide power to an outdoor UE, and keep them connected with local and remote configuration available through the Baicells CloudCore OMC. Supporting IEEE 802.11b/g/n/ac Wi-Fi operations at 2.4 GHz and 5GHz, SNAP allows for high-speed internet connectivity with the unique ability to power your outdoor UEs.
Wi-Fi signals from user devices such as mobile phones, laptops, and tablets pass through the SNAP router and are forwarded to the outdoor UE where the Wi-Fi signals are changed to Long-Term Evolution (LTE) signals and sent on to the high-speed LTE network.
The SNAP router supports 2.4 GHz and 5 GHz Wi-Fi, may be used with the Atom Outdoor Low-Gain or Atom Outdoor High-Gain UE, and is managed through a device GUI and the Baicells Operations Management Console (OMC). The product comes with a standard one-year warranty; extended warranty is available.
Feature:
- 1000 Mbps WAN with PoE output
- 1000 Mbps LAN port
- Standard IEEE 802.11b/g/n/ac Wi-Fi operating in dual-band 2.4 GHz and 5 GHz mode
- Local and remote management
- TR-069 network management protocol supported
- User-friendly LED status Indicators
Specifications
Specifications EP3011

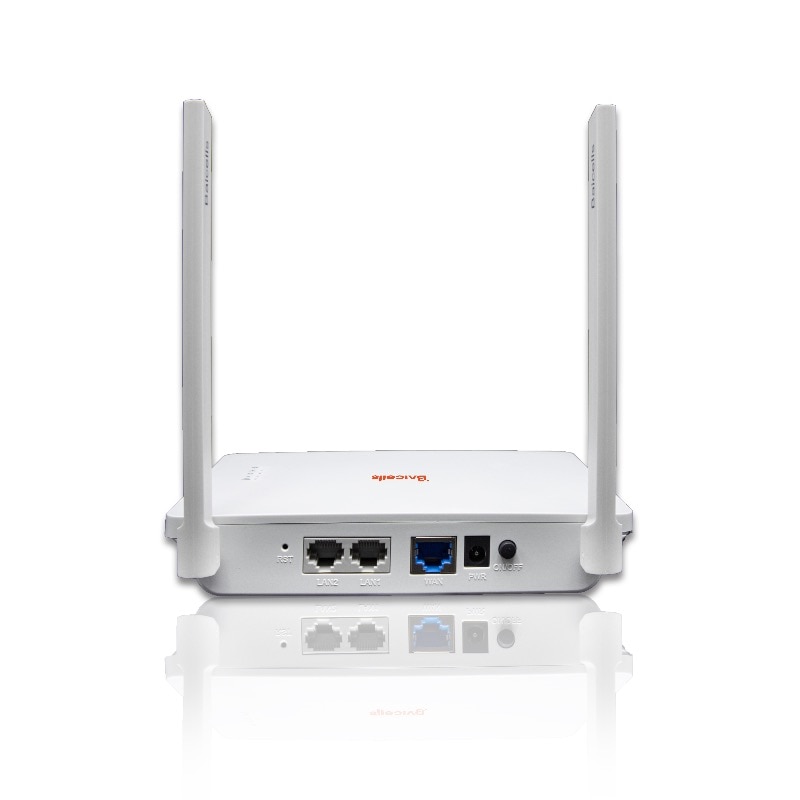

| WAN Port | 1*10/100/1000 auto-sensing, auto-MDX |
| LAN Port | 2*10/100/1000 auto-sensing, auto-MDX |
| Power Supply | Input: Universal range 100V-240V ACPoE Output: 24V DC PoE, 2A |
| Power Switch | On/Off |
| Reset Button | Press for 10 seconds to restore the router to its factory settings LEDs Power/WLAN/SYS/LTE Signal |
| Dimensions | H/W/D 6.9 x 5 x 1 inches 175 x 130 x 30 millimeters |
| Weight | 17.6 ounces / 500 grams |
| Wi-Fi | |
| Standard | IEEE 802.11b/g/n/ac |
| Channel Bandwidth | 20 MHz, 40 or 20 MHz, 40 MHz, 80 MHz |
| Frequency | 2.4 GHz and 5 GHz dual-band support |
| MIMO | 2x2 |
| Peak Rate | 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 866 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Sensitivity | • -64 dBm @ 65 Mbps, typical for 802.11n/ac • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 14±3 dBm |
| Antenna Type | Internal omni, 2T2R |
| Antenna Gain | 5 dBi |
| Active Users | 32 |
| SOFTWARE | |
| Network Mode | NAT or Bridge |
| IP Protocol | IPv4/IPv6 |
| SIM | PIN management, SIM lock |
| Network Connection | Auto or Manual |
| LTE Scan Mode | Full band scan, frequency lock, PCI lock |
| WLAN | WPS, MSSID isolation |
| VPN | L2TP/PPTP/GRE, VxLAN |
| NAT | Port forwarding, DMZ, ALG |
| Firewall | IP/MAC/URL filter, access control, block port scanner, SYN flood |
| Network Mgmt | TR069 |
| Diagnostics | TCP dump, ping, trace route |
| Statistics | • LTE status • Connection, system up time • Device status • DHCP client list • Wi-Fi station list • Firewall status |
| Maintenance | • Date and time setting • Reboot • Restore factory settings • Restore/back up config files • Firmware upgrade locally or OTA |
| System Logs | Operating, run-time, filter / select / display / export |
| Antenna Selection | N/A |
| ENVIRONMENTAL | |
| Operating Temperature | 14°F to 113°F / -10°C to 45°C |
| Storage Temperature | -4°F to 158°F / -20°C to 70°C |
| Operating Humidity | 5% to 95% |
