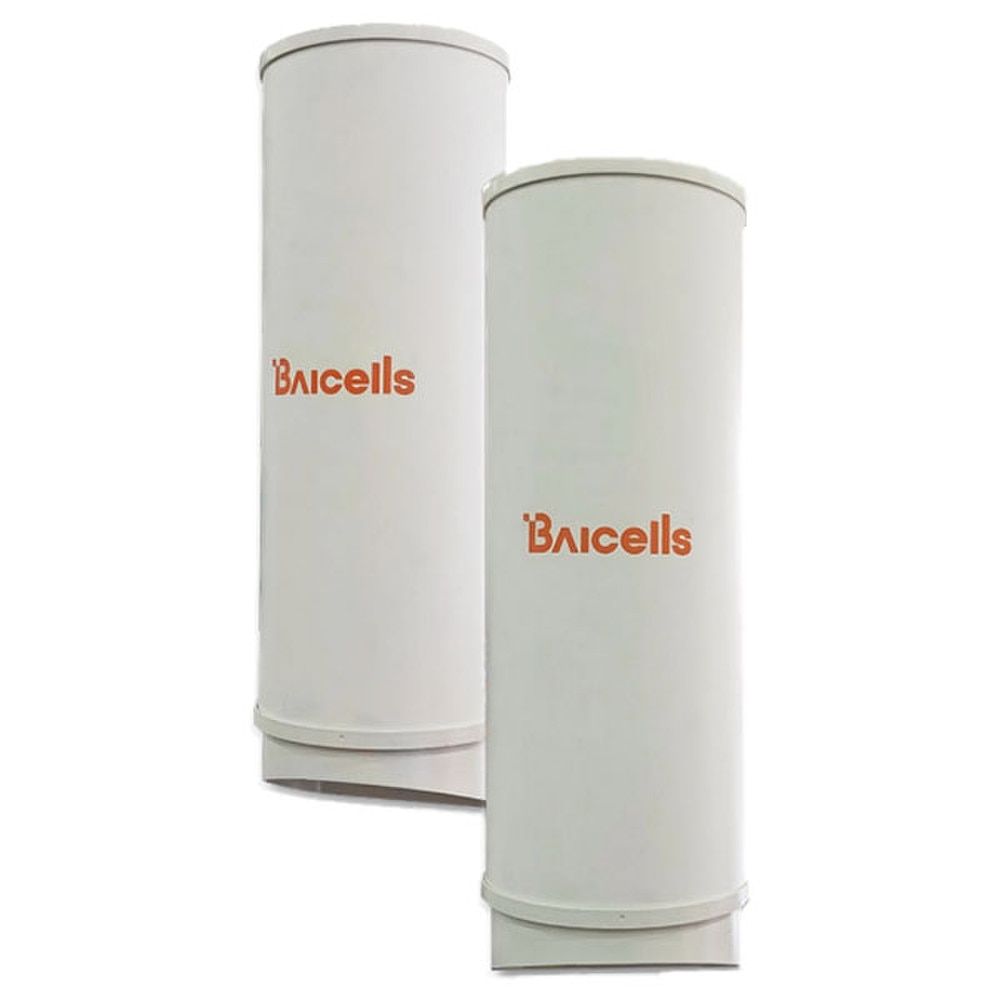

BaiCells Nova442i Outdoor TDD eNodeB Base Station– LTE Release 15, 4x2W (33 dBm), 1 GE, 3.5 GHz (3550 MHz–3700 MHz), B48, Built-in Antenna
- SKU: mBS31010
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
BaiCells mBS31010
Nova442i Outdoor TDD eNodeB Base Station– LTE Release 15, 4x2W (33 dBm), 1 GE, 3.5 GHz (3550 MHz–3700 MHz), B48, Built-in Antenna
The Baicells Nova442i is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x2W eNB operates in Carrier Aggregation (CA) mode or Dual Carrier (DC) mode.
In CA mode, Nova442i supports 2CC (two Component Carriers) DL/UL CA. 2CC DL/UL CA doubles DL/UL peak throughput compared to a single carrier by aggregating two separate spectrum resources into a virtual contiguous spectrum resource.
In DC mode, each carrier is treated as an independent cell, supporting 96+96 users, with each cell supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova442i in DC mode simplifies and streamlines the deployment of split sectors
In addition, HaloB (an embedded EPC option) is available on the Nova442i as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.
This product has a standard one-year warranty; an extended warranty is available.
Features:
- Standard LTE TDD Band 48
- GUI-based local and remote Web management
- Excellent Non-Line-of-Sight (NLOS) coverage
- Peak rate: Up to DL 290 Mbps with 2x20 MHz bandwidth
- 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources
- Suitable for private and public deployments; any IP based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
- 96 RRC connected users per carrier (96+96 in DC mode); upgradeable to higher capacity in future releases
- Built-in RF antenna and GPS antenna
- Integrated small cell form factor for quick and easy installation
- Configured out of the box to work with Baicells CloudCore
- HaloB as embedded EPC solution
- Supports Transparent Bridge Mode
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with Self-Organizing Network (SON) capabilities
- Interoperable with all standard LTE Evolved Packet Core (EPC)
- Supports TR-069 network management interface
- Lower power consumption, which reduces OPEX
Specifications
Specifications
| Standard | LTE TDD RAN (3GPP R15 compliant) |
| TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
| Frequency Band | B48 (3550 MHz–3700 MHz) |
| Channel Bandwidth | SC: 5/10/15/20 MHz CA: 40 MHz as maximum aggregated bandwidth |
| Multiplexing | MIMO: 2x2 (DL) |
| Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 RJ-45 Ethernet interface (1 GE) |
| Power Supply | PoE++, IEEE 802.3bt standard |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, 1588v2, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, SNMPv2c, TR-069, SSH, Embedded EPC |
| VLAN/VxLAN | 802.IQ/VxLAN |
| LED Indicators | 4 x status LEDs: CELL1/CELL2/ALM/PWR |
| User Capacity | Up to 96 RRC connected users per cell (4 users per TTI) • SC/CA: 96 RRC connected users • DC: 96+96 RRC connected users |
| Maximum Deployment Range | 12 kilometers |
| Latency | 30 milliseconds |
| Receive Sensitivity | -100 dBm (per channel) |
| Modulation | MCS0 (QPSK) to MCS27 (256 QAM) DL: QPSK, 16 QAM, 64 QAM, 256 QAM UL: QPSK, 16 QAM, 64 QAM |
| Transmit Power Range | 0 to 36 dBm per channel (combined +42 dBm, configurable) (1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Supported |
| Synchronization | GPS, 1588v2 |
| Voice | VoLTE* |
| NSA | Supported |
| SON | Self-Organizing Network • Automatic setup • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| EPC | HaloB (Embedded EPC) |
| Traffic Offload | Local breakout |
| Layer 2 Support | Transparent Bridge Mode |
| Maintenance | • Local/Remote Web maintenance • Online status management • Performance statistics • Fault management • Local/Remote software upgrade • Logging • Connectivity diagnosis • Automatic start and configuration • Alarm reporting • User information tracing • Signaling trace |
| RF Antenna | Internal 4T4R omni high-gain antenna • Horizontal Beamwidth 360° • Vertical Beamwidth 7.5° • Polarization: ±45° |
| GPS Antenna | Internal GPS antenna |
| Antenna Gain | 12 dBi |
| Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| PHYSICAL | |
| Surge Suppression | Yes |
| TECHNOLOGY | Differential mode: ±10 KA Common mode: ±20 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP55 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -49°F to 158°F / -45°C to 70°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 70 W, maximum 90 W |
| Weight | 21.2 lb/9.6 kg |
| Dimensions | Diameter: 7.9 in/200 mm Height: • With lightning rod: 33.7 in/857 mm • Without lightning rod: 23.9 in/608 mm |
| Installation | Pole mount |
