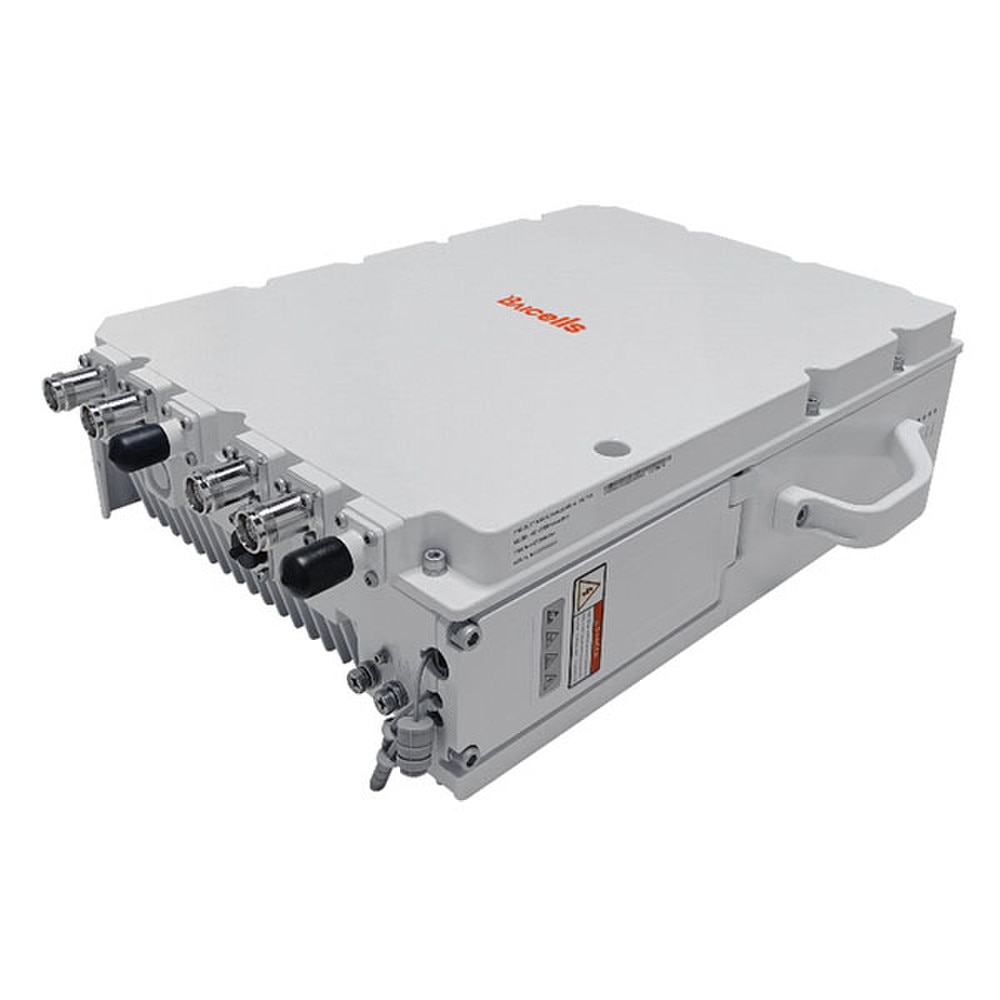

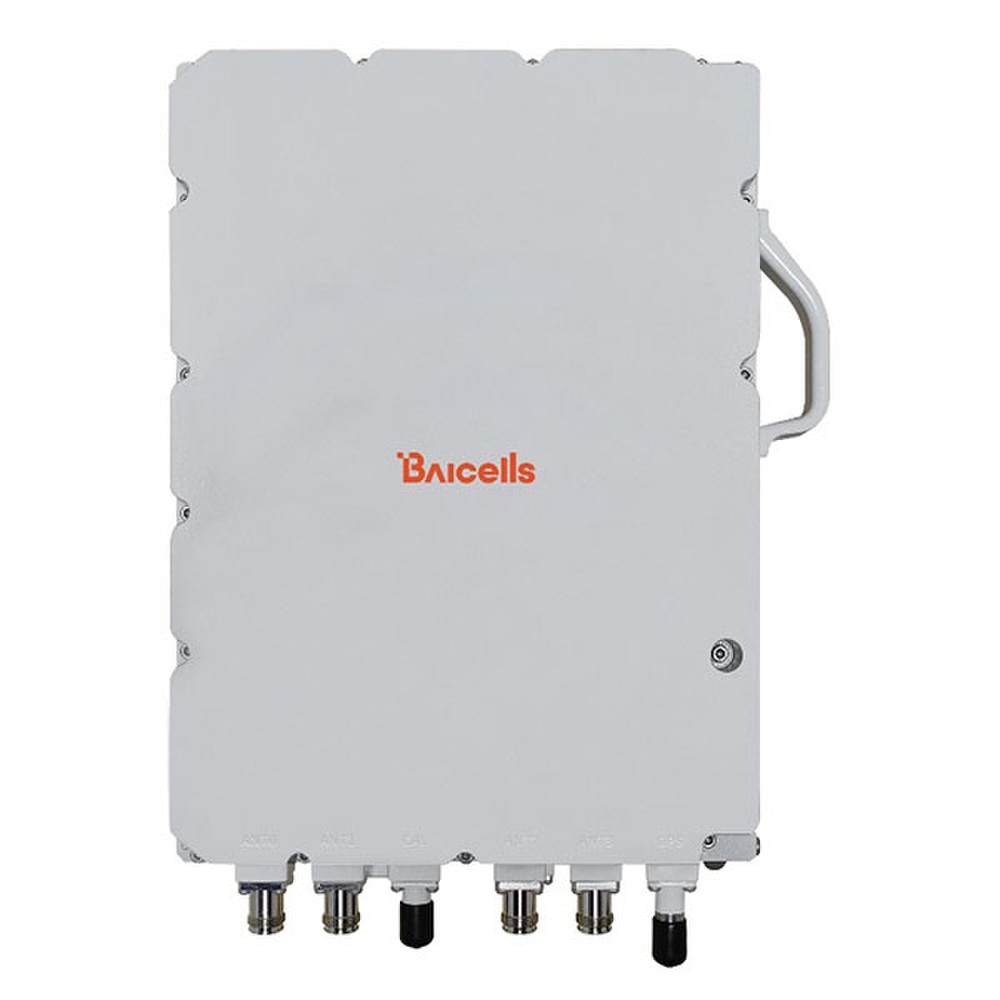

BaiCells Nova452 2.5GHz 4x40W Outdoor TDD eNodeB Base Station, 2496-2690MHz, Band 41, 4T4R, 48VDC, External Antenna, 1xOPT + 1xOPT
- SKU: sBS77410
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
BaiCells sBS77410
Nova452 2.5GHz 4x40W Outdoor TDD eNodeB Base Station, 2496-2690MHz, Band 41, 4T4R, 48VDC, External Antenna, 1xOPT + 1xOPT
The Baicells Nova452 is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD and hardware-ready for New Radio (NR) 5G technology. This 4x40 W eNB operates in Carrier Aggregation (CA) mode or Dual Carrier (DC) mode.
In CA mode, Nova452 supports 2CC (2 Component Carriers) DL/UL CA. 2CC DL/UL CA doubles DL/UL peak throughput compared to a single carrier by aggregating two separate spectrum resources into a virtual contiguous spectrum resource.
In DC mode, each carrier is treated as an independent cell, supporting 512+512 users, with each cell supporting 5, 10, 15, 20, or 100 MHz (for NR only) bandwidth. Using a Nova452 in DC mode simplifies and streamlines the deployment of split sectors.
In addition, HaloB (an embedded EPC option) is available on the Nova452 as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.
Features:
- Standard LTE TDD Bands 40/41/42
- GUI-based local and remote Web management
- Excellent Non-Line-of-Sight (NLOS) coverage
- Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
- Peak rate: Up to DL 580 Mbps with 4x4 MIMO Carrier Aggregation (CA) mode and UL 70 Mbps with CA mode
- Supports 512 RRC-connected users per cell, 512+512 RRC-connected users in DC mode
- Supports downlink of 256 QAM
- Integrated small cell form factor for quick and easy installation
- Configured out-of-the-box to work with Baicells CloudCore
- HaloB as an embedded EPC solution
- Supports Transparent Bridge Mode
- Plug-and-play with Self-Organizing Network (SON) capabilities
- Interoperable with all standard LTE Evolved Packet Core (EPC)
- Highly secure with equipment certification against potential intrusion risk
- Supports TR-069 network management interface
- Lower power consumption, which reduces OPEX
- Supports software update to 5G or 4G+5G RRU
Specifications
Specifications
| Standard | LTE TDD RAN (3GPP R15 compliant) |
| TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
| Frequency Band | B40 (2300 MHz–2400 MHz) B41 (2496 MHz–2690 MHz) B42 (3400 MHz–3600 MHz) |
| Channel Bandwidth | SC: 5/10/15/20 MHz, or Max 100 MHz in NR mode CA: 40 MHz as maximum aggregated bandwidth |
| Multiplexing | 4x4 MIMO (DL) |
| Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 optical (SFP) Ethernet interface (1 GE) 1 optical (SFP) CPRI or eCPRI (config as RRU mode) |
| Power Supply | -40 VDC to -57 VDC, nominal -48 VDC AC adaptor (multi-national standards) |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, TR-069, SSH, Embedded EPC |
| VLAN/VxLAN | 802.IQ/VxLAN |
| LED Indicators | 5 x status LED RUN/ACT/ALM/LINK0/LINK1 |
| PERFORMANCE | |
| User Capacity | Up to 512 RRC connected users per cell • SC/CA: 512 RRC connected users • DC: 512+512 RRC connected users |
| Maximum Deployment Range | 60 kilometers |
| Latency | 30 milliseconds |
| Receive Sensitivity | -103 dBm (per channel) |
| Modulation | MCS0 (QPSK) to MCS27 (256 QAM) DL: QPSK, 16 QAM, 64 QAM, 256 QAM UL: QPSK, 16 QAM, 64 QAM |
| Transmit Power Range | 27 dBm to 46 dBm per channel (combined +52 dBm, configurable) (1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Supported |
| Synchronization | GPS |
| Voice | VoLTE, Circuit Switched Fallback (CSFB)* |
| SON | Self-Organizing Network • Automatic setup • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| EPC | HaloB (Embedded EPC) |
| Traffic Offload | Local breakout |
| Layer 2 Support | Transparent Bridge Mode |
| Maintenance | • Local/Remote Web maintenance • Online status management • Performance statistics • Fault management • Local/Remote software upgrade • Logging • Connectivity diagnosis |
| LINK BUDGET | |
| Antenna Connection | 4T4R external high-gain antenna with 4.3-10 connectors |
| GPS Antenna | External GPS antenna, N-Type connector |
| VSWR | < 1.5 |
| Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| RET | AISG2.0, 24 VDC to 30 VDC, RS-485, 3GPP TS 25.461 |
| PHYSICAL | |
| Surge Suppression | Yes |
| Power Interface Lightning Protection | Differential mode: ±10 KA Common mode: ±20 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP66 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -49°F to 158°F / -45°C to 70°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 520 W, maximum 560 W |
| Weight | Without bracket: 31 lb/14.1 kg With pre-installed bracket: 32.4 lb/14.7 kg |
| Dimensions (HxWxD) | 16.5 x 12.4 x 4.8 inches 420 x 315 x 123 millimeters |
| Installation | Pole or wall mount |
