Baicells Atom OD04 2.5GHz 14dBi Gen 2

(0)No Reviews yet
US$‎275.00
Tariff/Surcharge Fee: US$13.50
  • SKU: EG7035E-M1
  • Manufacturer: Baicells
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

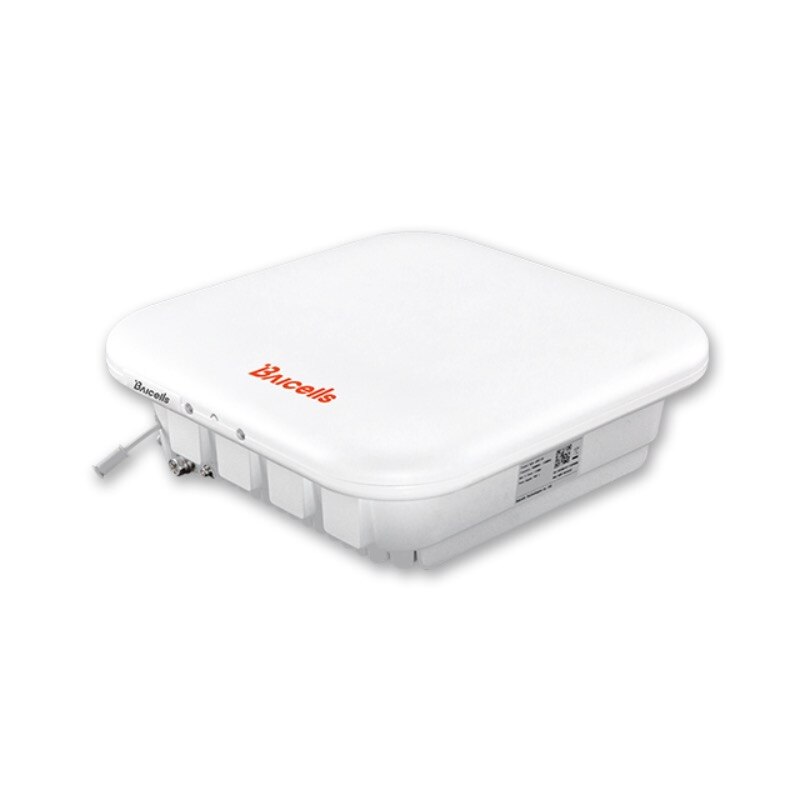

Baicells EG7035E-M1

Atom OD04 2.5GHz 14dBi Antenna Gen2 Outdoor LTE CPE, CAT 4, 1T2R, Bands 40/41

The Baicells Atom OD04 Outdoor High-Gain User Equipment (UE) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. The UE operates with standardized LongTerm Evolution (LTE) Time Division Duplexing (TDD) to enable high-speed, wireless communcations. Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the UE simultaneously.


Features

  • Supports LTE TDD Bands 40/41/42/43/48
  • 2.5 GHz or 3.5 GHz models
  • Complies with 3GPP Release 9 Cat4 standards
  • 100 Mbps Ethernet interface
  • GUI-based local and remote Web management
  • TR069 network management protocol support
  • Cell lock, SIM lock, and pin lock
  • Built-in bipolar, directional, high-gain LTE antenna
  • User-friendly LED status indicators
  • Power supply with PoE
  • Pole or wall mount
  • Wi-Fi assisted alignment

Specifications

Specifications EG7035E-M1

BASIC SPEC
LTE Standard 3GPP Release 9 Cat4
ETH LAN Port 1 RJ-45 port 10/100 auto-sensing, autoMDX, PoE
LED Indicators MIU, LTE, SIM, LAN, PWR, LTE Signal
USIM 1.8V/3V 2FF
Restore Button Press for 10 seconds to restore the UE to its factory settings
Power Supply Input: Universal range 100V to 240V AC Output: PoE (24VDC, 0.5A)
Dimensions (HxWxD)9.8 x 9.8 x 3.2 inches 248 x 248 x 80 millimeters
Weight 4 lbs / 1800 g
RF SPEC
LTE Mode TDD
Channel Bandwidth 5/10/15/20 MHz
MAX Output Power 23± 2dBm
Frequency Bands 40/41/42/43/48 and customized
Peak Rate (20 MHz) DL 100 Mbps, UL 10 Mbps (2:7)
Modulation DL: QPSK, 16QAM, 64QAM UL: QPSK, 16QAM
Receive Sensitivity -94 dBm @ QPSK, 20 MHz, 25°C
Antenna Type Internal directional, 1T2R
Antenna Gain 19.5 dBi @ 3.x GHz, 2 ports 14 dBi @ 2.x GHz, 2 ports
Antenna Polarization ± 45°
Antenna Efficiency > 70%
Isolation ≤ -20dB
VSWR ≤ 2.5
Horizontal Beamwidth (3 dB) • 35 ±5° @ 2.x GHz, 2 ports
• 25 ±5° @ 3.x GHz, 2 ports
Vertical Beamwidth (3 dB) • 35 ±5° @ 2.x GHz, 2 ports
• 25 ±5° @ 3.x GHz, 2 ports
SOFTWARE SPEC
Network Mode NAT or Bridge
IP Protocol IPv4/IPv6
SIM PIN management, SIM lock
Network Connection Auto or manual
LTE Scan Mode Full band scan, frequency lock
WLAN WPS, MSSID isolation, VLAN
VPN L2TP, GRE, PPTP, L2 VxLAN
NAT Port forwarding/trigger, DMZ, ALG
Firewall IP/MAC/URL filter; access control; block port scanner/SYN flood; SPI filter
Network Mgmt TR069, SNMP
Diagnostics TCP dump, ping, traceroute Statistics LTE status; connection / system up time; device status; DHCP client list; Wi-Fi station list;
Maintenance Date and time setting; reboot; restore factory settings; restore/back up config files; firmware upgrade locally or OTA
System Logs Operating; run-time; filter / select / display / export
WI-FI SPEC
Standard IEEE 802.11b/g/n
Channel Bandwidth 20/40 MHz
Frequency 2.4 GHz
Peak Rate • 802.11b: 11 Mbps
• 802.11g: 54 Mbps
• 802.11n: 300 Mbps
Modulation DSSS/CCK, OFDM
Receive Sensitivity • -64 dBm @ 65 Mbps, typical for 802.11n • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b
Max Output Power 10 ± 3 dBm
Antenna Type Internal omni, 1T1R
Antenna Gain 0 dBi
ENVIRONMENTAL SPEC
Operating Temperature -40°F to 131°F / -40°C to 55°C
Storage Temperature -40°F to 158°F / -40°C to 70°C
Operating Humidity 5% to 95%
Ingress Protection Rating IP67
