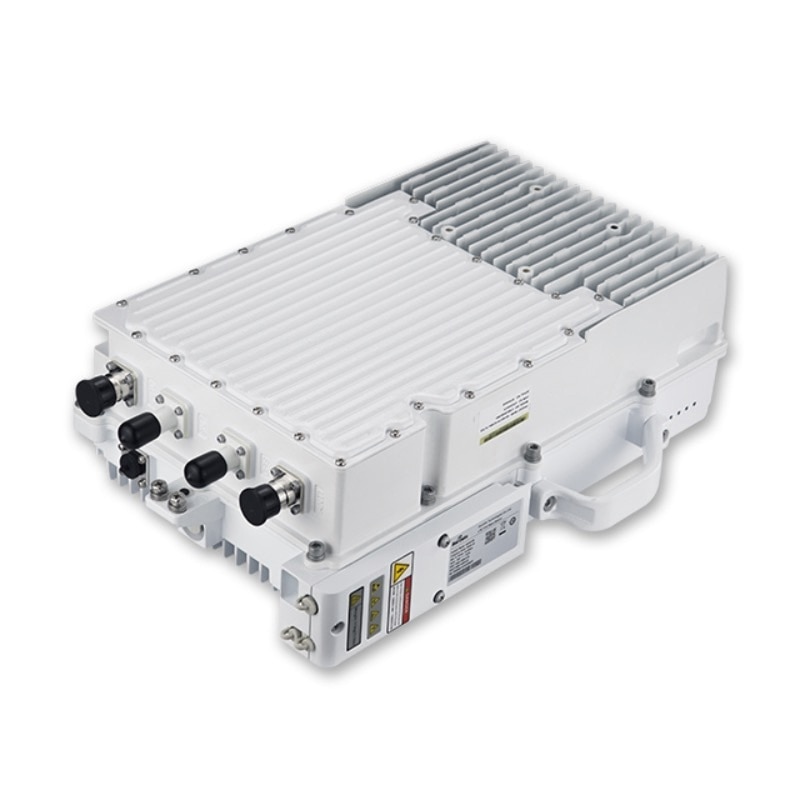

Baicells Nova246 2.5GHz 2x20W Outdoor TDD eNodeB Base Station - LTE Release 12, 2x20 Watt (43 dBm), 2 Ports, Band 41
- SKU: sBS81040
$7,499.00
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
Baicells sBS81040
Nova246 2.5GHz 2x20W Outdoor TDD eNodeB Base Station - LTE Release 12, 2x20 Watt (43 dBm), 2 Ports, Band 41
The Baicells Nova246 eNodeB (eNB) is an advanced dual carrier (DC) outdoor Long-Term Evolution (LTE) product that operates in Time Division Duplexing (TDD) mode. This eNB provides users with highspeed broadband wireless access to the Internet using 2*20 W output power (2x2 MIMO with 20 W output each channel). This eNB operates in Dual Carrier (DC) or Single Carrier (SC) mode.
In DC mode, each carrier is treated as an independent cell, supporting 96+96 users with each cell supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova246 in DC mode simplifies and streamlines the deployment of split sectors.
This product comes with a standard one-year warranty; an extended warranty is available.
Features:
- Standard LTE TDD Bands 38/40/41/48
- GUI-based local and remote Web management
- Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
- External high-gain antenna
- Higher transmission power for extended coverage
- Excellent Non-Line-of-Sight (NLOS) coverage
- Peak rate (per unit): Up to DL 220 Mbps, UL 28 Mbps with 2x20 MHz bandwidth
- 96 RRC connected users per carrier, 96+96 in DC mode
- Integrated small cell form factor for quick and easy installation
- Configured out-of-the-box to work with Baicells CloudCore
- HaloB as embedded EPC solution
- Supports Citizens Broadband Radio Service (CBRS)
- Supports RET function AISG 2.0
- Plug-and-play with Self-Organizing Network (SON) capabilities
- Interoperates with standard LTE Evolved Packet Core (EPC)
- Supports TR-069 network management interface
- Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor SmartUPS
Specifications
Specifications
| Standard | LTE TDD RAN (3GPP Release 13.5 compliant) |
| TDD UL/DL Configuration | 0, 1, 2 (with Special Subframe Configuration 7) |
| Frequency Band | B38 (2570 MHz–2620 MHz) B40 (2300 MHz–2400 MHz) B41 (2496 MHz–2690 MHz) B48 (3550 MHz–3700 MHz) |
| Channel Bandwidth | 5/10/15/20 MHz (Any combination) |
| Multiplexing | MIMO: 2x2 (DL) |
| Security | Radio: SNOW 3G/AES-128/ZUC Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 RJ-45 Ethernet interface (1 GE) and 1 optical (SFP) interface |
| Power Supply | -40 VDC to -57 VDC, nominal -48 VDC AC adaptor (multi-national standards) |
| Protocols Used | IPv4, UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, 1588v2, DHCP |
| Network Management | IPv4, HTTP/HTTPs, TR-069, SSH, Embedded EPC |
| VLAN | 802.IQ |
| LED Indicators | 4 x status LED CELL1/CELL2/ALM/PWR |
| User Capacity | Up to 96 RRC connected users per cell (4 users per TTI) SC: 96 RRC connected users DC: 96+96 RRC connected users |
| Maximum Deployment Range | 28 kilometers |
| Latency | 30 milliseconds |
| Receive Sensitivity | -102 dBm (per channel) |
| Modulation | -102 dBm (per channel) |
| Transmit Power Range | 0 to 46 dBm (combined, with 1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Yes |
| Synchronization | GPS |
| Voice | VoLTE, Circuit Switched Fallback (CSFB) to GSM |
| SON | Self-Organizing Network Automatic setup Automatic Neighbor Relation (ANR) PCI confliction detection |
| EPC | HaloB (Embedded EPC) |
| RET Support | Yes |
| Traffic Offload | Local breakout |
| Layer 2 Support | Transparent Bridge Mode* |
| Maintenance | Local/Remote Web maintenance Online status management Performance statistics Fault management Local/Remote software upgrade Logging Connectivity diagnosis Automatic start and configuration Alarm reporting User information tracing Signaling trace |
| Antenna Connection | N-Type connector for external high-gain antenna |
| GPS Antenna | External GPS antenna, N-Type connector |
| VSWR | < 1.5 |
| Power Control | UL Open-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| PHYSICAL | |
| Surge Suppression | Yes |
| Power Interface Lightning Protection | Differential mode: ±10 KA Common mode: ±20 KA |
| Standard | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP66 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -49°F to 158°F / -45°C to 70°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 155 W, maximum 180 W |
| Weight | 24.9 lb/11.3 kg (with pre-installed bracket) |
| Dimensions (HxWxD) | With joint: 17.6 x 11.3 x 4.4 inches 447 x 287 x 113 millimeters Without joint and handle: 17.0 x 9.7 x 4.4 inches 431 x 247 x 113 millimeters |
| Installation | Pole or wall mount |
