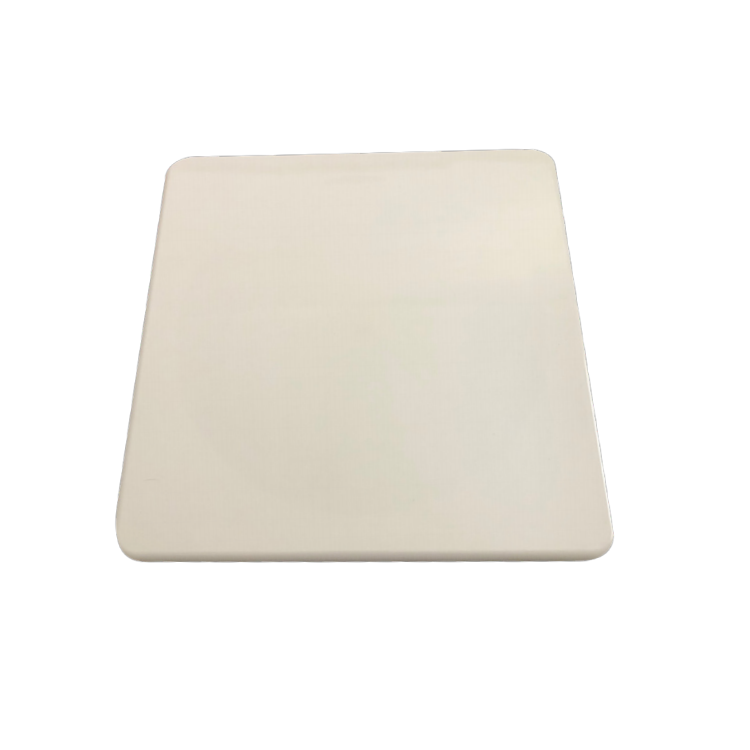

Cambium 2.4GHz/5GHz, 11dBi/13dBi, 30 degree, 4x4 panel antenna with N-female connectors for XH2-240
US$495.56
- SKU: ANT-D30-4X4-01
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks ANT-D30-4X4-01
2.4GHz/5GHz, 11dBi/13dBi, 30 degree, 4x4 panel antenna with N-female connectors for XH2-240.
To optimize the overall performance of a Cambium Xirrus WLAN in an outdoor/indoor deployment it is important to understand how to maximize coverage with the appropriate antenna selection and placement.
Features:
- Integrated 4x4 30° Antenna for optimized directional coverage
- 11.5dBi Gain on 2.4 GHz and 14dBi Gain 5 GHz

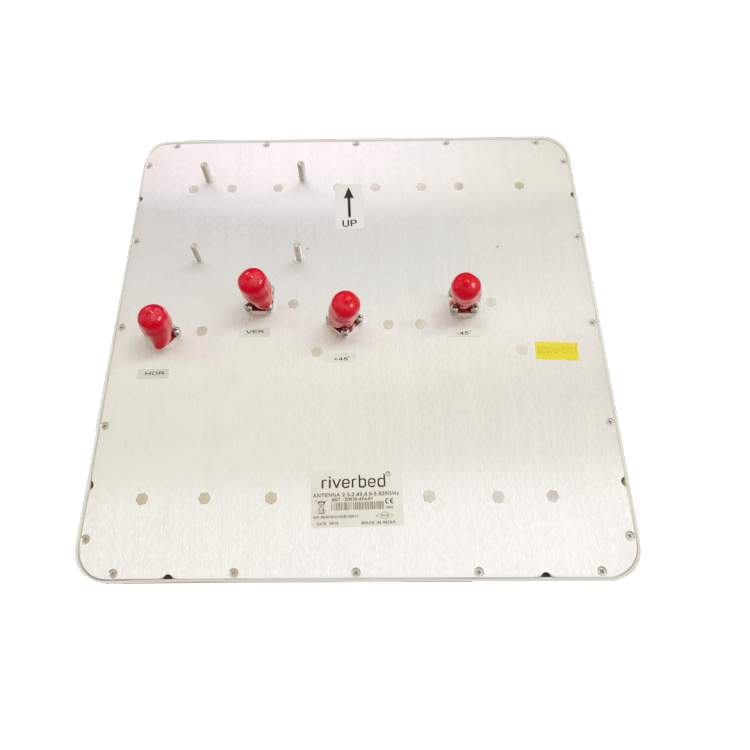

- 4x N-Type Female connectors
- Perfect for use with XH2-240
Specifications
Specifications ANT-D30-4X4-01
| Frequency Range (GHz) | 2.4–2.5, 5.15-5.85 |
| Impedance | 50 ohms |
| Peak Gain | 2.4 GHz 11.5dBi, 5 GHz 14dBi |
| Polarization (2.4 GHz & 5 GHz) | 2x +/- 45° Slant |
| 3dB Beamwidth Az (H) | 2.4 GHz & 5 GHz - 60° Typ. |
| 3dB Beamwidth El (V) | 2.4 GHz - (30° Typ.), 5 GHz - (13° Typ.) |
| Maximum Power | 6 W max. |
| Connector | N-Female x4 |
| Dimensions | 12in x 12in x 0.6in |
| Weight | 0.45 lbs |
| Operating Temp | -40° C to +55° C |
| Mounting Options | Pole Mount Included |
