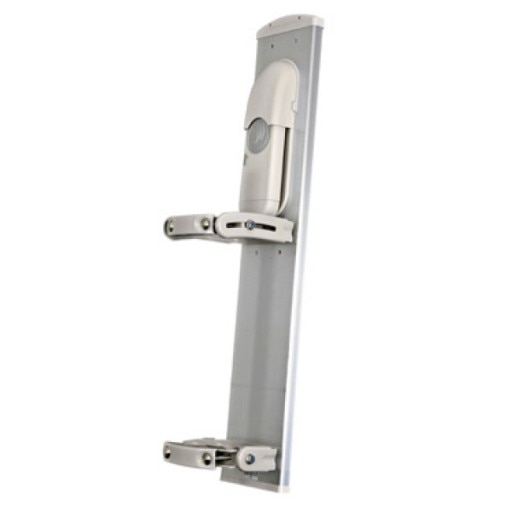

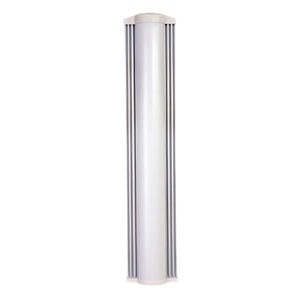

Cambium 2.4 GHz ePMP 1000 90 Degree Sector Antenna

  • SKU: C024900D004A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: 39 In Stock    (updated live)
    39 In stock at College Station

Cambium 2.4 GHz ePMP 1000 90 Degree Sector Antenna

This is a variable beamwidth antenna, which can be used in 90 and 120 degree deployments, in unsynchronized or GPS synchronized deployments and is designed to work with all connectorized ePMP 1000 radios. As a result, connectivity is delivered to a larger subscriber base with fewer channels and less equipment, ultimately improving return on investment.

2x2 Multiple Input and Multiple Output (MIMO gives the ePMP 1000 antennas the benefits of dual stream operation, provides interference mitigation by enabling the radios to select the best signal quality and allows for successful deployment of wireless networks in difficult environments.

Easy Configuration is supported by adjustable hardware and a simple one-step connection with the radio. As an added bonus, a dedicated place is designed for a GPS antenna, providing more flexibility.

ePMP 1000 Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.

When deployed with a sector antenna, the ePMP 1000 GPS Sync Radio can be configured as a GPS Synchronized Access Point serving ePMP Integrated Radios configured as Subscriber Modules. When deployed with a high gain point to point antenna, the ePMP GPS Sync Radio can be configured to be a GPS Synchronized backhaul Master, forming a PTP link with another ePMP Radio module.

Shipping Information:

Dimensions (W x H x L)9.84cm X 5.91cm X 32.28cm
Weight11.24 lbs

Specifications C024900D004A

Frequency range5150 – 5875MHz
Antenna typeAccess point sector
Gain15 dBi-90 degree 14dBi-120 degree
VSWR1.6:1 MAX - 90 degree 1.7:1 MAX- 120 degree
Port to port isolation25 dB
6DB Beamwidth-azimuth90°
3DB Beamwidth-azimuth65°
3DB Beamwidth-azimuth
PolarizationDual Linear, Horizontal / Vertical
Maximum input power5 W
Input impedance50 Ohms
Front-to-back ratio>32 dB
Cross polarization>18 dB
Mechanical size (MM)827h x 161w x 59d (excl AP & bracket) - 827h x 161w x 231d (incl AP & bracket)
Antenna weight3.1 kg (6.8 lb), w/o bracket kit
Mounted antenna weight(W/ AP) 5.5 kg (12.1 lb)
Antenna connector2 x male RP-SMA
Wind survival190 km/h (118 mph)
Wind loading (@216 KM/H)FRONT: 318 N (72 LBF) - side: 160 N (36 LBF)
Pole mounting hardwareQuick release, 1.5” TO 4.5” dia. pole
Mechanical down tilt-3° TO 12°
