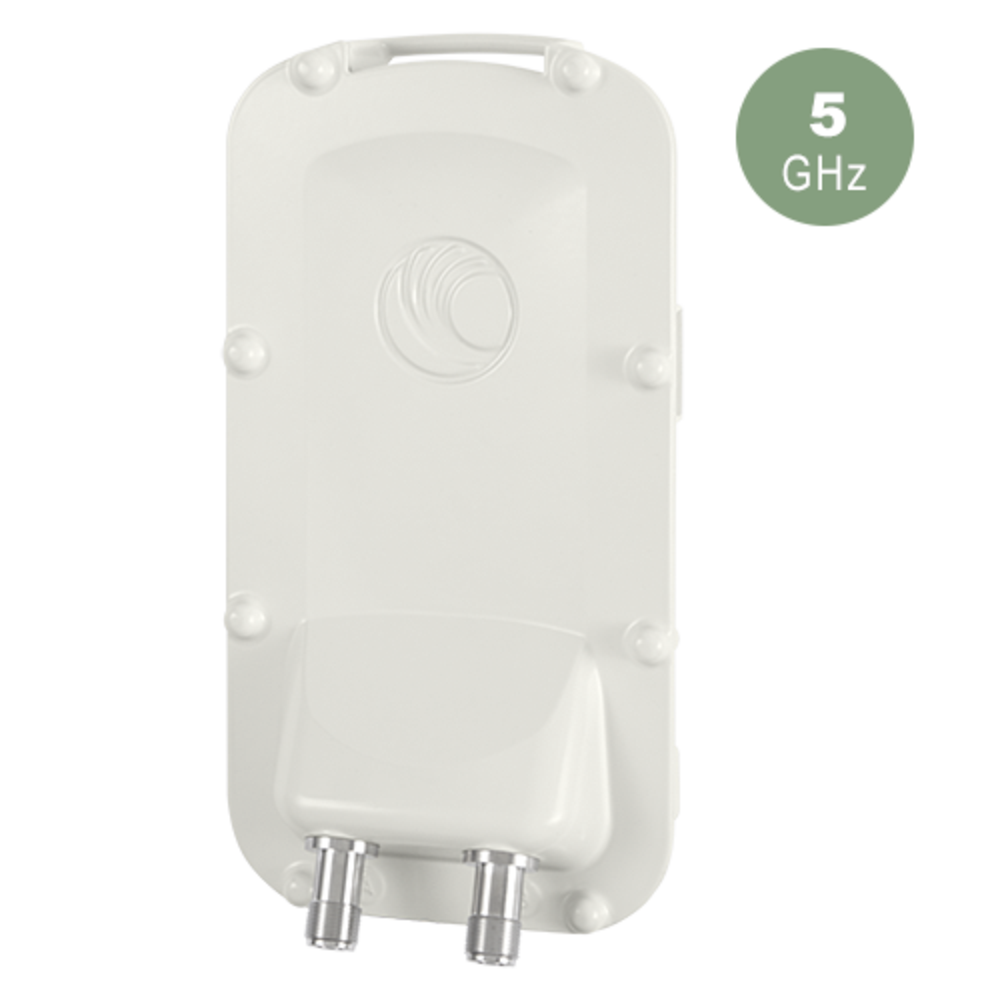

Cambium 5 GHz PMP 450i Integrated Access Point, 90 degree (FCC), LITE
US$2,122.71
- SKU: C050045AL06C
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C050045AL06C
5 GHz PMP 450i Integrated Access Point, 90 degree (FCC), LITE
The Cambium 5 GHz PMP 450i LITE 90º Connectorized Access Point is part of Cambium Networks industry-leading 450 platform. The series includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Features:
- An ultra-wide band radio supports 4900 MHz to 5925 MHz with dynamic interference filtering, improved transmit power and better receive sensitivity.
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAXLOC certified models available for hazardous deployments.
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
Specifications
Specifications
| Weight | 16.98 lbs |
| Dimensions (HxWxD) | 59.5 x 15.7 x 15.5 cm (23.4” x 6.2” x 6.1”) |
| Channel Spacing | Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz |
| Frequency Range | 5 GHz: 4900 - 5925 MHz |
| Channel Width | 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Performance | |
| Subscriber Per Sector | Up to 238 - *Lite models limited to 20 Subscribers, License Key (C000045K010A) available to remove this limit |
| ARQ | Yes |
| Maximum Deployment Range | Up to 40 miles (64 km) |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM5 or UGPS) |
| Quality of Service | Diffserve QoS |
| Link Budget | |
| Integrated Sector Antenna | 90° Azimuth, 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual polarity, or 10° Azimuth, 10° Elevation (3dB rolloff), Dual polarity |
| Antenna Gain | 17 dBi ± integrated 90° sector , 23 dBi ± 1 dBi integrated 10° sector |
| Maximum Transmit Power | +28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations) |
| Maximum EIRP | +43 dBm combined output (may be limited by regulations) |
| VSWR | 1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Antenna Connection | 50 ohm, N-Type (Connectorized version only) |
| Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500 V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A |
| Mean Time Between Failure | >40 Years |
| Dust and Water Ingress Protection Rating | IP67, IP66 |
| Temperature / Humidity | -40°C to +75°C (-40°F to +167°F), 0-100% condensing |
| Weight | Approx. 2.0 kg (4.5 lbs) |
| Wind Survival | 322 km/h (200 mi/h) |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
| External Icing | NEMA 250-2003 Section 5.6 |
| Dimensions (H x W x D) | 26.0 x 13.4 x 6.4 cm (10.3” x 5.3” x 3.3”) |
| Power Consumption | 15 W typical, 18 W max, Using Aux port PoE for another device will increase power draw |
| Input Voltage | 48-59 V DC, 802.3at compatible |
| Security | |
| Encryption | "FIPS-197 128-bit AES, 256-bit AES (Requires Optional License) |
| Certifications | |
| ISED Canada | 109AO-50450I |
| FCC ID | QWP-50450I |
| CE | EN 301 893 v2.1.1 EN 302 502 v2.1.1 |
