Cambium 5 GHz PTP 450i END, Integrated High Gain Antenna (FCC)

(0)No Reviews yet
  • SKU: C050045B004B
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
2 in stock
College Station
2 In stock

Product Information

Cambium Networks C050045B004B

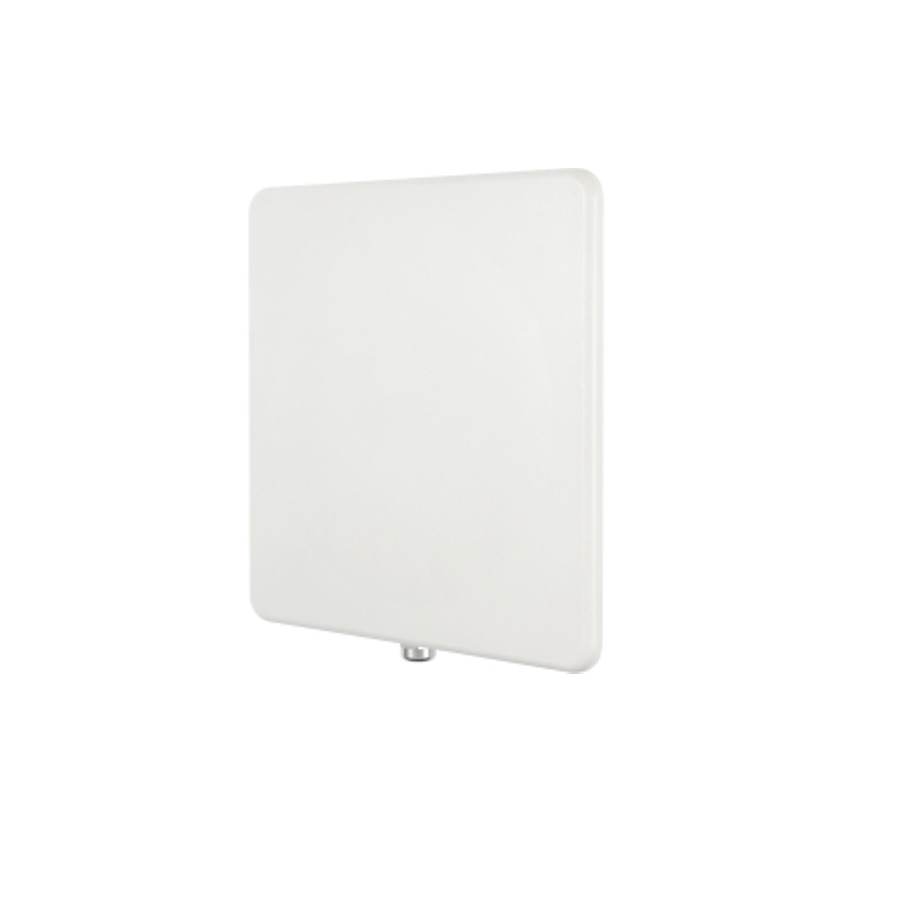

5 GHz PTP 450i END, Integrated High Gain Antenna (FCC)

PTP 450i wide band 5GHz END with Integrated High Gain (23 dBi) flat panel antenna (FCC). Cambium Network’s 450i product platform is one of the most scalable industrial-grade wireless broadband solution available. Covering a wide frequency band from 4900-5925 MHz in a single radio, the 450i triples the processing power of the standard PMP 450 series. The high processing power allows for 40MHz channel widths doubling capacity.

The 450i series radios also utilize higher transmit power, increased receive sensitivity and dynamic interference filtering to provide up to 3 times the range of the standarxd 450 series radios. The rugged industrial design and construction allows the 450i to withstand the harshest environmental conditions. Power scheme makes the 450i radios 802.3at compatible and provides an auxillary port with PoE output for connecting cameras or other PoE powered edge devices.


Specifications C050045B004B

Broadband Frequency Band5 GHz
Broadband Antenna TypeIntegrated
Frequency Range4900-5925 MHz
Data Rate120 Mbit/s
Security/EncryptionFIPS-197 128-bit AES
Maximum Data Rate120 Mbit/s
Channel Bandwidth5 MHz, 10 MHz or 20 MHz
Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
