  • Cambium PTP 670 (4.9 to 6.05 GHz) Integrated 23 dBi ODU (FCC)

Cambium PTP 670 (4.9 to 6.05 GHz) Integrated 23 dBi ODU (FCC)

  • SKU: C050067B001B
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped directly from other locations when out of stock. Email me when this product is in stock!
    Out of stock at College Station
US$‎2,886.84

Specifications KPPA-2GHZDP65S-WOC1

RF BandsWide-band operation 4.9 to 6.05GHz (allowable frequencies and bands are dictated by individual country regulations)
Channel Sizes5/10/15/20/30/40/45MHz channels, depends on individual country regulations
Spectral Efficiency10bps/Hz maximum
Channel SelectionBy Dynamic Spectrum Optimization or manual intervention. Automatic selection on start-up and continual self-optimization to avoid interference
Maximum Transit PowerUp to 27dBm
System GainUp to 164dB with Integrated Antenna
Modulation / Error CorrectionFast Preemtptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual-payload MIMO

Cambium Networks C050067B001B

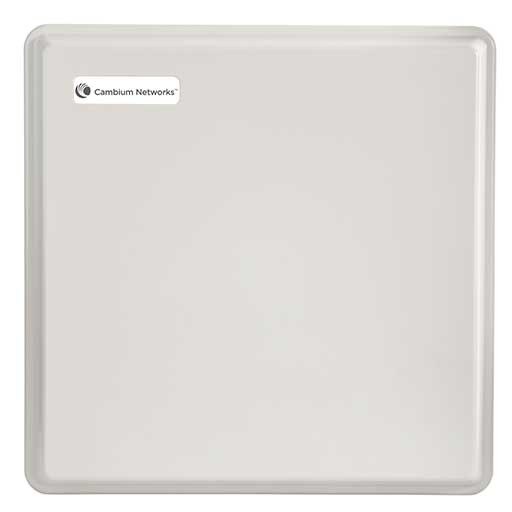

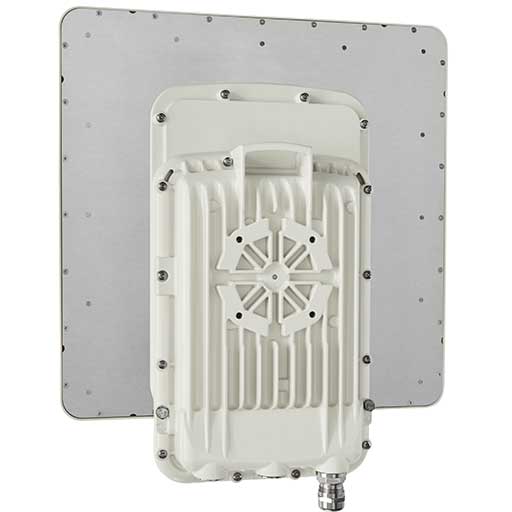

PTP 670 (4.9 to 6.05 GHz) Integrated 23 dBi ODU (FCC)

PTP 670 is a Cambium Networks solution designed to be used for temporary or emergency deployments, using its HCMP technologies. This model includes a 23dBi integrated panel antenna, but does not come with a power supply.

Features:

  • Frequency band: 4.9 to 6.05GHz
  • Maximum of 450MB/s and maximum range of 155 miles in a PTP topology
  • Up to 8 remote notes and maximum of 25 mile range in a HCMP topology
  • FIPS-197 128/256-bit AES encryption
  • IEEE 1588v2 and Synchronous Ethernet (SyncE)

Shipping Information:

Dimensions (W x H x L)15.75cm X 5.12cm X 19.29cm
Weight7.72 lbs
