Cambium Networks PTP 670 Connectorized END with AC Supply (FCC)

(0) No Reviews yet
  • SKU: C050067H001B
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$2,495.00

Specifications C050067H001B

RF Bands Wide-band operation 4.9 to 6.05GHz (allowable frequencies and bands are dictated by individual country regulations)
Channel Sizes 5/10/15/20/30/40/45MHz channels, depends on individual country regulations
Spectral Efficiency 10bps/Hz maximum
Channel SelectionBy Dynamic Spectrum Optimization or manual intervention. Automatic selection on start-up and continual self-optimization to avoid interference
Maximum Transit Power Up to 27dBm
Modulation / Error Correction Fast Preemtptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual-payload MIMO
Duplex Scheme Time Division Duplex (TDD)
Adaptive or fixed transmit/receive duty cycles Split frequency operation allows separate transmit and receive frequencies where allowed by regulation
Optional TDD synchronization using PTP-SYNCH Module
Antenna Operates with a selection of separately-purchased single and dual polarity antennas through (2) N-Type female connectors
Range Up to 155 miles (250km)
Security FIPS-197 compliant 128/256-bit AES Encryption (optional) HTTPS and SNMPv3
Identity-based user accounts Configurable password rules
User authentication and RADIUS support
Event logging and management; optional logging via syslog
Disaster recovery and vulnerability management
Ethernet Protocol IEEE 802.3
Latency 1-3 milliseconds one direction
QoS Extensive QoS supporting up to 8 Queues
Packet Classification Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority
Packet Performance Line rate (>850k packets per second)
Timing Transport Synchronous Ethernet; IEEE 1588v2
Frame Support PTP Mode: Jumbo frame up to 9600 bytes
HCMP Mode: 2000 bytes per frame
Flexible I/O (2) Gigabit Ethernet copper ports: Gigabit Port 1: Data + PoE power input
Gigabit Port 2: 802.3at PoE output port (1) SFP port: Single-mode fiber, multi-mode fiber, or copper
Gigabit Ethernet options available
T1/E1 TDM Support (8) T1/E1 TDM (Network Indoor Unit (NIDU)) G.823-compliant timing
DC power input (compatible with AC+DC Power Injector output)
Network Management In-band and out-of-band management (OOBM)
System Management IPv6/IPv4 dual-stack management support
Web access via browser using HTTP or HTTPs/TLS3 SNMP v1, v2c and v3, MIB-II & proprietary PTP MIB
Online spectrum analyzer (no impact on payload traffic or network operation)
Installation Built-in audio and graphical assistance for link optimization
Remote Modules Master Up to 8 Nodes
Channel Bandwidth 20 and 40MHz
Spectral Efficiency 8bps/Hz Max
Line Rate Packet per Second 850K pps
Latency in HCMP Mode 2 to 4ms one way (typically)
Dimensions 294 x 318 x 90mm (8.0 x 12.5 x 3.5")
Weight 3.1kg (6.8lbs), including bracket
Operating Temperature -40 to 140°F (-40 to 60°C), including solar radiation
Dust-Water Intrusion Protection IP66 and IP67
Wind Speed Survival 200mph (322kph)
Power Supply 32 to 104°F (0 to 40°C) 35W, 90-240VAC, 50/60Hz
Power Consumption 30W maximum (up to 70W with 802.3at device on auxilliary products)
Protection and Safety UL60950-1, IEC60950-1, EN60950-1, CSA-C22.2 No. 60950-1, CB approval for Global
Radio 4.9GHz: FCC Part 90Y, RSS-111
5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 210 Issue 8; EN 302 502; EN 301 893 Eire ComReg 02/71R1, UK Approval to IR2007
EMC Europe - EN301 489-1 and -4

Cambium Networks C050067H001B

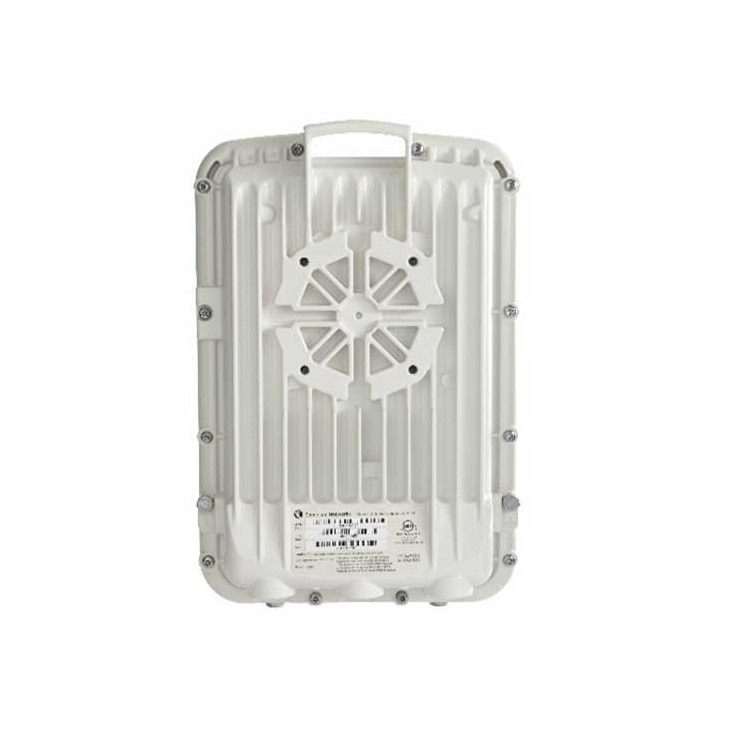

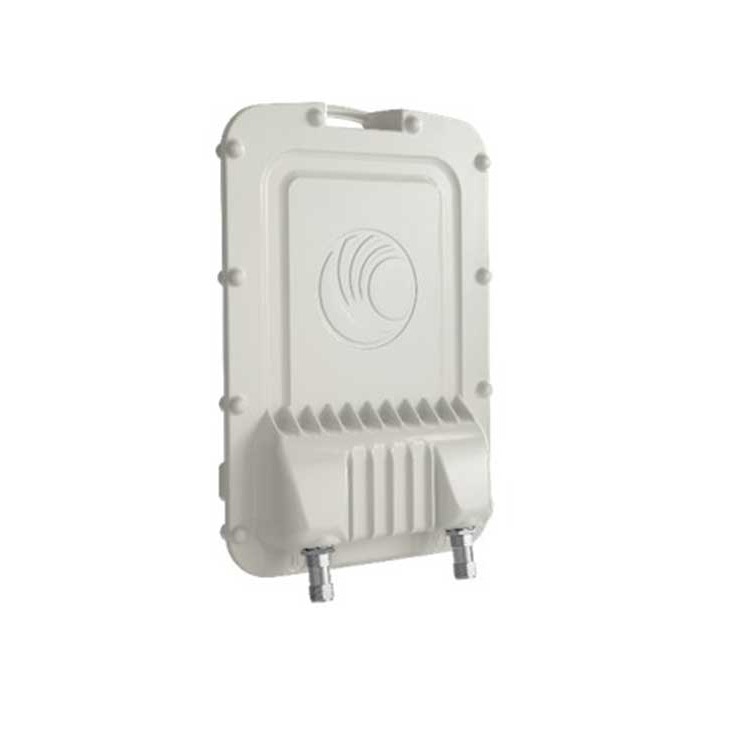

Cambium PTP 670 4.9 - 6.05GHz Connectorized Radio w/ 2 N-Female Connectors (with AC power supply)

The C050067H001B is a standalone PTP 670 radio with power supply. The standout feature of PTP 670 is the High Capacity MultiPoint (HCMP) capabilities. It''s an ideal solution for temporary or emergency network deployments, as one radio can connect up to 8 remote nodes.

Service providers, government public safety agencies and critical infrastructure operators such as utilities and energy companies have experienced massive growth in bandwidth demands for reliable and secure broadband connectivity. The nature of these deployments for small-cell backhaul, disaster recovery, video surveillance and Wi-Fi backhaul drive variety of deployment topologies.

Now with the Point-to-Point (PTP) 670 Series solution, Cambium Networks combines best-in- class spectral efficiency and reliability with high-capacity multipoint (HCMP) deployment flexibility. With up to 450 Mbps aggregate throughput, PTP 670 systems let you flexibly, reliably and securely handle today's needs.

FLEXIBLE, SPECTRALLY-EFFICIENT, SELF-OPTIMIZING SUB-6GHZ SOLUTION

Based on our widely deployed, field-proven non-line-of sight (NLOS) technology, PTP 670 wireless Ethernet bridges offer an array of features that gives more capacity, greater operational flexibility and the highest spectral efficiency in the industry. PTP 670 systems provide 4.9 to 6.05 GHz, multi-band flexibility in a single radio and operate in channel sizes from 5 to 45 MHz.

With Dynamic Spectrum Optimization (DSO), PTP 670 systems are constantly optimizing the channel of operation to maximize link reliability and performance. The systems can provide up to 99.999% availability in virtually any environment, including non-line-of-sight, long-distance line-of-sight, high interference, over water, desert and through extreme weather conditions. As a result, you can deliver more throughput with less spectrum and less investment in the most challenging environments.

HIGH-CAPACITY MULTIPOINT and POINT-TO-POINT IN SINGLE SOLUTION

With the PTP 670, operators now have the flexibility to deploy not only in Point to Point topologies but also in High-Capacity Multipoint (HCMP) Applications. HCMP allows up to eight remote nodes to connect to a single master radio. This opens up new deployment models that enable rapid deployment, simplify planning and by using the same hardware regardless of topology a rapid return on investment in equipment and training. Whether your organization is an enterprise, government agency or service provider, PTP 670 systems are ideal solutions for a wide array of applications such as T1/E1 and fiber replacements or extensions, video surveillance backhaul, LTE, macro-cell & small-cell backhaul, last-mile access, disaster recovery, network redundancy and building-to-building campus connectivity.


Features:

  • Frequency band: 4.9 to 6.05GHz
  • Maximum of 450MB/s and maximum range of 155 miles in a PTP topology
  • Up to 8 remote notes and maximum of 25 mile range in a HCMP topology
  • FIPS-197 128/256-bit AES encryption
  • IEEE 1588v2 and Synchronous Ethernet (SyncE)
