Cambium PTP 670 Integrated 23dBi END with AC Supply (FCC)

  • SKU: C050067H003B
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: 9 In Stock    (updated live)
    9 In stock at College Station

Cambium Networks C050067H003B

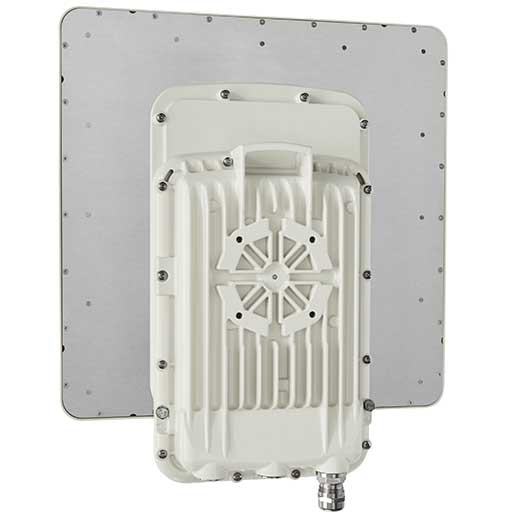

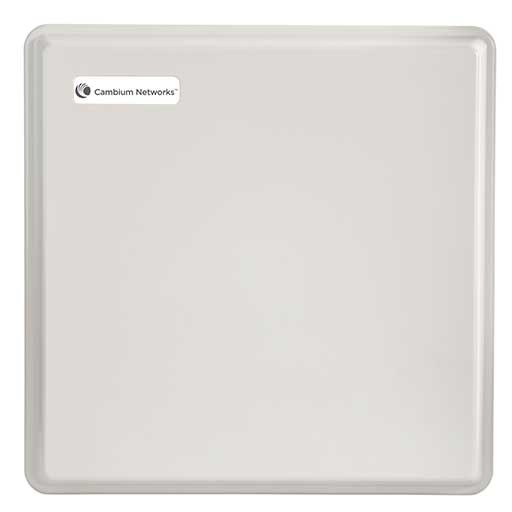

PTP 670 Integrated 23dBi END with AC Supply (FCC)

C050067H003B is a all integrated outdoor 23dbi power injector, and operates on frequencies between 4.9 and 6.05GHz. PTP 670 uses HCMP (High Capacity MultiPoint) for a quick setup, useful for applications such as temporary emergency networks.


  • Frequency band: 4.9 to 6.05GHz
  • Maximum of 450MB/s and maximum range of 155 miles in a PTP topology
  • Up to 8 remote notes and maximum of 25 mile range in a HCMP topology
  • FIPS-197 128/256-bit AES encryption
  • IEEE 1588v2 and Synchronous Ethernet (SyncE)

Shipping Information:

Dimensions (W x H x L)20.08cm X 6.3cm X 22.83cm
Weight14.36 lbs

Specifications C050067H002B

  • RF Bands: Wide-band operation 4.9 to 6.05GHz (allowable frequencies and bands are dictated by individual country regulations)
  • Channel Sizes: 5/10/15/20/30/40/45MHz channels, depends on individual country regulations
  • Spectral Efficiency: 10bps/Hz maximum
  • Channel Selection: By Dynamic Spectrum Optimization or manual intervention. Automatic selection on start-up and continual self-optimization to avoid interference
  • Maximum Transit Power: Up to 27dBm
  • Ethernet Protocol: IEEE 802.3
  • Latency: 1-3 milliseconds one direction
  • QoS: Extensive QoS supporting up to 8 Queues
  • Timing Transport: Synchronous Ethernet; IEEE 1588v2
  • Remote Modules Master: Up to 8 Nodes
  • Channel Bandwidth: 20 and 40MHz
