Cambium ePMP 4500C 5 GHz Access Point Radio (FCC) (US cord)
- SKU: C058940A112A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C058940A112A
ePMP 4500C 5 GHz Access Point Radio (FCC) (US cord)

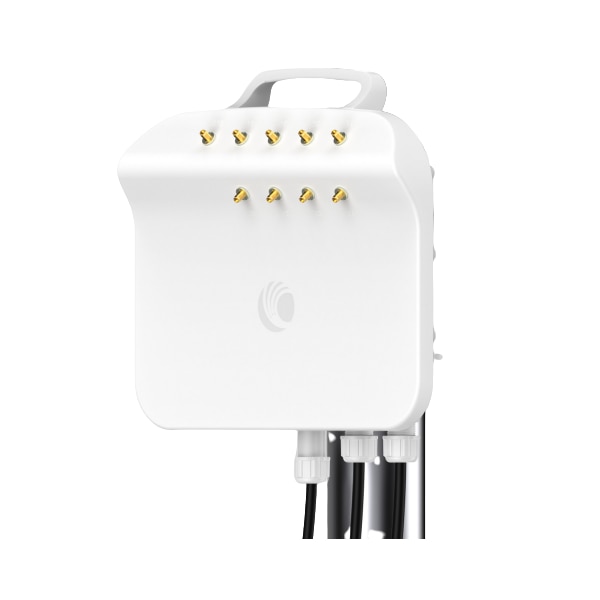

The ePMP 4500C features the same radio as ePMP 4500, but without the integrated antenna, allowing the end user to install their own sectored antennas or horns.
Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. The ePMP 4500 Access Point series is the fourth generation ePMP based on 802.11ax technology. ePMP 4500 Access point interoperate with Force 400 Subscriber modules and support backward compatibility to Force 300 Subscriber modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 4500 to deliver consistently high-quality service plans to a large number of end users.
All ePMP 4500 Access point series are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge
Specifications
Specifications C058940A112A
| Channel Width | 20 | 40 | 80 MHz |
| Proprietary Physical Layer | 8x8 MU-MIMO/OFDMA based on 802.11ax underlying technology |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910–6135 MHz |
| (Note: Allowable frequencies and bands are dictated by individual country regulations) | |
| MAC Layer (Media Access Control) | Cambium Proprietary |

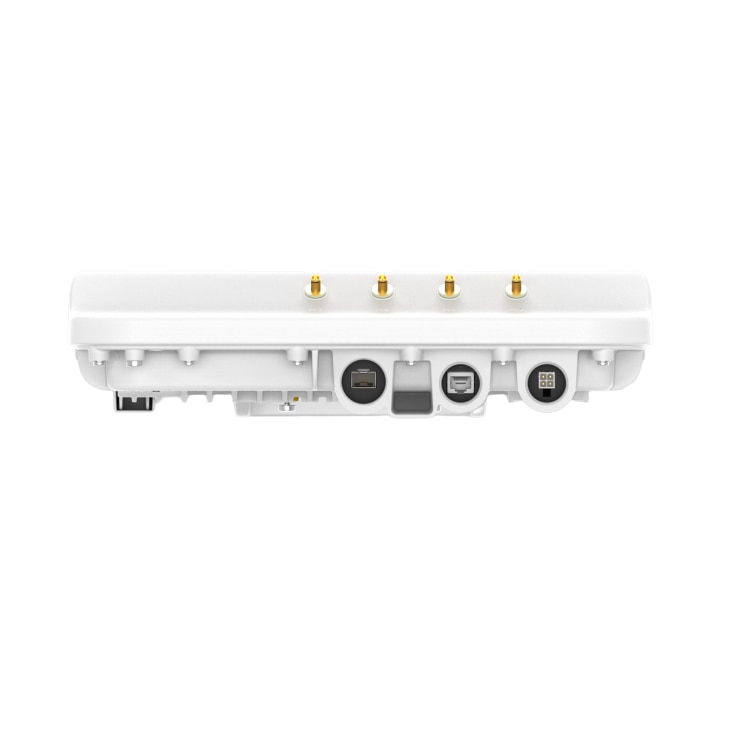

| Ethernet Interfaced | 100/1000 BaseT, rate auto negotiated, 802.3bt compliant & Aux SFP port |
| Supported Powering Methods | 56V 30W PoE (included), standard 802.3bt PoE Supply, or cnMatrix Tower Switch, or wired DC input |
| Protocols Used | IPv4/IPV6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPS, SNMPv2c, SSH |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ePMP 4500C | |
| Subscribers per Sector | Up to 120 |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -62 dBm (per chain |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -57dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| GPS Synchronization | Yes, via Internal GPS or Cambium Sync |
| QoS (Quality of Service) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
| Performance cont’d | |
| ePMP 4500C | |
| Transmit Power Range | 0 to +33 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna | N/A |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | TBD kg (TBD lbs) with clamp |
| Dimensions (H x W x D) | 356 x 284 x 74 mm (14.0 x 11.2 x 2.9 in) |
| Power Consumption | 32W Maximum |
| Input Voltage | 44V to 59V |

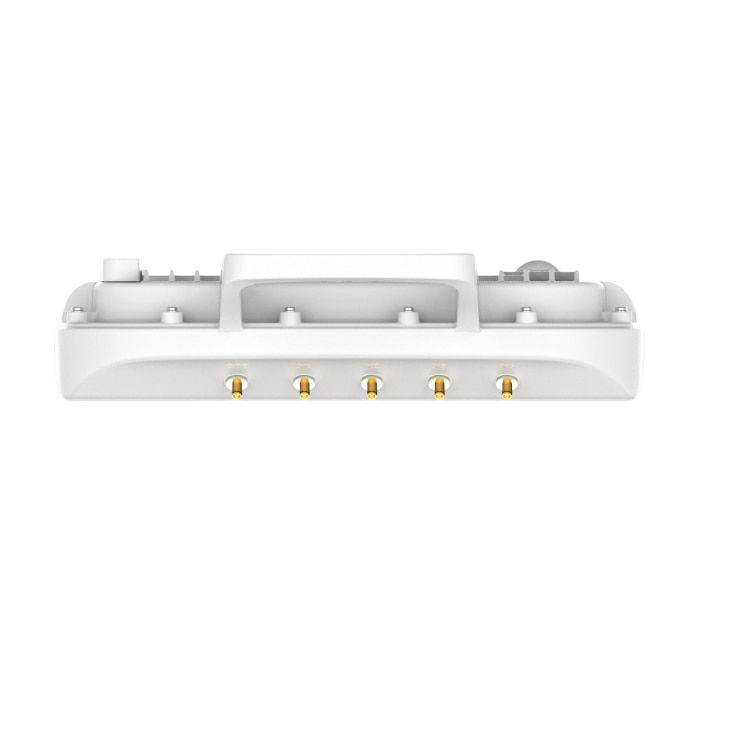

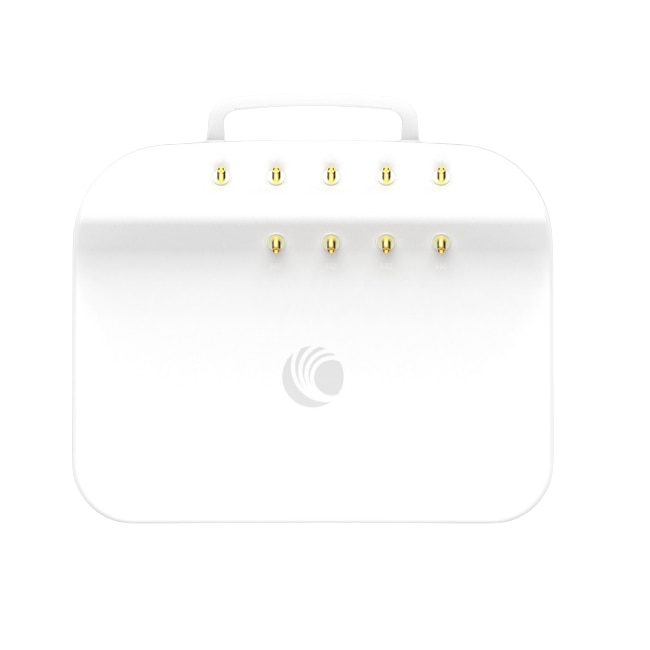

| Sector Antenna Connection | 8 x 50 ohm, RP (Reverse Polarity) SMA |
| GPS Antenna Connection | 1 x 50 ohm, SMA; external GPS External GPS Puck included in packaging |
| Security | |
| Encryption | All models: 128-bit AES (CCMP mode) |
| Certifications | |
| ePMP 4500C | |
| FCCID | Z8H89FT0065 |
| Industry Canada Cert | 109W-0065 |
| CE | See Cambium Website for Declaration of Conformity |
