  • Cambium cnMatrix EX1010-P, Intelligent Ethernet PoE+ Switch, 8 1-Gbps and 2 1-Gbps SFP fiber ports - no pwr cord

Cambium cnMatrix EX1010-P, Intelligent Ethernet PoE+ Switch, 8 1-Gbps and 2 1-Gbps SFP fiber ports - no pwr cord

(0)No Reviews yet
US$‎465.16
  • SKU: MX-EX1010PxA-1
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
4 in stock
College Station
4 In stock

Product Information

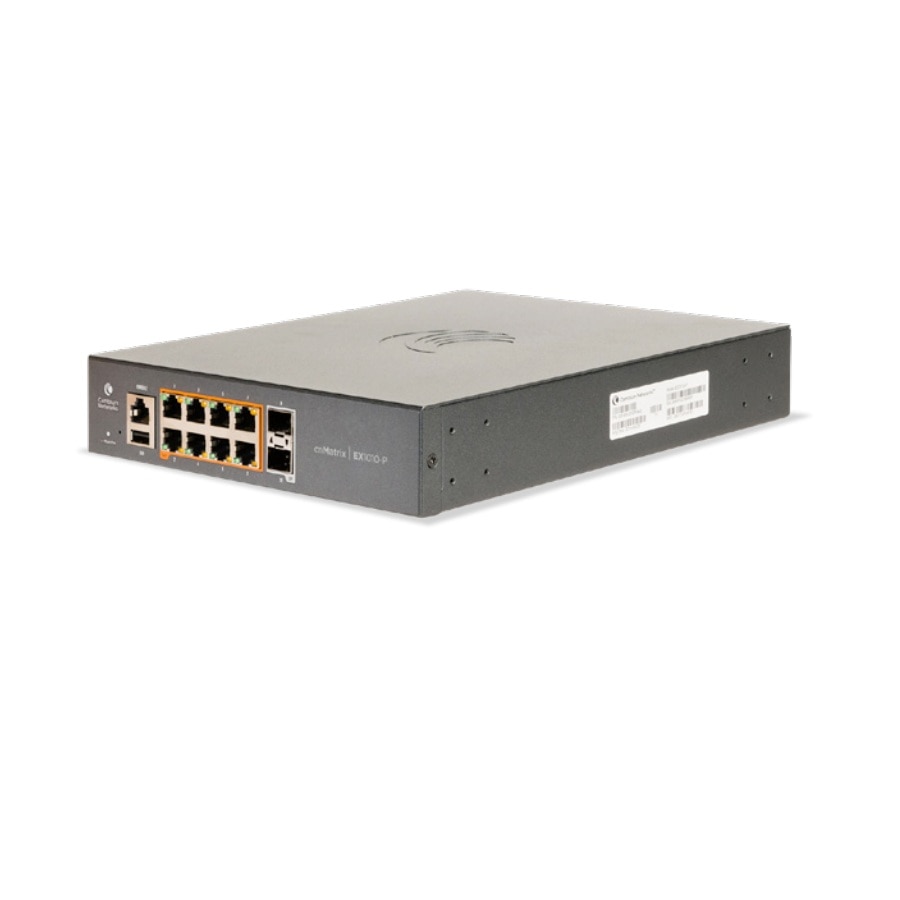

Cambium Networks MX-EX1010PxA-1

cnMatrix EX1010-P, Intelligent Ethernet PoE+ Switch, 8 1-Gbps and 2 1-Gbps SFP fiber ports - no pwr cord.

Enterprise grade L2, L3 functionality, Policy Based Automation. Supports cnMaestro cloud or on-premises management. 5-Year Limited Lifetime Warranty , USA Only


cnMatrix™ EX1000 Series Switches

  • Zero-touch deployments
  • Policy Based Automation
  • Auto device profiling and segmentation
  • Non-blocking, line-rate architecture with fully featured L2 switching

Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix platform of switches provides:

  • Easy and simple, free cloud (or on premise) management with cnMaestro[tm] or XMS*
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution

The cnMatrix series of fully managed switches delivers full Layer 2 capabilities with enhanced access security. These switches come with a 5-Year Limited Lifetime Warranty.

Specifications

Specifications MX-EX1010PxA-1

Throughput20 Gbps
Non-Blocking ThroughputYes
Forwarding Rate in Mpps(64 Byte Packets)120
10/100/1000 Ports8
2.5 G Portsn/a
Uplink Ports4 SFP
PoE+ Enabled Ports(802.3af/at)4
Serial ConsoleYes
USBYes
Out-of-Band Management Portn/a
Rack Mount KitOptional
Internal FansFanless
Reset ButtonYes
MAC Address Table Size16K
Flash Storage128 MB
DRAM512 MB
VLANs4K
Port Based VLANs4K
LACP/Trunking8 LAGs/8 links per LAG
QoS Priority Queues8
PVRST32
Ingress/Egress ACL128
Static ARP Entries512
ARP Entries512
Static Routes64
Dynamic Routingn/a
IGMP Multicast Groups256
Policy Based AutomationYes
Power Supply100-240 VAC
Max Switch Power (WITH TRAFFIC)10.54 W
MTBF (Hours)338,917
Weight1.99 kg (4.375 lb)
Dimensions21 x 4.4 x 25 cm (8.26 x 1.75 x 9.85 in)
CPU Speed800 MHz
LEDs Per PortLink/Activity, PoE
PoE+ Power Budget75 W
PoE+ Voltage54 V
PoE Max Power Per Port30 W
Rack MountableYes 1U
Temperature Ranges0°C to 50°C (32°F to 122°F)
Operating Humidity55° at 95% RH
Storage Temperature-40°C to 70°C (-40°F to 158°F)
