  • Cambium cnMatrix EX2052-P, Intelligent Ethernet PoE Switch, 48 1G and 4 SFP+ Fixed 540 - No power cord

Cambium cnMatrix EX2052-P, Intelligent Ethernet PoE Switch, 48 1G and 4 SFP+ Fixed 540 - No power cord

(0)No Reviews yet
US$‎2,669.87
  • SKU: MXEX2052GxPA01
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
4 in stock
College Station
4 In stock

Product Information

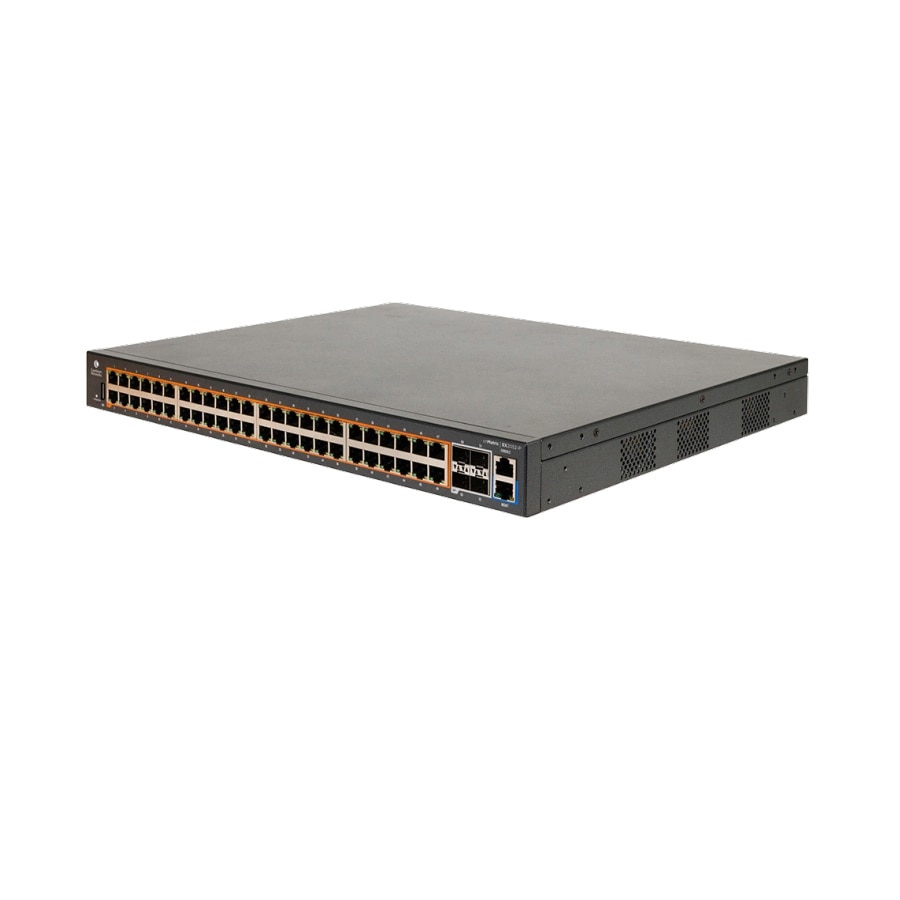

Cambium Networks MXEX2052GxPA01

cnMatrix EX2052-P, Intelligent Ethernet PoE Switch, 48 1G and 4 SFP+ Fixed 540 - No power cord

cnMatrix EX2052-P, Intelligent Ethernet PoE Switch, 48 1G and 4 SFP+ Fixed 540 - no pwr cord. Enterprise grade L2, L3 functionality, Policy Based Automation, includes lifetime Cloud or on-premises management. 5-Year Limited Lifetime Warranty.

Specifications

Specifications MXEX2052GxPA01

Throughput 176 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10/100/1000 Ports 48
2.5 G Ports n/a
Uplink Ports 4 SFP+
PoE+ Enabled Ports (802.3af/at) 48
Serial ConsoleYes
USB Yes
Out-of-Band Management PortYes
Rack Mount KitYes
Internal Fans Yes
Reset ButtonYes
MAC Address Table Size 16K
Flash Storage 128 MB
DRAM 512 MB
VLANs 4K
Port Based VLANs 4K
LACP/Trunking 8 LAGs/8 links per LAG
QoS Priority Queues
PVRST 32
Ingress/Egress ACL 128
Static ARP Entries 512
ARP Entries 512
Static Routes 64
Dynamic Routing 512
IGMP Multicast Groups 256
Policy Based AutomationYes
Hardware Spec
Power Supply100-240 VAC
Max Switch Power (WITH TRAFFIC)39.24 W
MTBF (Hours)238,063
Weight5.4 kg (11.90 lb)
Dimensions44 x 4.4 x 35 cm (17.3 x 1.75 x 13.78 in)
CPU Speed800 MHz
LEDs Per PortLink/Activity, PoE
PoE+ Power Budget400 W
PoE + Voltage 54 V
