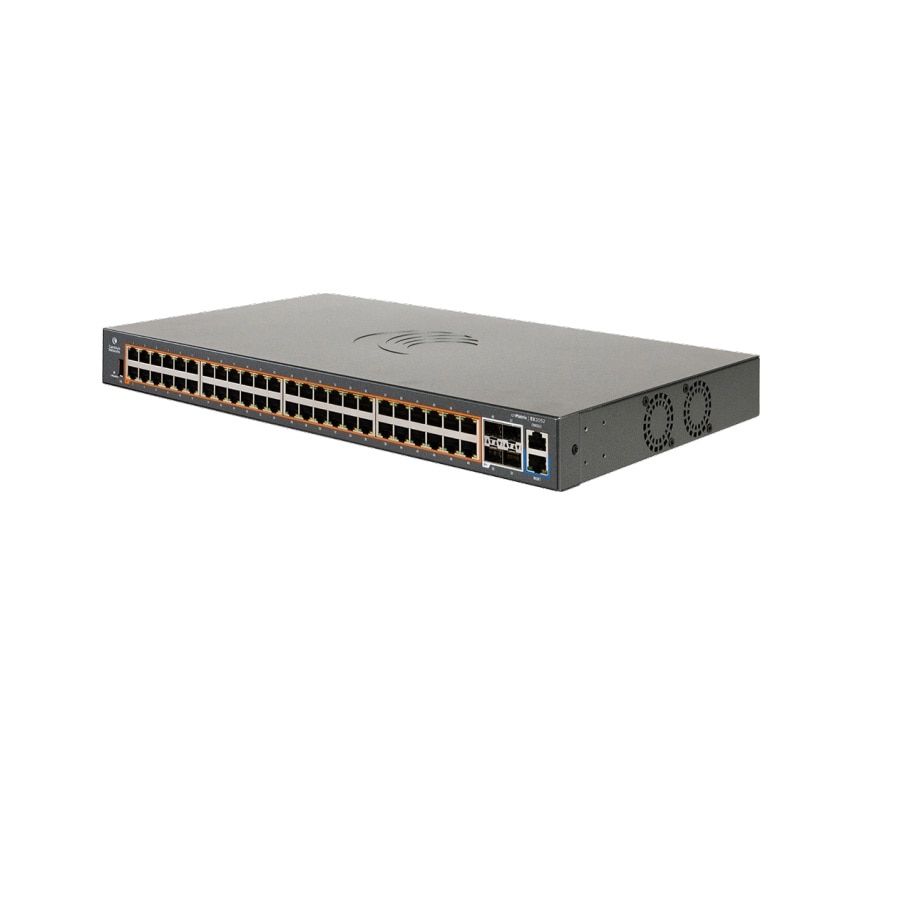

Cambium cnMatrix EX2052, Intelligent Ethernet Switch, 48 1G and 4 SFP+ - No power cord

  • SKU: MXEX2052GxxA01
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped directly from other locations when out of stock. Email me when this product is in stock!
    Out of stock at College Station
US$‎1,614.60

Specifications MXEX2052GxxA01

Throughput 176 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10/100/1000 Ports 48
2.5 G Ports n/a
Uplink Ports 4 SFP+
PoE+ Enabled Ports (802.3af/at) n/a
Serial ConsoleYes
USB Yes
Out-of-Band Management PortYes
Rack Mount KitYes
Internal Fans Yes
Reset ButtonYes
MAC Address Table Size 16K
Flash Storage 128 MB
DRAM 512 MB
VLANs 4K
Port Based VLANs 4K
LACP/Trunking 8 LAGs/8 links per LAG
QoS Priority Queues
PVRST 32
Ingress/Egress ACL 128
Static ARP Entries 512
ARP Entries 512
Static Routes 64
Dynamic Routing 512
IGMP Multicast Groups 256
Policy Based AutomationYes
Hardware Spec
Power Supply100-240 VAC
Max Switch Power (WITH TRAFFIC)38.88 W
MTBF (Hours)393,648
Weight3.6 kg (7.93 lb)
Dimensions44 x 4.4 x 25 cm (17.3 x 1.75 x 9.85 in)
CPU Speed800 MHz
LEDs Per PortLink/Activity, PoE
PoE+ Power Budgetn/a
PoE + Voltage n/a

Cambium Networks MXEX2052GxxA01

Cambium cnMatrix EX2052, Intelligent Ethernet Switch, 48 1G and 4 SFP+ - No power cord

cnMatrix EX2052, Intelligent Ethernet Switch, 48 1G and 4 SFP+ - no pwr cord. Enterprise grade L2, L3 functionality, Policy Based Automation, includes lifetime Cloud or on-premises management. 5-Year Limited Lifetime Warranty.

Shipping Information:

Dimensions (W x H x L)NILcm X NILcm X NILcm
Weight1 lbs
