Cambium Networks N800082D005A

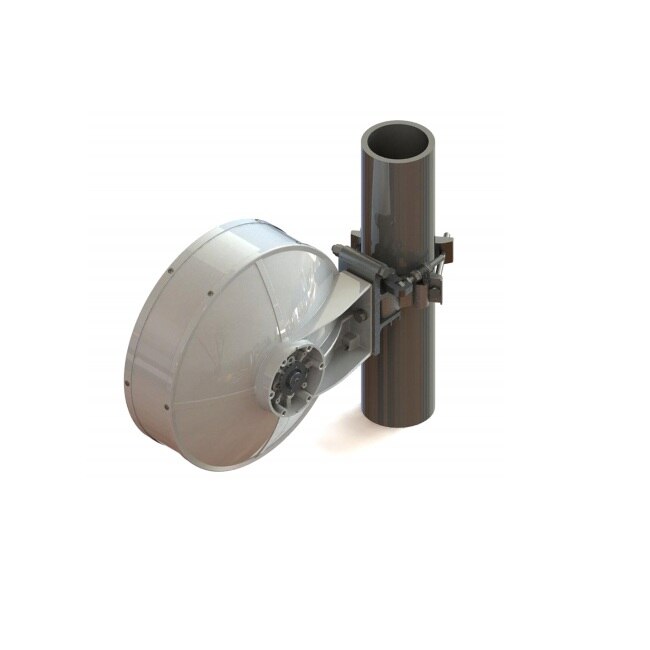

PTP 820 1' Single Polarization Antenna, 80GHz, RFU-E TYPE & UG387 - Andrew
Specifications
Specifications N800082D005A
| Antenna Type | VHLP - ValuLine® High Performance Low Profile Antenna, single-polarized |
| Diameter, nominal | 0.3 m | 1 ft |
| Polarization | Single |
| Beamwidth, Horizontal | 0.8 ° |
| Beamwidth, Vertical | 0.8 ° |
| Cross Polarization Discrimination (XPD) | 30 dB |
| Electrical Compliance | ETSI 302 217 Class 3 | US FCC Part 101.115 |
| Front-to-Back Ratio | 64 dB |
| Gain, Low Band | 45.0 dBi |
| Gain, Mid Band | 46.0 dBi |
| Gain, Top Band | 47.0 dBi |
| Operating Frequency Band | 71.000 – 86.000 GHz |
| Radiation Pattern Envelope Reference (RPE) | 7364A |
| Return Loss | 14.0 dB |
| VSWR | 1.50 |
| Fine Azimuth Adjustment | ±15° |
| Fine Elevation Adjustment | ±15° |
| Mounting Pipe Diameter | 51 mm–115 mm | 2.0 in–4.5 in |
| Net Weight | 5 kg | 10 lb |
| Side Struts, Included | 0 |
| Side Struts, Optional | 0 |
| Wind Velocity Operational | 200 km/h | 124 mph |
| Wind Velocity Survival Rating | 250 km/h | 155 mph |
| Axial Force (FA) | 445 N | 100 lbf |
| Side Force (FS) | 200 N | 45 lbf |
| Twisting Moment (MT) | 144 N•m |
| Weight with 1/2 in (12 mm) Radial Ice | 7 kg | 15 lb |
| Zcg with 1/2 in (12 mm) Radial Ice | 3 mm | 0 in |
| Zcg without Ice | 11 mm | 0 in |
