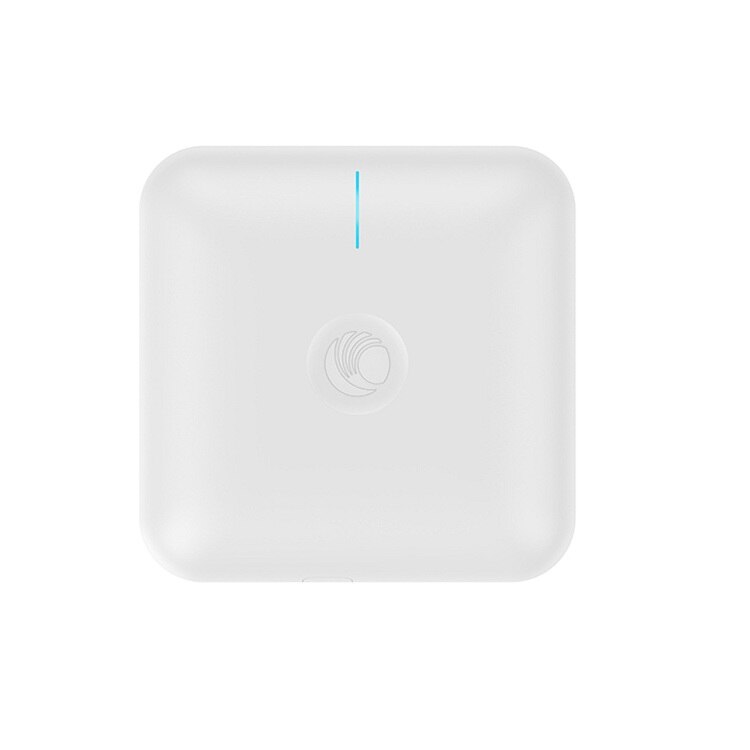

Cambium cnPilot E410 Indoor (FCC) 802.11ac wave 2, 2x2, AP
- SKU: PL-E410X00B-US
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks PL-E410X00B-US
cnPilot Enterprise E410 802.11ac Wave 2 Dual Band Wi-Fi MU-MIMO 2x2 Beamforming Indoor Access Point without PoE Injector, FCC
The Cambium cnPilot E410 Indoor AP helpf future proof your indoor deployments with the compact, low profile, and offers a 802.11ac wave 2, 2x2 beamforming Access Point. The cnPilot E410 Indoor AP is perfect for schools, malls, hotels, resorts, coffee shops, multi-dwelling units (MDUs), or any indoor environment that needs reliable, high performance access points.
CONTROLLER MANAGED + AUTONOMOUS
Managed by Cambium’s cnMaestro™ cloud controller or On-premises controller, the cnPilot E410 management includes:
- Zero touch onboarding
- Inventory tracking & monitoring
- Mass configuration & upgrade
- Dashboard views with alarms
- Troubleshooting
- Hierarchical device organization
CONTROLLER-LESS ROAMING. POWERFUL SIMPLICITY
The E410 supports seamless roaming for up to 1,000 clients without needing a controller in the network. Hotspot portal hosting on the AP itself offers controller-less simplicity.
MONETIZE: VOUCHERS. SOCIAL LOGIN
Monetize your Wi-Fi service with cnMaestro’s Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway. These features – along with the ability to create time, rate and volume-limited traffic profiles – make the E410 ideal for hotels, coffee shops, campgrounds, and office guest Wi-Fi.
SERVICE AWARE WLANS FOR BETTER USER EXPERIENCE
Make sure that every connection to an access point is successful. When service to a critical resource such as an external Gateway or AAA is down, the E410 can turn off the impacted SSIDs, enabling client devices to redirect to a functional, neighboring access point.
INDOOR/OUTDOOR WI-FI MESH. FLEXIBILITY
Indoor meshing across multiple E410s, or Indoor/ Outdoor meshing across both the Indoor E410 and the Outdoor E500, offers convenient options to wirelessly expand WiFi coverage.
COVERAGE, CAPACITY. SPEED
The plenum-rated E410 packs a max transmit power of 25 dBm and is DFS certified to utilize additional reserved 5 GHz DFS channels – offering more flexibility than ever for both coverage and capacity. Throughput management via airtime fairness, increased performance by Automatic Channel Scanning (ACS), and higher client device speeds from band steering ensure your network can adapt to dynamic client behaviors.
HIGH DENSITY, HIGHLY AVAILABLE
A capacity of 256 concurrent client associations and 16 SSIDs, along with dual on-board Active/Standby memory banks, ensure the E410 combines high density with high availability.
LICENSE-FREE HIGH PERFORMANCE ONE LOW PRICE
The 802.11ac wave 2 E410 comes with a free controller and no AP management license fees. There are no hidden charges.
Specifications
Specifications PL-E410X00B-US
| ACCESS POINT SPECIFICATIONS | |
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 Others: 802.11 h/d/r/u/w/ |
| MIMO Streams | 2x2 MIMO streams. |
| Range | 180 m (650 Ft) |
| Concurrent Clients | 256 |
| Max Data Rates | 867 Mbps |
| SSID | 16 SSIDs across 2 radios |
| Antenna gain | 4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz) |
| Multi-Hop Mesh | Yes. Supported on Indoor & Outdoor access points. Mesh auto-recovery supported |
| Polarization | Dual-linear |
| Antenna Coverage | Omni (360°) |
| Ethernet Ports | One (1) x 1 Gigabit Ethernet (10/100/1000 Mbps) |
| Frequency bands | 2.4 GHz: 2400-2484 MHz 5 GHz: 5150-5850 MHz with DFS band support |
| Power Supply | Standard 802.3af injector (supplied) or any PoE switch |
| Power Consumed | 13W (max) |
| Dimensions | 170 x 170 x 41 mm (17 x 17 x 4.1 cm) |
| Weight | 384grams (0.384kg) |
| Temperature | 0°C to +50°C |
| LED | Single LED window with tri color (Amber, Blue, Green) display |
| Max TX Power | +25 dBm |
| Physical Lock | Kensington key hole |
| WiFi FEATURES | |
| Controller modes | • Autonomous Controller-less operations (E.g.: roaming) • Cloud Managed • On-premise virtualized controller |
| Secure WLAN | WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames) |
| Hotspot 2.0/Passpoint | Yes |
| Captive Portal/ Guest Access | • cnMaestro Controller • Stand-alone AP based• Redirection to external RADIUS Server • Active Directory Integration |
| Authentication | Secure Web page, RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS MAC authentication (local database or External RADIUS server) |
| Accounting | Yes. Supports RADIUS based accounting to multiple AAAs |
| Scheduled SSID | Turn SSID ON/OFF on a daily/weekly/time of day basis |
| VLAN | Dynamic VLAN assignment from RADIUS server. VLAN per SSID per user, VLAN load balancing |
| Data Limiting | Dynamic rate limiting of client traffic per SSID & per client |
| Subscriber QoS | WMM |
| Client Isolation | Yes |
| Controller-Less Fast Roaming | Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming Disconnect for sticky clients |
| Airtime Fairness | Yes |
| Meshing | Multi-hop meshing supported (3) |
| cnMAESTRO WI-FI CONTROLLER | |
| Cloud & On-Premises | Available in the Cloud or as a downloadable VMware® image (On-premises) |
| Common Manager | Manage both cnPilot and Cambium’s ePMP and PMP 450 radios |
| Troubleshooting | Single screen wireless view, showing Wireless backhaul, Access point & clients |
| Frictionless On-Boarding | Secure large scale bulk onboarding Zero touch bulk configuration and provisioning |
| Device Inventory | Inventory tracking and reporting |
| Key Stats Monitoring | 7 day historic stats |
| Portal Hosting | Setup Hotspot portals segmented by SSIDs |
| Voucher | Time and Rate limited Guest access portals with Vouchers for 1,000 client devices |
| Social Login | Facebook, Google |
| Site Grouping | Group sets access points for convenient management |
| Client Insight | Shows client history with aggregate client manufacturer views |
| Multiple Admins | Multiple admin provisioning per account |
| Software Upgrade | Ability to upgrade multiple WiFi devices at a time |
