Cambium cnPilot E600 Indoor (FCC) 802.11ac wave 2, 4x4, AP
- SKU: PL-E600X00A-US
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks PL-E600X00A-US

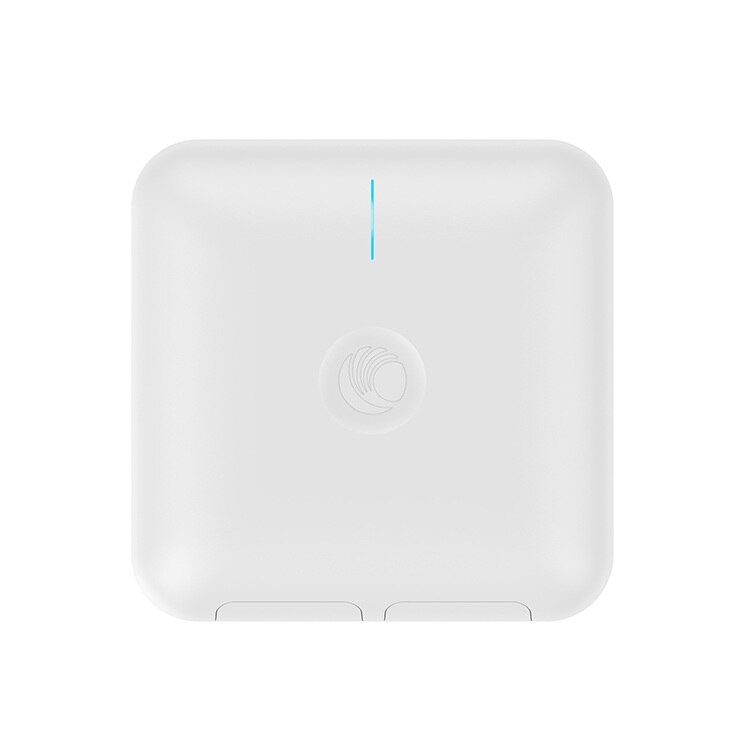

Cambium cnPilot™ E600 Indoor Gigabit 802.11ac wave 2 dual band 4x4 Indoor access point AP Only
Stay on top of the latest standards with the high-powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 E600 access point with a 4x4 antenna array. From the classroom to the mall, cnPilot ™ E600 Indoor is perfect for applications that demand high capacity, range, and/or support high user density.
Controller Managed + Autonomous
Managed by Cambium’s cnMaestro™ cloud controller or On-premises controller, the cnPilot E600 management includes:
- Zero touch onboarding
- Inventory tracking
- Monitoring
- Mass Configuration
- Dashboard views with Alarms
- Mass upgrade
- Troubleshooting
- Hierarchical device organization
Controller-Less Roaming. Powerful Simplicity
The E600 supports seamless roaming for up to 1,000 clients without needing a controller in the network. Hotspot portal hosting on the AP itself offers controller-less simplicity.
Indoor/Outdoor Wi-Fi Mesh. Flexibility
Indoor meshing across multiple E600s, or Indoor/Outdoor meshing across both the Indoor E600 and the Outdoor E500, offers convenient options to wirelessly expand Wi-Fi coverage without wires..
Coverage, Capacity. Speed
The plenum-rated E600, packs a max transmit power of 28 dB, and is DFS certified to make use of additional reserved 5 GHz DFS channels – offering more flexibility than ever for both coverage and capacity. Throughput management via airtime fairness, increased performance by Automatic Channel Scanning (ACS), and higher client device speeds from band steering ensure your network can adapt to dynamic client behaviors.
High Density, Highly Available
A capacity of 256 concurrent client associations and 16 SSIDs, along with dual on-board Active/Standby memory banks, ensure the E600 combines high density with high availability.
Specifications
Specifications PL-E600X00A-US
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 | Other standards: 802.11 h/d/r/u/w/ |
| MiMO Streams | 2x2 (2.4 GHz) , 4x4 (5 GHz) MIMO streams. |
| Range | 250m (800ft) |
| Concurrent Clients | 512 |
| Max Data Rates | 3.85 Gbps (3,846 Mbps) |
| SSID | 16 SSIDs across 2 radios |
| Standards | 4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz) |
| Multi-Hop Mesh | Yes, supported on Indoor and Outdoor access points. Mesh auto-recovery supported |
| Polarization | Dual-linear |
| Antenna Coverage | Omni (360°) |
| USB | Yes |
| Bluetooth Radio | Yes, BLE |
| Ethernet Ports | Two (2) x 1 Gigabit Ethernet (10/100/1000 Mbps) |
| Frequency Bands: | 2.4GHz: 2400 - 2484MHz 5GHz: 5150 - 5850MHz with DFS band support |
| Power Supply | Standard 802.3af injector, 802.3at PSE, 802.3af PSE (limited performance), 12VDC adapter (accessory) or PoE switch |
| Power Consumed | 22W (max) |
| Dimensions | 180 x 180 x 42mm |
| Weight | 400g |
| Temperature | 0 to 50°C |
| LED | Single LED window with tri-color (Amber, Blue, Green) display |
| Max Tx Power | 22dBm |
| Physical Lock | Kensington key hole |
