Cambium cnPilot e700 Outdoor (FCC) 802.11ac wave 2, 2x2/4x4, AP

(0)No Reviews yet
  • SKU: PL-E700X00A-US
  • Manufacturer: Cambium Networks
  • Data Sheet: Download

Product Information

Cambium Networks PL-E700X00A-US

cnPilot e700 Outdoor Omni. Gigabit IP67, 802.11ac, Wave 2, 8 dBi Outdoor Access Point

Operational superiority - IP67 weather resilient Outdoor Access Point (AP) with 512 max concurrent client associations, 16 SSIDs, WPA-2 encryption, Meshing, Dynamic VLANs, DFS channels, Access control lists (ACL), zero touch provisioning and more - the 802.11ac wave2 powered e700 is perfect for today's demanding high density outdoor Wi-Fi networks.

High performance Wi-Fi - Standards based beamforming, on 5 GHz over a 4x4 Tx/Rx antenna array, can steer beams to the target client device delivering superior performance under high interference RF environments in both downlink and uplink* directions. Enterprise grade controller-less roaming, dynamic channel selection, automatic transmit power control, and more such cnPilot platform features ensure a high grade superior Wi-Fi network.

Mesh - Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for simultaneous client and mesh access.

Wireless Backhaul Integration - Roll out Wi-Fi networks rapidly with Cambium's wireless backhaul powered from the aux PoE Out port on the e700 eliminating the need for a second power line. The aux PoE Out port can also power an 802.3af camera when security monitoring is needed near the hotspot.

Resilience - Dual on-board Active/Standby memory banks ensure higher availability. The e700 can store two versions of the software and if needed fall back to a working operational software, reducing the likelihood of site visits and increasing network up-time.


DESIGNED FOR THE OUTDOORS:

  • 802.11ac, 512 users, 16 SSIDs
  • Omni antenna
  • UV rated IP-67 enclosure
  • Max Operating Temp range: -40°C ~ +65°C
  • Operating humidity: 10% to 95%
  • Electrical heater for cold start
  • Ruggedized; ESD protection, Industrial grade
  • Packaged with wall mount brackets
  • Special LTE resilience filtering
  • 315 x 215 x 66 mm | 3.174 lbs (1700 gms)

Specifications

Specifications PL-E700X00A-US

Frequency Bands 2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz
SSID Security WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open
Max SSIDs 16
Max Concurrent Clients 512
Max Data Rates 2.4GHz: 400Mbps, 5GHz: 1733Mbps
Ethernet Ports Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
Antenna Integrated Omni
Antenna Gain 8 dBi (2.4 GHz and 5 GHz)
Power Supply 60W Gigabit passive PoE injector
POE Out Aux port: capable of 802.3af out or Canopy power (for supported Cambium ePMP or PMP450 SMs)
Transmit Power 25 dBm @ 2.4GHz 28 dBm @ 5 GHz
Power Consumed Typical 18W. Max 24.6W
Dimensions (cm) 315 x 215 x 66 mm (without bracket)
Weight 3.174 lbs (1700 gms) without bracket
Operating Temperature -40°C ~ +65°C (when aux PoE out port is not used) or -40°C ~ +60°C* (when aux PoE out port is used)
Operating Humidity 10% ~ 95%

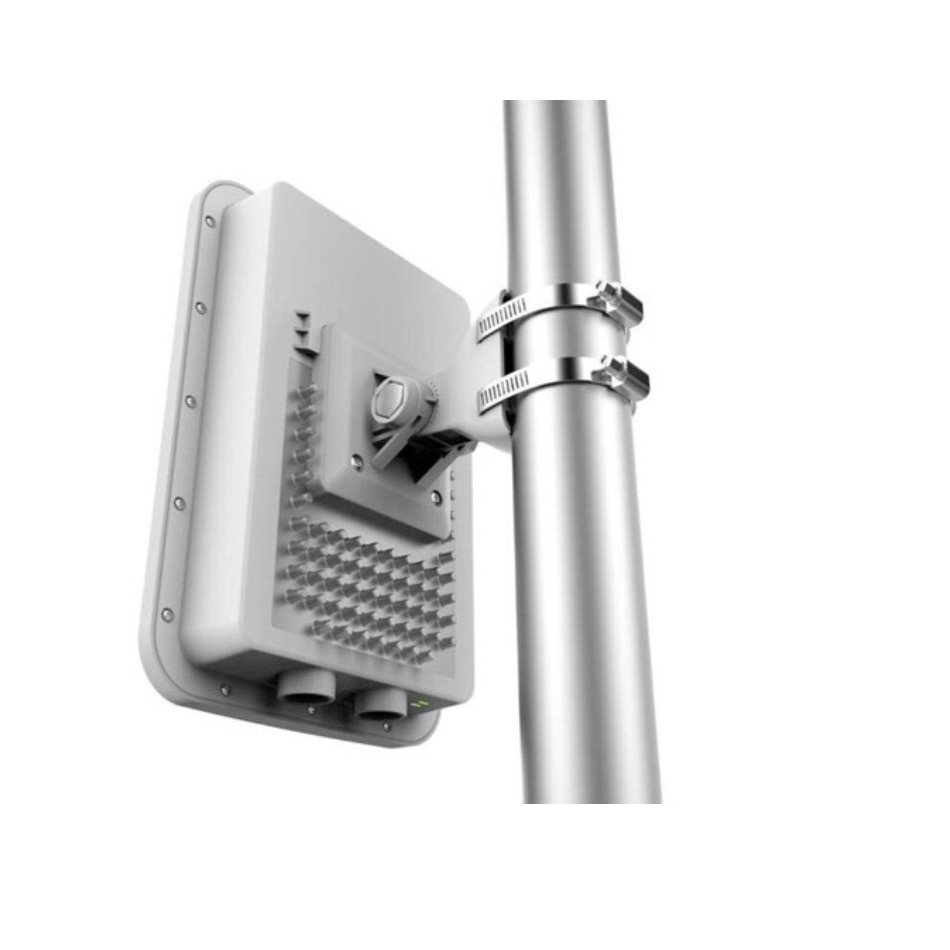

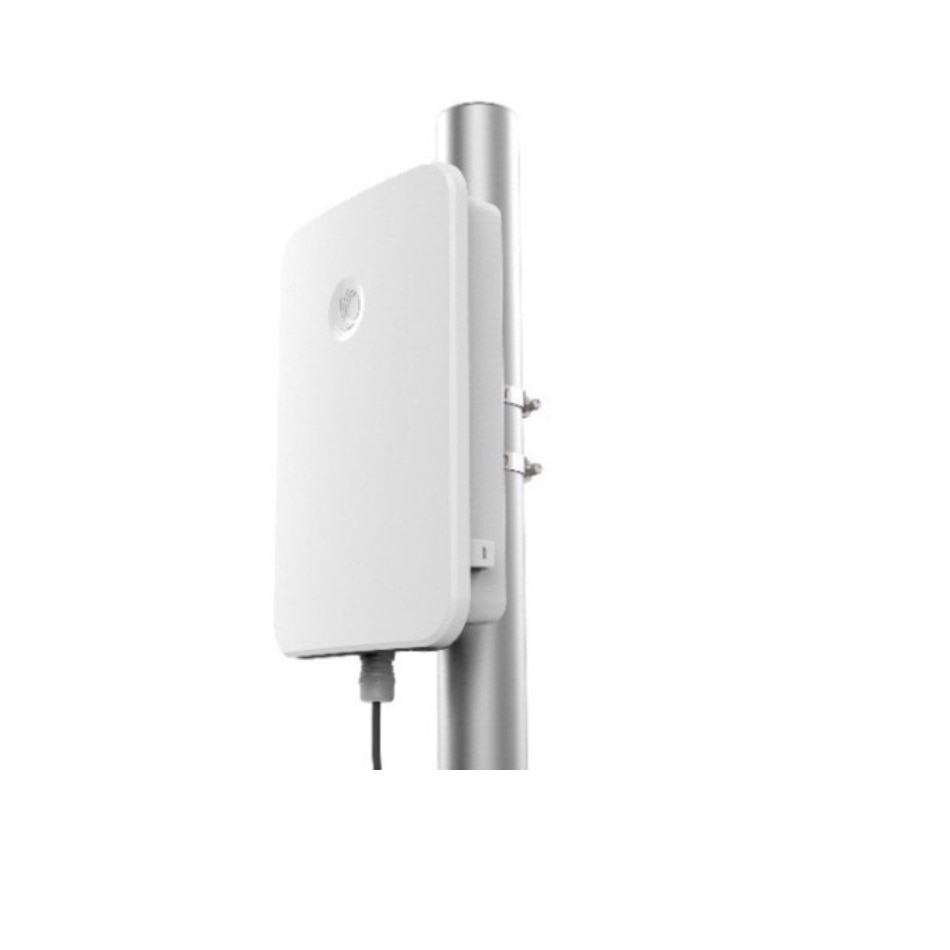

Mounting Options Pole mount bracket (included) or wall-mount (with included bracket or without)
LTE Co-Existence Special filter for rejecting interference on 2.4 GHz from adjacent LTE bands 38, 40
Phyiscal Security Kensington Lock bracket
Visual Status Two (2) multi-color LEDs indicating Access Point & cnMaestro connectivity status
