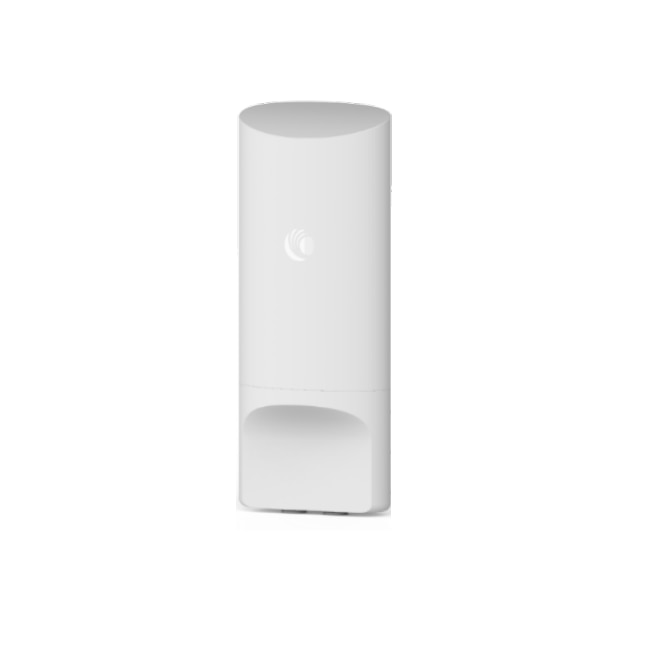

Cambium Outdoor Dual Radio WiFi 6 AP Sector Antenna 2x2, 2.5GbE, 48V Out, BLE. (US Version)
- SKU: XV2-2T1XA00-US
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks XV2-2T1XA00-US
Outdoor Dual Radio WiFi 6 AP Sector Antenna 2x2, 2.5GbE, 48V Out, BLE. (US Version)
The XV2-2T1 Outdoor Wi-Fi 6 Access Point (AP) is based on the XV2-2T0 Outdoor AP with omnidirectional HE (high-efficiency) antenna. The XV2-2T1 has a 120-degree sector antenna built with the same HE antenna principles. Ideal for installations where the AP is mounted outside of a building or where the extra range of the sector antenna is needed. The XV2-2T1 includes a 2.5 Gb Ethernet uplink port to deliver the greater speed and capacity of Wi-Fi 6.
High-Efficiency Antenna Design
The XV2-2T1 uses a specially designed sector antenna to provide maximum and consistent RF gain in front of the AP. The high average gain delivers higher RF link budget for better client connections at greater distances than previous-generation 802.11ac outdoor Wi-Fi access points.
Flexible Deployments
Everything you need is included in the shipping box. Easily mount the XV2-2T1 to a pole or directly to the side of a building. The shipping box includes a dualpurpose mounting bracket, pole clamps, cable glands, and wall anchors. Additionally, the XV2-2T1 GE2 port provides up to 30 watts of PoE power for an external Ethernet device. Connect a Cambium Networks PMP subscriber module, a 60 GHz v1000 CN, an IP security camera, or even another access point.
Powerful Management Options
Adopt and manage the XV2-2T1 from cnMaestro™ cloud, cnMaestro on-premises, cnMaestro X, or XMS-Cloud management. The XV2-2T1 is not locked into one management option; easily move the access point from one management to the other. Whe paired with a cnMatrix™ Ethernet switch, the XV2-2T1 benefits from policy-based automation that simplifies and secures device configuration.
Wi-Fi 6 Technology Based on the IEEE 802.11ax Standard
The key value of 802.11ax is efficient use of RF spectrum. It does this by bringing MU-OFDMA from the cellular world into Wi-Fi. 802.11ax is a deterministic network where the access point is now in charge of assigning transmit resource units, time to transmit, and when to sleep to all the clients in the network. Spatial reuse is another efficiency protocol designed to increase capacity even for low-powered mobile handset devices. Support for TWT (target wait time) increases battery life, which is ideal for IOT sharing the same network. Preamble boost, longer symbols, dynamic guard interval, and dual carrier modulation (DCM) provide extended range and link stability for outdoor Wi-Fi applications.
Features:
- Dual band 2.4 GHz and 5 GHz radios, 2x2 streams
- 120° sector antenna pattern
- 802.11ax MU-MIMO, MU-OFDMA, TWT
- 1 x 2.5 GbE and 1 x GbE RJ45 interfaces
- Cambium Networks™ Confidential Restricted 2
- Up to 30 watts PoE out on GE2 port
- Integrated BLE 4.1
- 802.3bt or 802.3at PoE Powered Device
- Use 802.3at PoE source for the AP if not using PoE out
- Use 802.3bt PoE source if the AP and PoE out is used
- IP67 rated enclosure with ambient temperature spec of -40°C to 65°C
- LTE band filter for maximum outdoor 2.4 GHz range
Specifications
Specifications XV2-2T1XA00-US
| Weight | (6.98 lbs) |
| Dimensions (L x W x H) | 641mm x 245mm x 172mm (25.23 in x 9.64 in x 6.77 in) |
| Radio | 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2 BLE 4.1 |
| Standard | IEEE 802.11 a/ac/ax/b/d/e/g/h/i/k/n/r/u/v OFDMA, UL/DL MU-MIMO 16/64/256/1024-QAM, Каналы 20/40/80 MHz TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO |
| Antenna Gain | 5GHz 14 dBi 2.4GHz 10 dBi |
| Antenna pattern | 120 deg |
| Maximum transmitter power | 27 dBm |
| Maximum number of subscribers (associated users) | 512 |
| Max Data rates | 5 GHz radio 1,201 Mbps 2.4 GHz radio 573.5Mbps |
| RF management | Multimodal RF optimization supporting AutoCell Out-of-band RF spectrum analysis Radio self test network assurance RF monitor with chn/noise/interference Data rate pruning and minimum data rates |
| LTE Filter | Band 38 ( 2.3GHz), 40 (2.5 GHz) |
| Band steering, Load balance | Steers 2.4 GHz to 5GHz, RRM (Radio Resource Management) |
| Wi-Fi Meshing | 802.11 Multi-Hop mesh |
| Channel Selection | Multimodal channel selection with AutoChannel and AutoBand Granular control of off-channel scan and channel selection |
| Network and RF Management Tools | Wired and wireles remote packet capture, auto logging, ZapD performance tool, rogue AP detection |
| Deployment | ·Stand-alone operation w/o Controller ·Cloud Managed Controller cnMaestro ·On-premise controller (NOC) |
| SSID ( WLAN) | 16 |
| QoS | WNM |
| Client traffic management | · Rate limit UL and DL per-client, per-WLAN · Scheduled WLAN access (time-based SSID) · Access Control Lists (IP and MAC based ACL) · DNS based Access Control ( whitelist, blacklist) |
| Guest Access | Captive portal splash pages EasyPass guest self-registration Guest Ambassador ePSK Vouchers Client isolation per SSID, per network |
| Services | NTP, Syslog, SNMP traps, DNS proxy |
| Networking | L2TPv2, L2oGRE, PPPoE tunnel · LACP (802.3ad) ,TCP connection log, NAT logging firewall, · DHCP server, · L2, L3 or DNS based access control, · VLAN Pooling, RADIUS attribute VID , · VLAN per SSID per user |
| Hotspot Captive Portal | Hosted on cnMaestro or hosted on site · AP Redirect to HTTP/RADIUS external portal/authentication · Active Directory integration, Google, Facebook, · Office 365 integration Data rate, time duration, · data throughput limit · Server DNS logging, Hotspot 2.0/Passpoint 2.0 · Credit Card Merchant billing, ePSK, Vouchers |
| Controller less Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Authentication | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS |
| Accounting | RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM |
| Management | · NMS cnMaestro Cloud, On-premises (NOC) · CLI Telnet and SSH · GUI (http, https) · SNMP v2c, v3 based monitoring |
| Ethernet | 1 x IEEE 100/1000/2500 Mbps 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts |
| Power consumption, max | 20W max Up to 50W when powering an auxiliary device |
| supply | 802.3at powered device |
