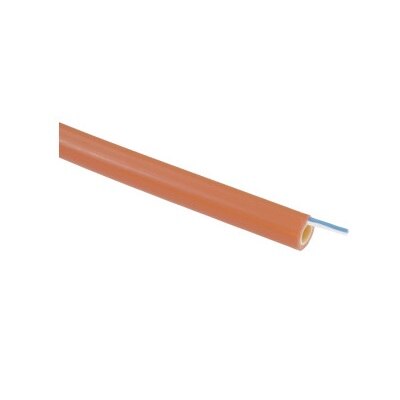

Clearfield Fieldshield Microduct, 14/10Mm, Direct Bury, Orange Oversheathed Toneable, W/Pull String, 1250Ft (381 Meters)
- SKU: FS-DEO-T-214-PS-1250F
- Manufacturer: Clearfield
- Data Sheet: Download
Product Information
Clearfield FS-DEO-T-214-PS-1250F
Fieldshield Microduct, 14/10Mm, Direct Bury, Orange Oversheathed Toneable, W/Pull String, 1250Ft (381 Meters)
Simplifying the placement of fiber, while providing protection from harsh environmental elements, FieldShield® Direct Bury 14/10 mm Microduct is specifically designed for applications requiring a small heavy-duty drop feed. Rugged crush resistance protects FieldShield® Direct Bury Microduct from the rigors of all industry standard ground deployment methods, while rigid column strength allows microducts to be deployed through occupied duct previously thought exhausted. Direct Bury 14/10 mm Microduct has an outer diameter of 14 mm and an inner diameter of 10 mm.
FieldShield® Direct Bury 14/10 mm Microduct is a durable, crush-resistant fiber duct product designed to increase the protection of fiber while decreasing installation and maintenance expenses. Manufactured using high density polyethylene (HDPE), FieldShield® Direct Bury 14/10 mm Microduct offers superior durability and protection.
Features:
- Quick and easy to install
- Direct Bury microduct has high tensile strength and crush resistance that withstands all types of ground implementations including open trenching, vibratory plowing, micro-trenching and directional boring
- Made from HDPE to prevent degradation
- Optional external tone wire simplifies ground locating
- Industry standard orange provides high visibility for direct bury applications
- Standard nylon pull string simplifies deployment of fiber
- Smooth core slip lining reduces drag co-efficient enabling fiber to be pushed or pulled with minimal resistance
- Maximizes capacity of existing conduit previously considered exhausted
- Provides industry leading protection for "last mile" feeds
Specifications
Specifications FS-DEO-T-214-PS-1250F
| Length Non-toneable | 1,500 feet (457.20 m) per spool; Toneable: 1,250 feet (381.00 m) per spool |
| Outside Diameter Non-toneable | 0.551” (14.00 mm); Toneable: 0.66” (16.76 mm) |
| Inside Diameter | 0.390" (9.91 mm) |
| Wall Thickness | 0.079" (2.01 mm) |
| Slip Layer Minimum | 0.004" (0.102 mm) |
| Ovality | ≤ 5% |
| Installation Tension | Non-toneable: 264 lbf; Toneable: 346 lbf |
| Bend-Radius Non-toneable | 8” (203.20 mm) radius minimum; Toneable: 10” (254.00 mm) radius minimum |
| Material | High Density Polyethylene (HDPE) |
| Operating Temperature | -40°F to 176°F (-40°C to 80°C) |
| Installation Temperature | -14°F to 158°F (-26°C to 70°C) |
| Color | Orange |
| Tone Wire | Insulated Stranded Copper |
| Tone Wire Diameter | 0.032” (0.813 mm) / 20 AWG |
| Markings | Part number, lot number, footage markers every two feet (609.60 mm) |
| Spool Size | 12” ID x 24” OD x 20” W (304.80 mm x 609.60 mm x 508.00 mm) |
| Weight | Non-toneable: 72 lb (32.66 kg); Toneable: 95 lbs (43.09 kg) |
