Compex 2x2 802.11b/g/n Single-band MIMO mini-PCIe

(0)No Reviews yet
  • SKU: WLE200N2
US$‎12.00
  • Manufacturer: Compex
  • Data Sheet: Download
22 in stock
College Station
22 In stock

Product Information

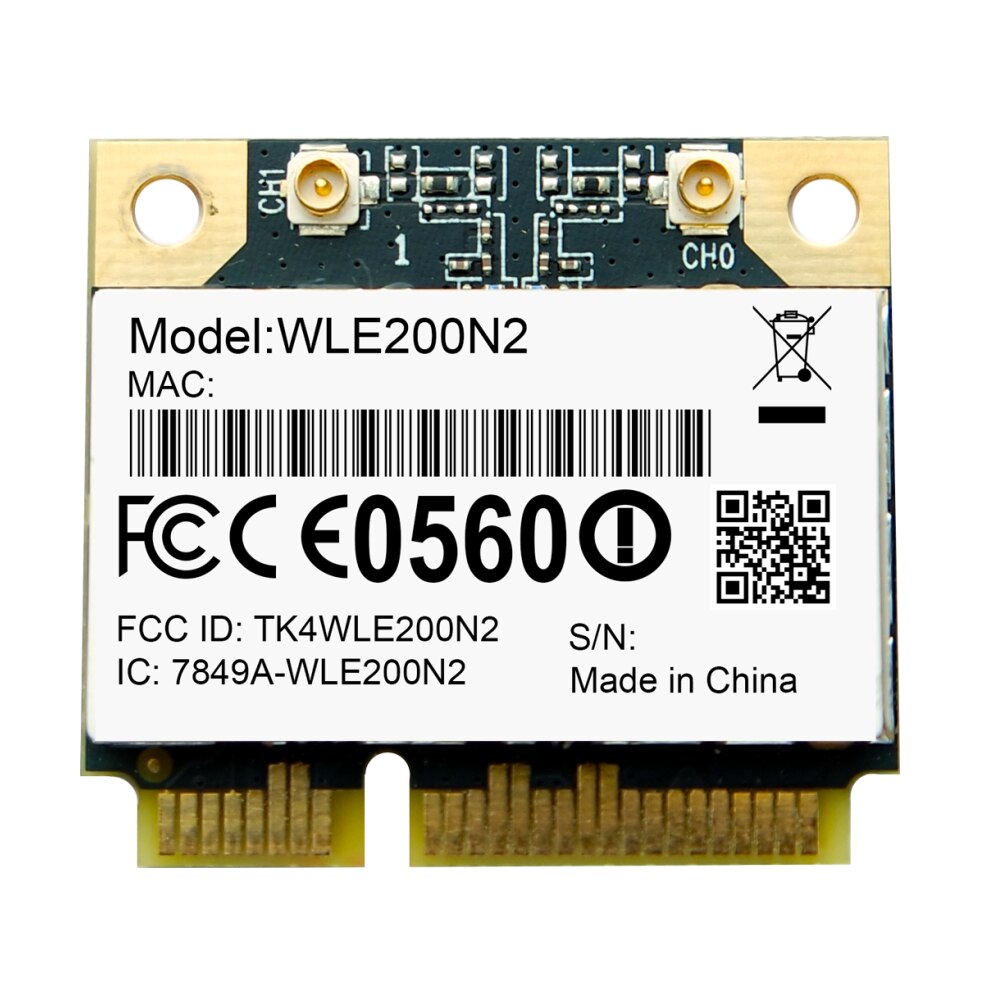

Compex Half PCIe Mini Card WLE200N2

2 x 2 802.11b/g/n Single-band MIMO mini-PCIe

Superior Performance for Multimedia Networking

WLE200N2 is an 802.11n Single-Band wireless mini pci express Half Mini Card based on Atheros AR9287 chipset. It supports 2T2R (2-stream) function, which provides maximum data rate up to 300Mbps and improves the overall Wi-Fi coverage area.

Secure Wireless Connection

This Mini PCIe wireless card, WLE200N2, incorporated advanced security encryption, such as WPA, and WPA2, to help prevent users’ devices from malicious attacks.

Specifications

Specifications WLE200N2

Product Type Wireless Module
ChipsetAR9287
Wireless Standard802.11n, 802.11g, 802.11b
MIMO Channels2×2
Output (Per Chain)16dBm
Wireless Speed300Mbps
Frequency Range2.412 ~ 2.472 GHz
Interface1x MiniPCI-e Pin, 2x U.FL Connector
MiniPCI-e Pinv1.1
Power Consumption1.9 Watts (Max)
Temperature RangeOperating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
HumidityOperating:5% to 95% (non-condensing)
CertificationIC, CE, FCC, RoHS Compliance
Dimension (W x H x D)30mm x 26.8mm x 3.45mm
