Compex 802.11ac 2.4/5GHz miniPCIe Radio Card

(0)No Reviews yet
  • SKU: WLE900VX
  • Manufacturer: Compex
  • Data Sheet:Download
91 in stock
College Station
91 In stock

Product Information

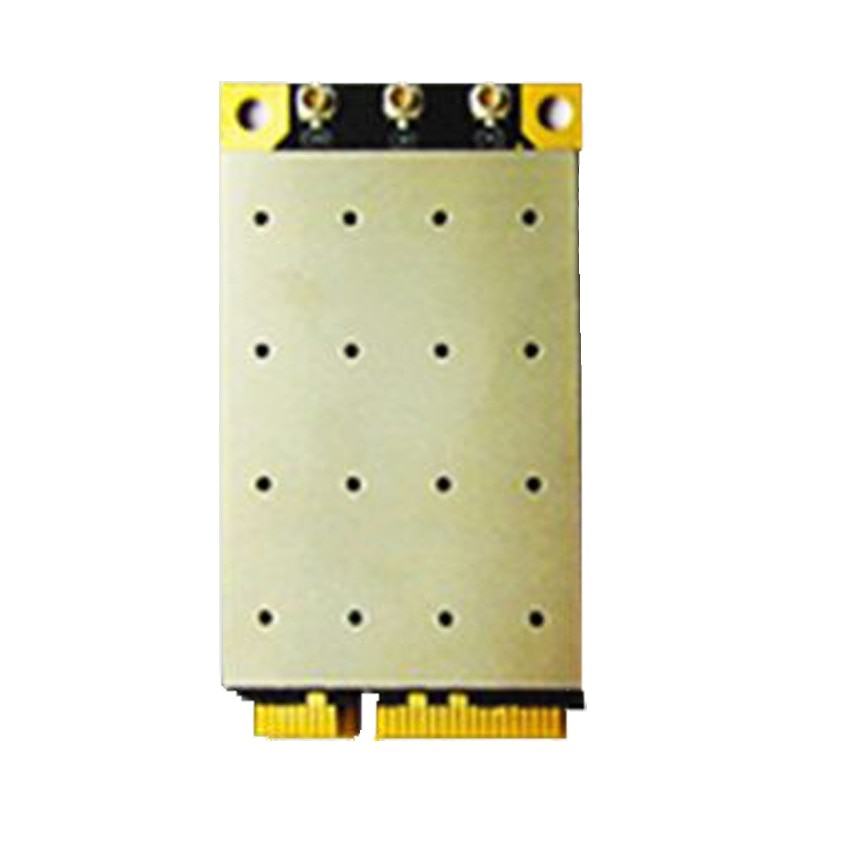

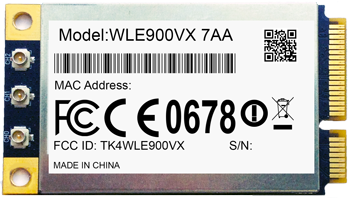

Compex WLE900VX 802.11ac 2.4/5GHz miniPCIe Radio Card

The WLE900VX is an IEEE 802.11ac wireless adapter that operates in 2.4GHz and 5.0 GHz bands, available in PCIe mini card form factor. Featuring QCA9880 chipset, the WLE900VX dramatically increases the overall throughput up to 1.3Gbps with 3 x 3 MIMO technique. Leveraging the revolutionary 11ac technology, WLE900VX sets a new benchmark in throughput and range, making it ideal for consumer and enterprise applications, such as video, voice and data transmission. The WLE900VX is backward compatible with 802.11a/b/g/n and fully supports industry standards compliant security.

Specifications

Specifications WLE900VX

Product TypeWireless Module
ChipsetQCA9880
Wireless Standard802.11n, 802.11g, 802.11b, 802.11ac, 802.11a
MIMO Channels3×3
Output (Per Chain)21dBm
Frequency Range2.412 ~ 2.472 GHz, 5.180 ~ 5.825 GHz
Wireless Speed1300Mbps
Interface1x MiniPCI-e Pin, 3x U.FL Connector
MiniPCI-e Pin v1.1
Power Consumption5 Watts
Temperature RangeOperating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
HumidityOperating:5% to 95% (non-condensing)
CertificationIC, CE, FCC, RoHS Compliance
Dimension (W x H x D)50.95 x 30 x 3.2 mm (W x H x D)
