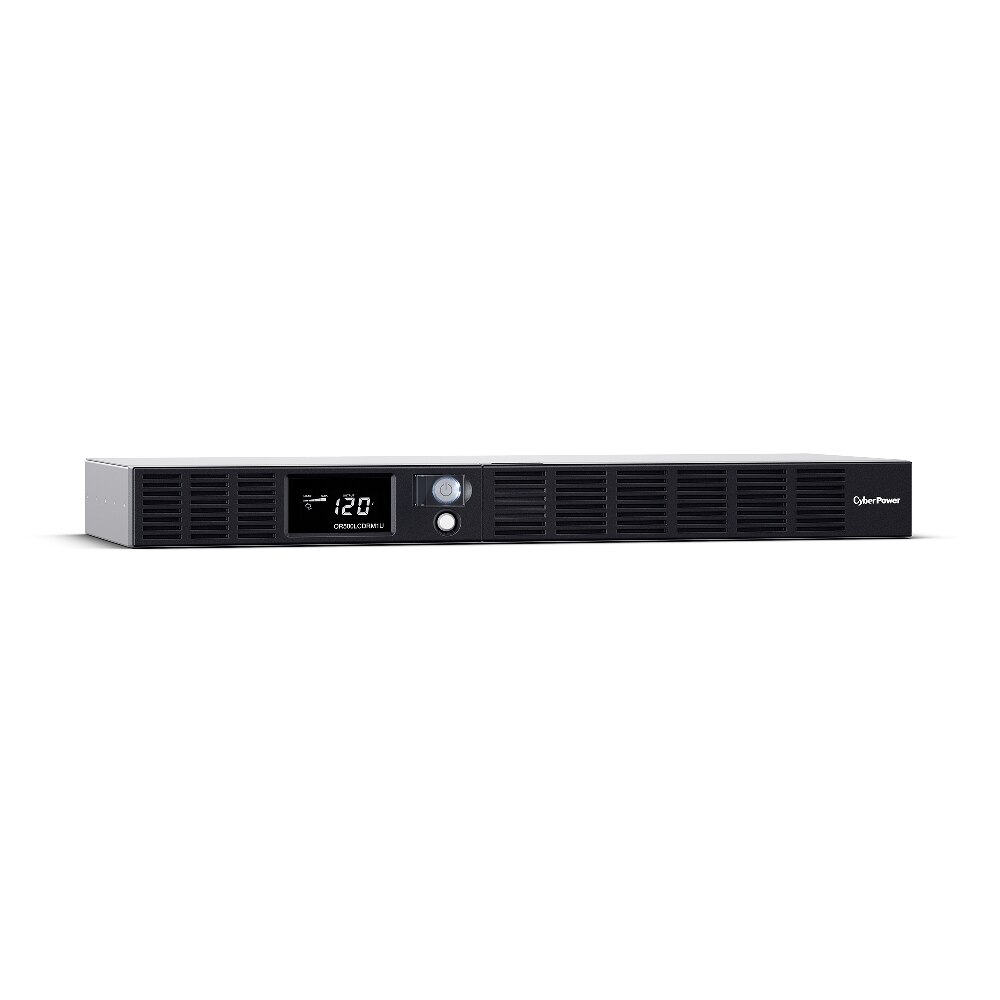

CyberPower Smart App LCD UPS, 500VA/300W, 6 Outlets, AVR, 1U Rackmount

CyberPower OR500LCDRM1U

Smart App LCD UPS, 500VA/300W, 6 Outlets, AVR, 1U Rackmount

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

GreenPower UPS Technology: Bypass Design

GreenPower UPS™ Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.

Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.

Automatic Voltage Regulation

Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.

How AVR Works in a Line Interactive UPS

A line interactive UPS includes an AVR autotransformer a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.

This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Automatic Voltage Regulation (AVR)

AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

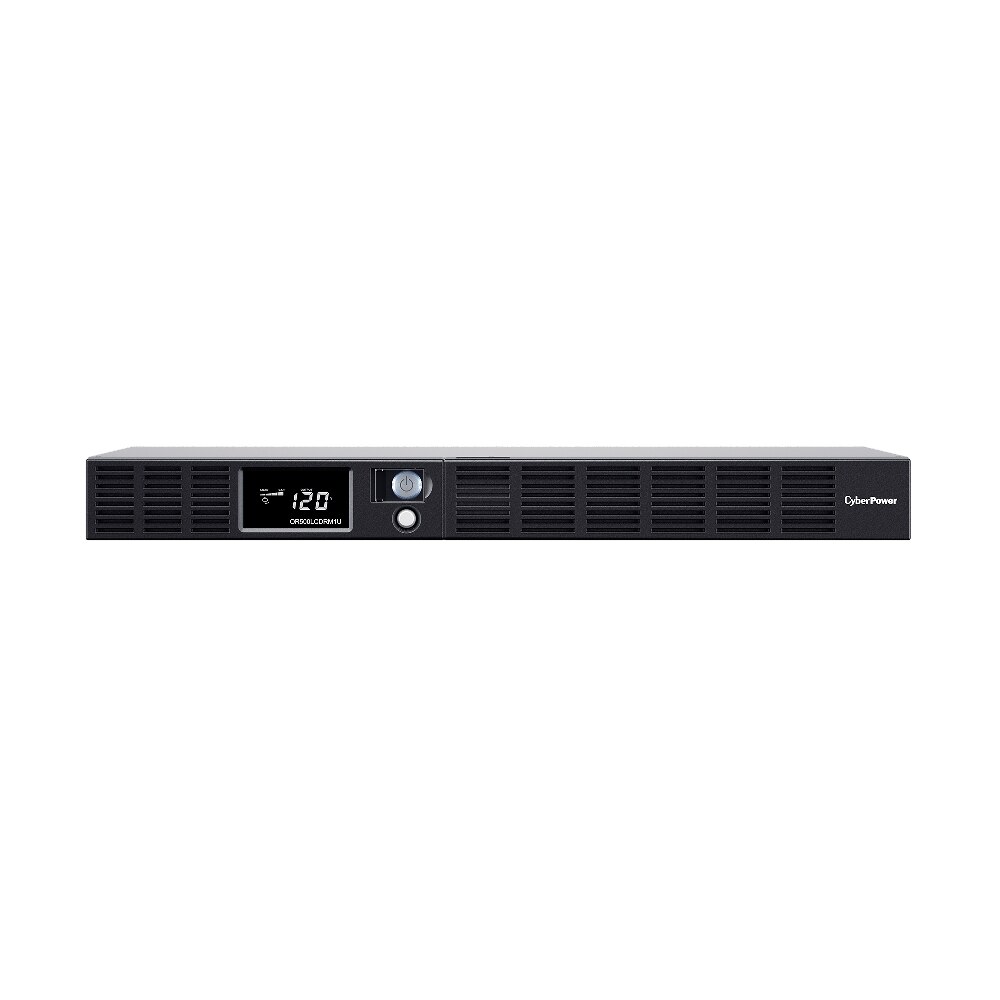

Multifunction LCD Screen

Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

Data Line Protection

Prevents power surges that travel through Ethernet lines from causing damage to electronics.

Line Interactive Topology

Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Simulated Sine Wave Output

Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.

ENERGY STAR

This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

GreenPower UPS™ Bypass Design

A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

PowerPanel® Business Software

Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.

Three-Year Warranty

CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee

CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

Features:

• Capacity: 500 VA / 300 W
• Topology: Line Interactive
• Waveform: Simulated Sine Wave
• Output: 120 VAC ± 10%
• Plug type & cord: NEMA 5-15P, 10 ft. cord

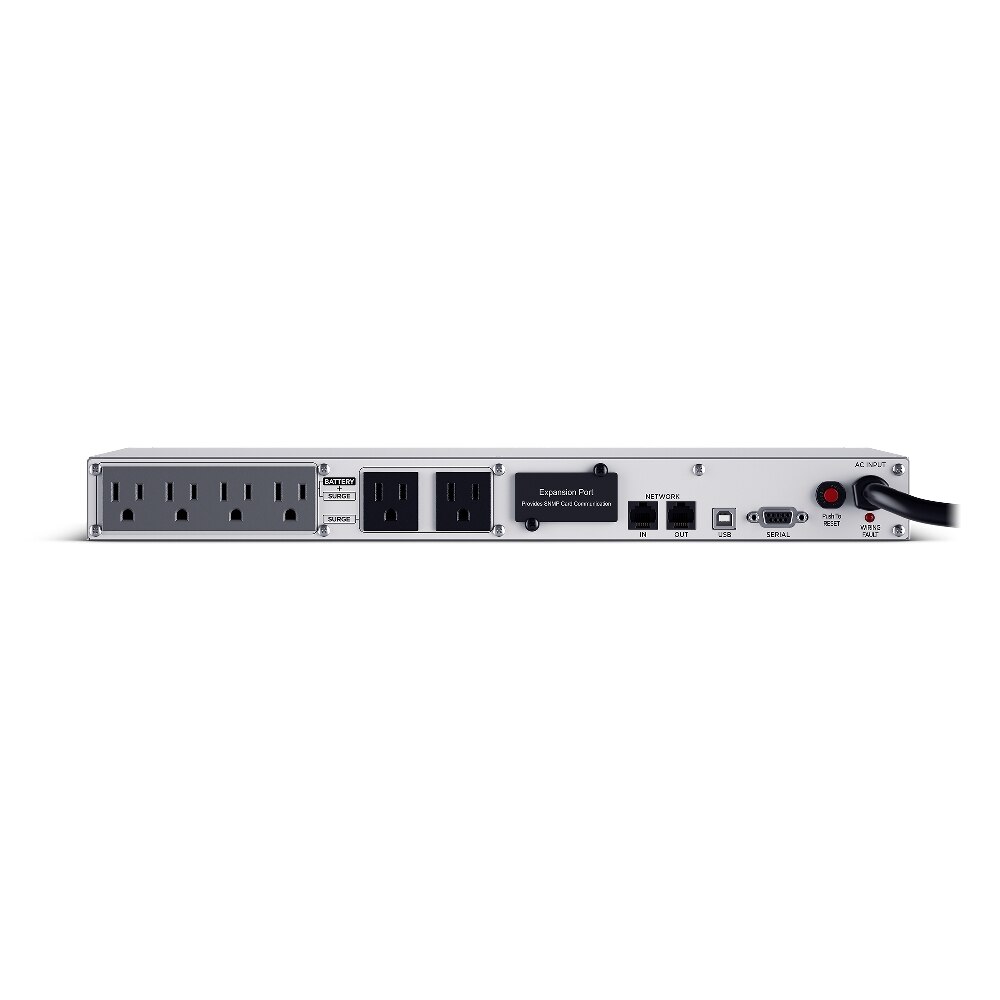

• Outlet types: 6 × NEMA 5-15R
• Communication: USB, Relay, SNMP
• Management software: PowerPanel® Business
• Remote management: Yes, with optional RMCARD205
• Warranty: 3 year
