Dinkle DIN Rail Terminal Block Screw Type UL 600V 30A 10-22AWG
- SKU: DK4N-BK
$1.40
- Manufacturer: Dinkle
Product Information

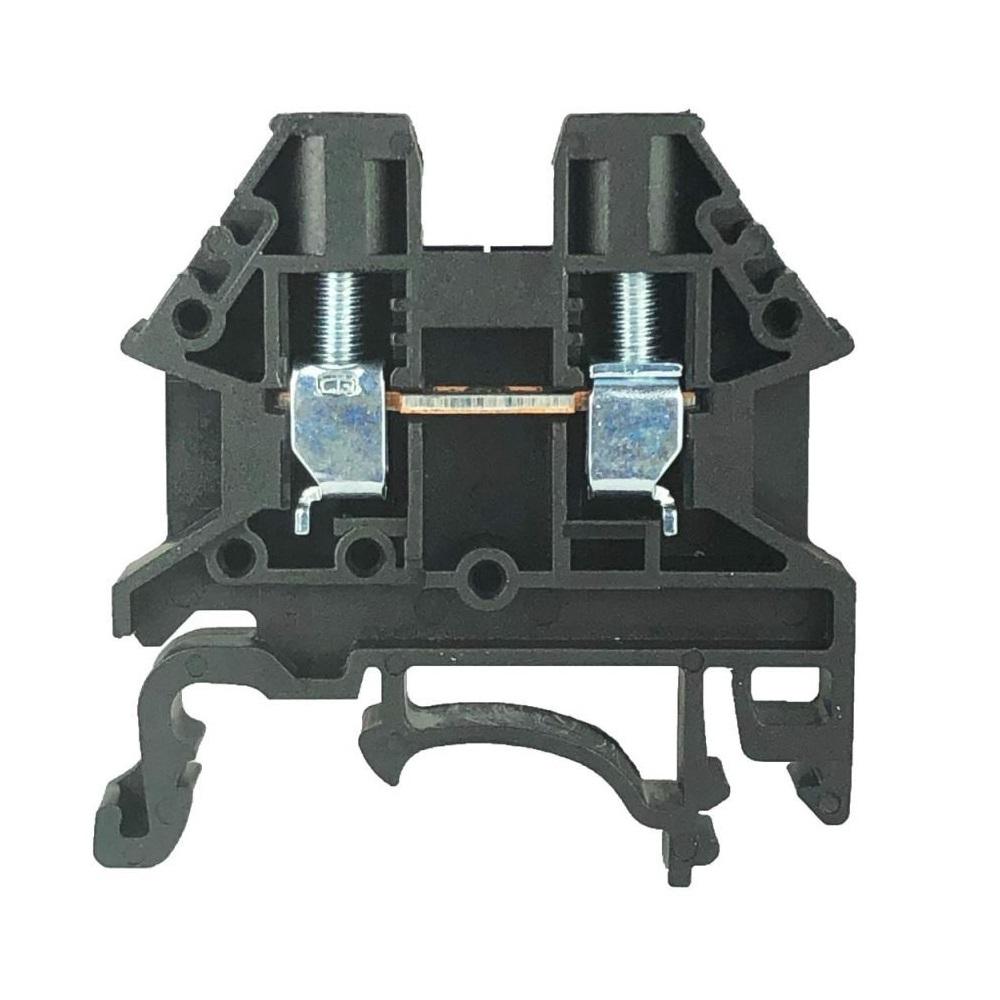

Dinkle DK4N-BK
DIN Rail Terminal Block Screw Type UL 600V 30A 10-22AWG
This DK4N-BK has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault. End cover DK4NC-GN. Partition DKNSPS-005. Jumper DSS4N-02P, DSS4N-03P, DSS4N-04P, DSS4N-05P, DSS4N-06P, DSS4N-07P, DSS4N-08P, DSS4N-09P, DSS4N-10P. Marking label TM27W.
Specifications
Specifications DK4N-BK
| Dimension | 0.24 x 1.59 x 1.56 inches |
| Weight | 1.48 lbs |
| Current Rating | 30 Amps |
| Gauge | 10.0 |
| Connector Type | Screw |
| Mounting Type | DIN Rail Mount |
| Voltage | 600 Volts |
| Conductor cross-section, solid(AWG/mm2) | UL 22-10, IEC 0.5-4 |
| Conductor cross-section, flexible(AWG/mm2) | UL 22-10, IEC 0.5-4 |
| Rated impulse withstand voltage | 6KV |
| Torque(N-m) | 0.6 |
| Srew | M3 |
| Wire strip length | 9-11mm |
| Insulating material | PA |
