Ubiquiti 48-Port 500W Managed PoE+ Gigabit Switches With SFP

(0) No Reviews yet
  • SKU: ES-48-500W
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 22 In Stock (updated live)
$899.00

Specifications ES-48-500W

Dimensions485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Weight6.1 kg (13.5 lb)
Total Non-Blocking Throughput70 Gbps
Switching Capacity140 Gbps
Forwarding Rate104.16 Mpps
Max. Power ConsumptionIncludes PoE Output 500W, Excludes PoE Output 64W
Power Method100-240VAC/50-60 Hz, Universal Input
Power SupplyAC/DC, Internal, 500W DC
LEDs Per PortRJ45 Data Ports PoE, Speed/Link/Activity

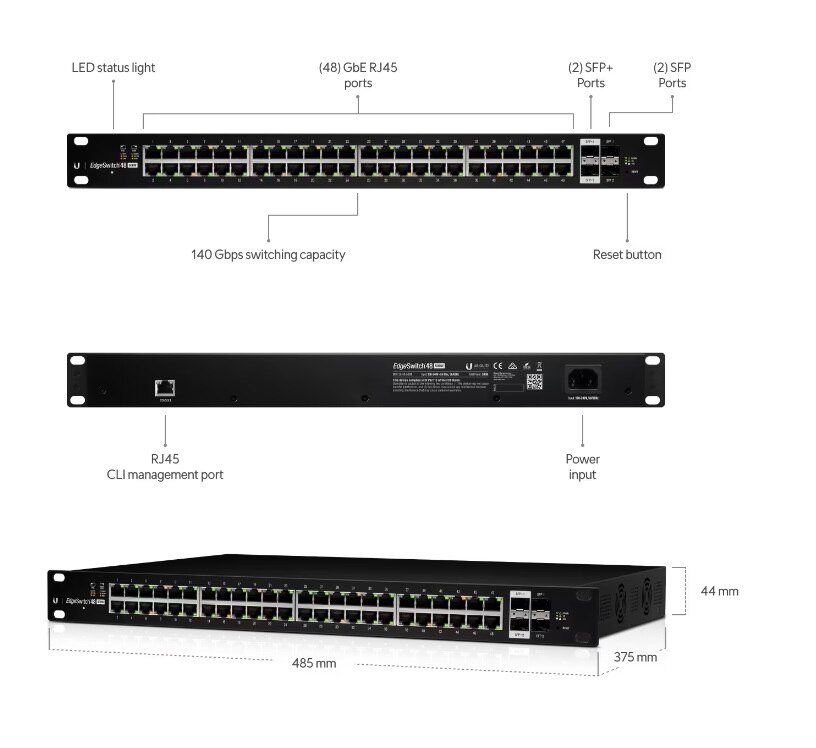

Networking Interfaces(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface(1) RJ45 Serial Port, Ethernet In/Out Band
CertificationsCE, FCC, IC
RackmountYes, 1U High
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300-019-1.4 Standard

Ubiquiti Networks ES-48-500W

Ubiquiti 48-Port 500W Managed PoE+ Gigabit Switches With SFP

Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

Powerful Enterprise Switch Models

The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

Enterprise-Class Features

The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support

The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
