  • FS 10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module for FS Switches

FS 10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module for FS Switches

(0)No Reviews yet
  • SKU: SFP-10GSR-85
  • Manufacturer: FS.Com
  • Data Sheet: Download
  • Quick Start Guide:Download
1 in stock
College Station
1 In stock

Product Information

FS.Com SFP-10GSR-85

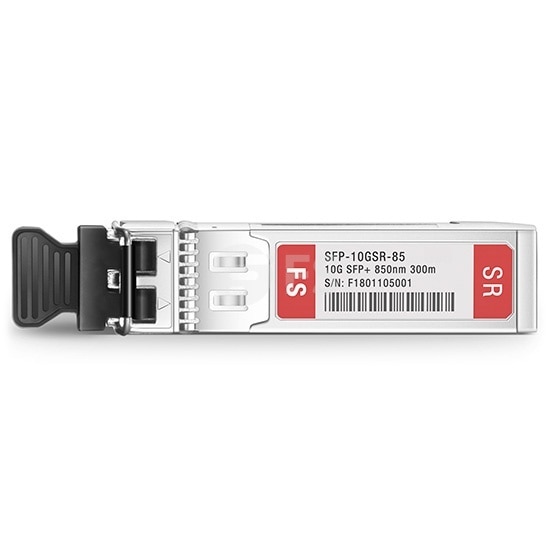

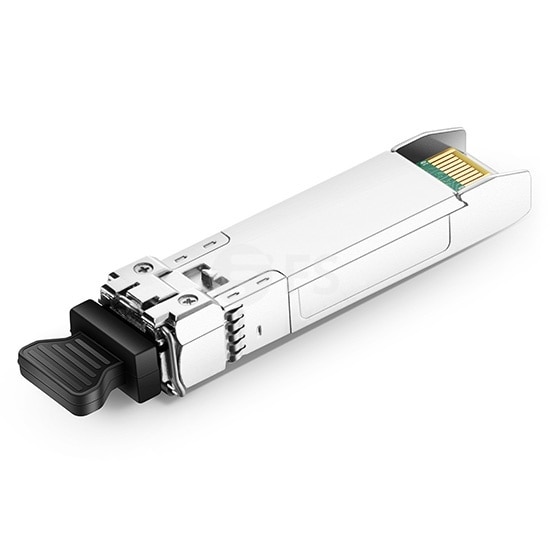

10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module for FS Switches

Cisco SFP-10G-SR compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

High Performance:

  • Low power consumption ≤0.6W, saving power
  • 50ms typical latency, MTBF over 1 million hours
  • -5℃~70℃ operating temperature
  • Stainless steel material, anti-corrosion and salt spray resistance

Wide Application:

  • Fully compatible with almost all Cisco devices
  • Widely used on 10G switches, routers, servers, NICs and other transmission equipment
  • Suitable for data center, enterprise wiring closet, radio & baseband unit and other environments

Protocols and Safety Standards:

  • IEC60825-1 Class 1 laser safety compliant
  • Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant
  • Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, CPRI, eCPRI


  • VCSEL+PIN, Low Power Consumption ≤0.6W (Typical)
  • Fully Compatible with 200+ Vendors
  • EMC Support, Anti Electro-Static Discharge and Radiation Resistant
  • Hot Pluggable SFP+ MSA Compliant
  • FS BOX - Support Real-time Encoding
  • Class 1 Laser Safety


Specifications SFP-10GSR-85

Cisco CompatibleSFP-10G-SR
Form FactorSFP+
Max Data Rate10.3125Gbps
Max Cable Distance300m@OM3/400m@OM4

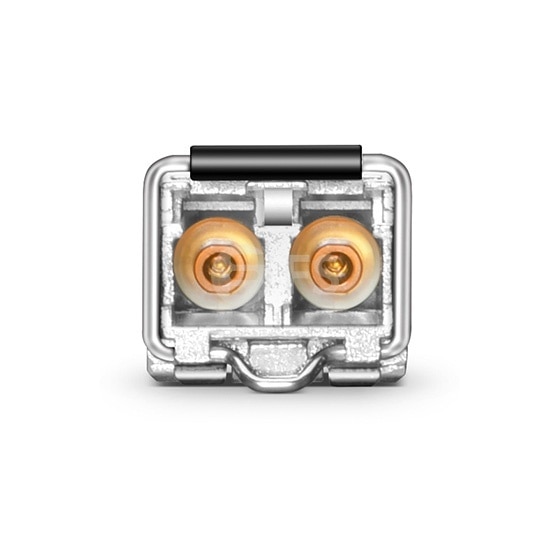

ConnectorLC Duplex
Transmitter TypeVCSEL
Receiver TypePIN
Temperature Range-5 to 70°C (23 to 158°F)
TX Power-7.3~-1dBm
Receiver Sensitivity< -11.1dBm
Typical Power Consumption≤0.6W
Receiver Overload0.5dBm
Bit Error Ratio (BER)1E-12
Extinction Ratio>3dB
EMC (Electro Magnetic Compatibility)Supported
MTBF1,000,000 Hours
ProtocolsIEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Warranty5 Years
Weight0.075 lbs
Dimensions (W x D x H)0.52" × 2.22" × 0.33" in
